Power Steering Oil Pump: Components

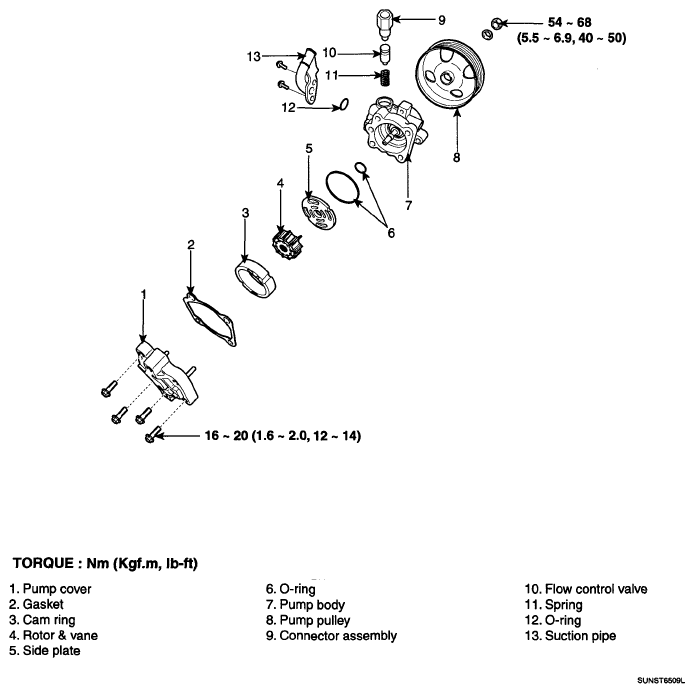

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
G05187133Courtesy of KIA MOTORS AMERICA, INC.
