Solenoid Valve: Inspection

If the value is out of specification according to the chart below, remove the valve body cover.

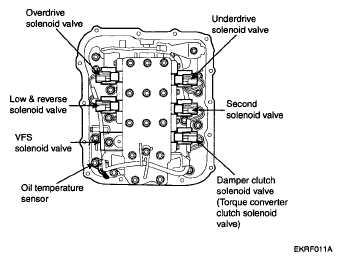

Fig 1: Identifying Solenoid Value Locations
Courtesy of KIA MOTORS AMERICA, INC.
Measure the resistance again after disconnecting solenoid valve connector.
Specification (20°C):

2.5 ~ 3.5 Ω (LR, 2ND, UD, OD, TCC)

Fig 2: Measuring Resistance At Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.

If the value is out of specification replace the solenoid valve.

SOLENOID VALVE PIN SPECIFICATION

Fig 3: Identifying Solenoid Valve Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
