Input Shaft Speed Sensor
Type: Hall sensor
Current consumption: 22mA (MAX.)
Sensor body and sensor connector have been unified as one.

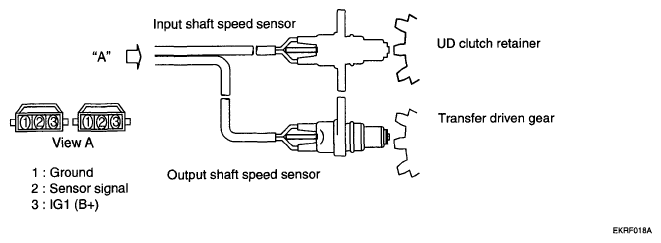

Fig 1: Identifying Input Shaft Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
