Shift Lever: Components

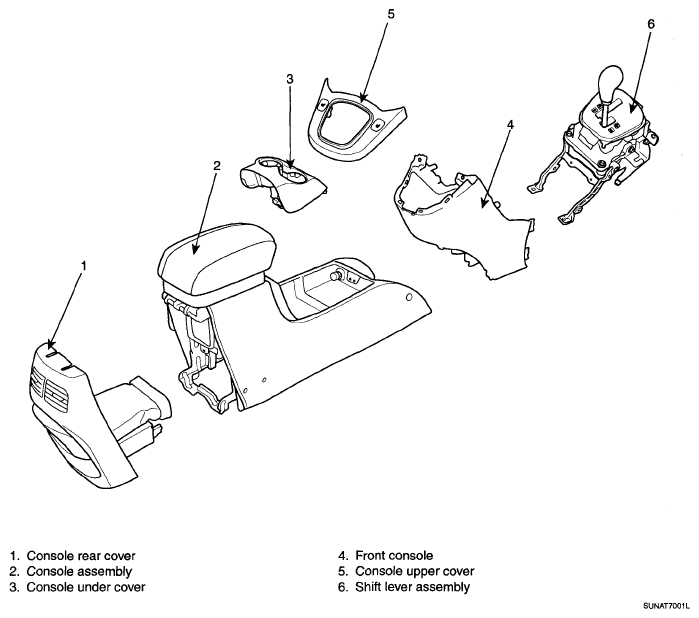

Fig 1: Identifying Shift Lever Components
G05186525Courtesy of KIA MOTORS AMERICA, INC.
