Transaxle Oil Temperature Sensor: Inspection

  1. Remove the oil temperature sensor (A).
    Fig 1: Identifying Oil Temperature Sensor Location
    G05186514Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure the resistance between the terminal 1 and 2 of the sensor connector.
    RESISTANCE REFERENCE

    Temp. [°C (°F)] Resistance (KΩ)
    0 (32) 18.6
    100 (212) 0.63

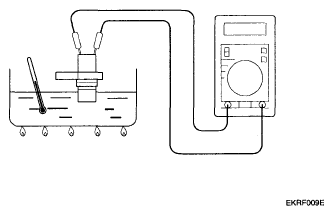

    Fig 2: Measuring Resistance Between Terminal 1 And 2 Of Sensor Connector
    G05186515Courtesy of KIA MOTORS AMERICA, INC.
  3. If the value is out of the specification, replace the oil temperature sensor.
