Transaxle Oil Temperature Sensor: Replacement

  1. Remove the automatic transaxle assembly.
  2. Remove the valve body cover (refer to AUTOMATIC TRANSAXLE ).
  3. Disconnect the oil temperature sensor connector.
  4. Remove the oil temperature sensor (B), loosening the mounting bolt (A).

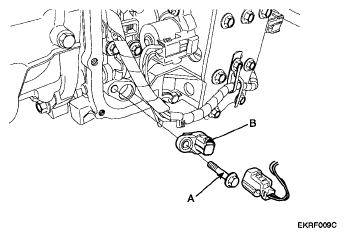

    Fig 1: Identifying Oil Temperature Sensor And Mounting Bolt
    G05186513Courtesy of KIA MOTORS AMERICA, INC.
  5. Replace the sensor with the new one and reassemble the rest of the parts.
