Transaxle Range (Tr) Switch: Inspection
- Check for the starter motor when the ignition switch is at 'START position and the shift lever at 'P' or 'N' range.
- Check for the rear lamp when the ignition switch if it does not work properly.
- Check for the inhibitor switch if it does not work properly.
- If the inhibitor switch is not fixed in a proper position, reassemble it in the right position.
- Recheck 1 and 2 procedures.
- Using a scan tool, confirm the DTCs.
- Disconnect the battery (-) terminal and the inhibitor switch.

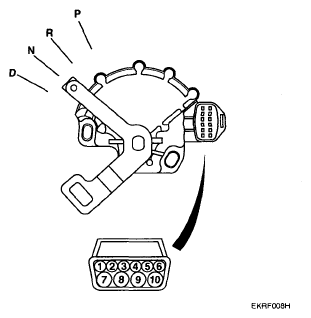

- Check for continuity between terminals at the switch connector.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.

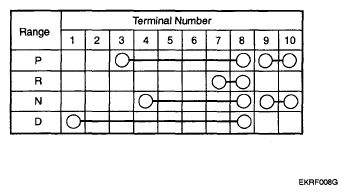

- If there is not continuity between the terminals in the table (Fig 1) above for each switch position, replace the inhibitor switch.
