Transaxle Range (Tr) Switch: Replacement

  1. Pull up the parking brake.
  2. Position the shift lever in 'N' range.
  3. Remove the air cleaner assembly.
  4. Remove the battery.
  5. Remove the battery tray.
  6. Remove the inhibitor switch connector.
  7. Remove the shift cable mounting nut (A).

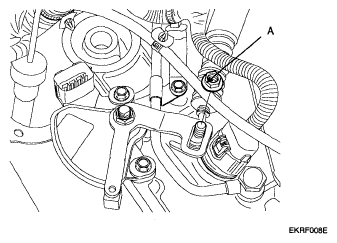

    Fig 1: Identifying Shift Cable Mounting Nut
    G05186518Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the inhibitor switch loosening the mounting bolts.
  9. Referring to INSPECTION , check for continuity. If there is an error, replace the inhibitor switch.

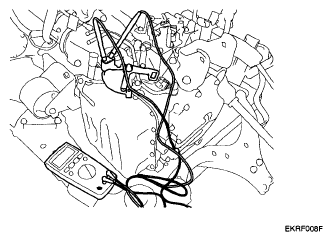

    Fig 2: Checking Inhibitor Switch Continuity
    G05186519Courtesy of KIA MOTORS AMERICA, INC.
  10. After tightening the shift cable mounting nut, connect the inhibitor switch.
  11. Install the battery, battery tray and the air cleaner assembly.
