Body Control Module: Service and Repair

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the crashpad lower panel.

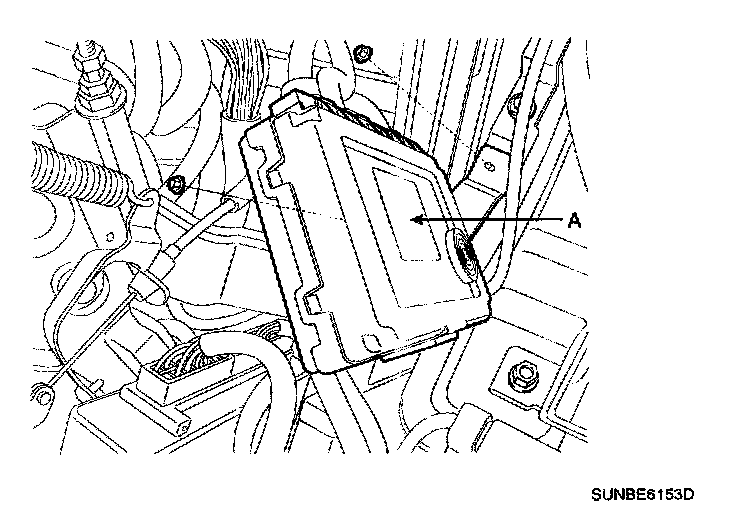

3. Remove the body control module (A) after loosening 2 nuts and disconnecting connector.

INSTALLATION
1. Install the body control module.
2. Install the crash pad lower panel.
