Scan Tool Check

SCAN TOOL CHECK
1. Turn the ignition switch OFF.

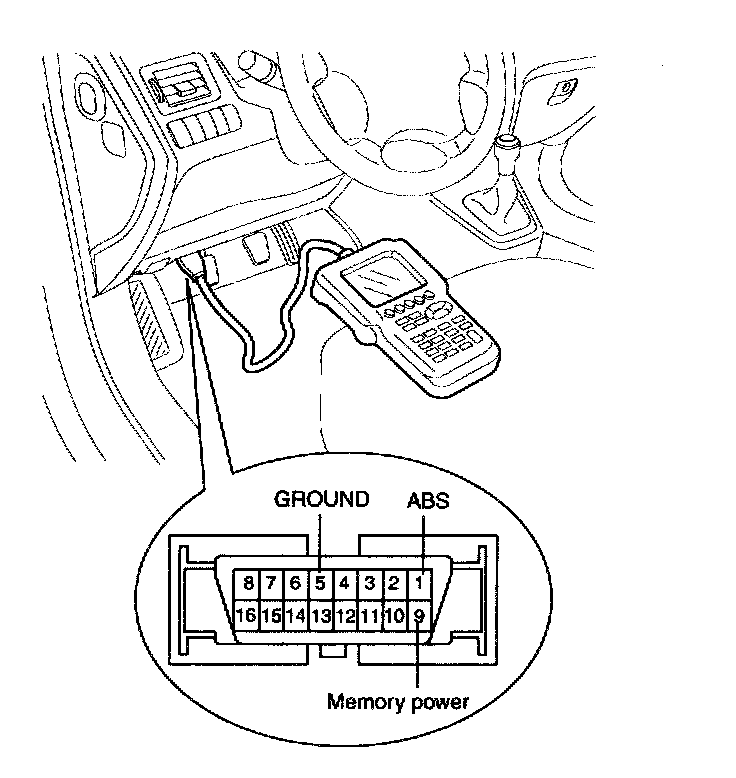

2. Connector the scan tool to the 16P data link connector located the driver's side kick panel.





3. Turn the ignition switch ON.
4. Check for diagnostic trouble using the scan tool
5. After completion trouble of the repair or correction of the problem, erase the stored fault codes the clear key on the scan tool.
6. Disconnect the scan tool from the 16P data link connector.
