Humidity Sensor: Service and Repair

HUMIDITY SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.
3. Disconnect the humidity sensor connector.

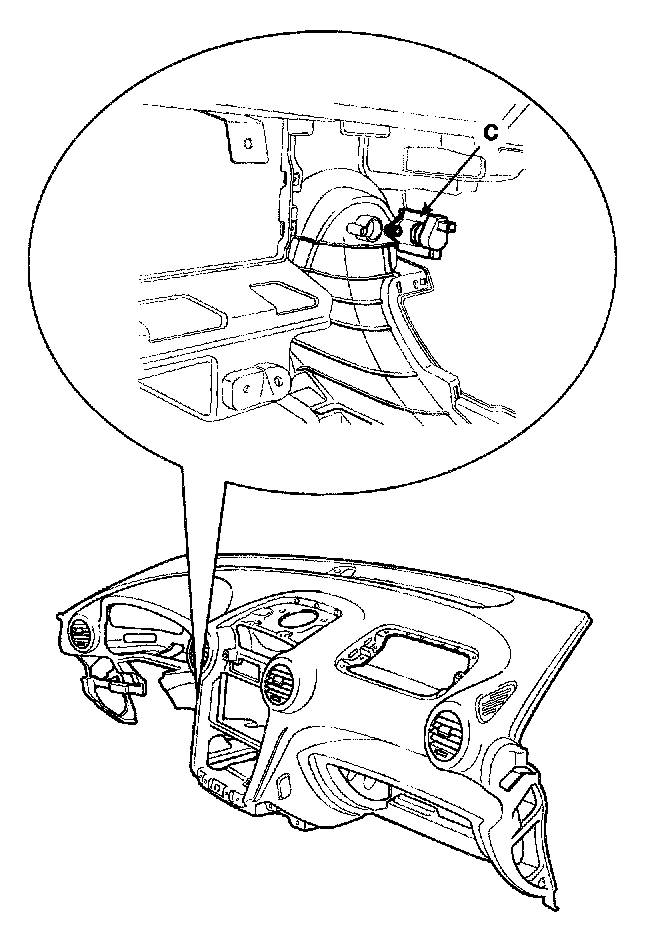

4. Loosen 2 screws and then remove the humidity sensor (C).
5. Installation is the reverse order of removal.
