Oil Temperature Sensor For ECM: Testing and Inspection

CVVT OIL TEMPERATURE SENSOR(OTS)

INSPECTION







FUNCTION AND OPERATION PRINCIPLE

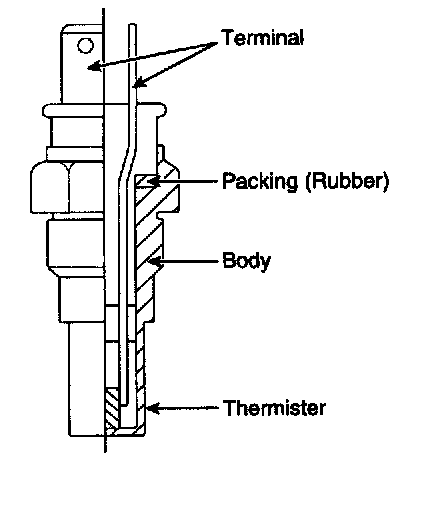

The CVVT Oil Temperature Sensor (OTS) is a negative coefficient thermistor used by the PCM ti measure engine oil temperature for the purpose of adjusting CVVT calculations.

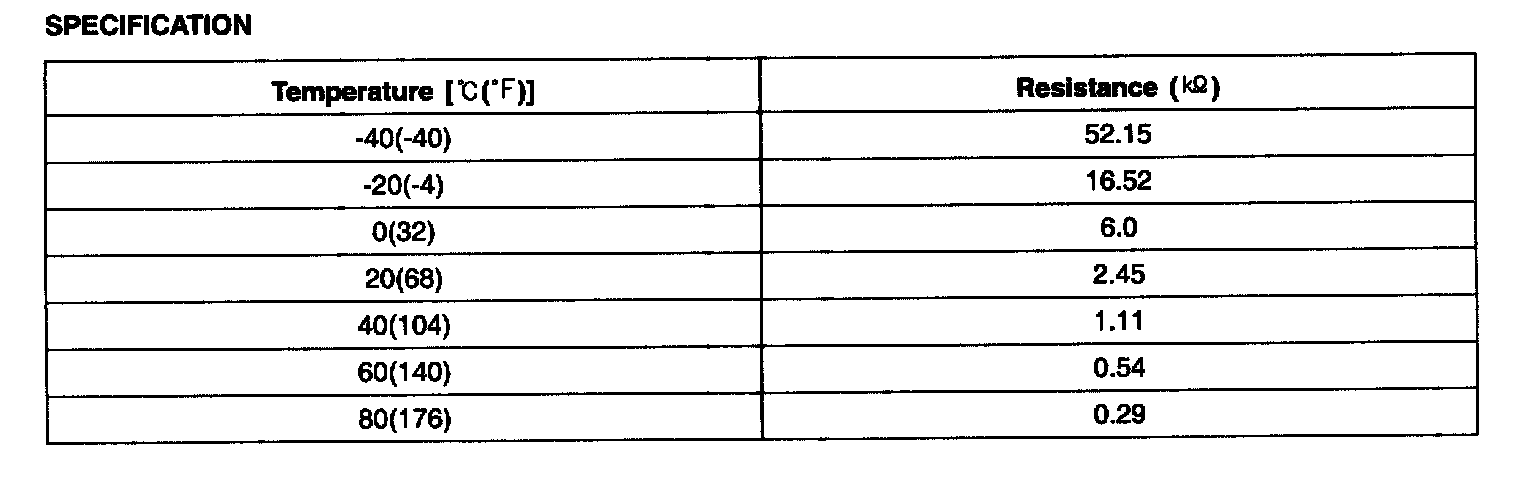

Specification:

SPECIFICATION

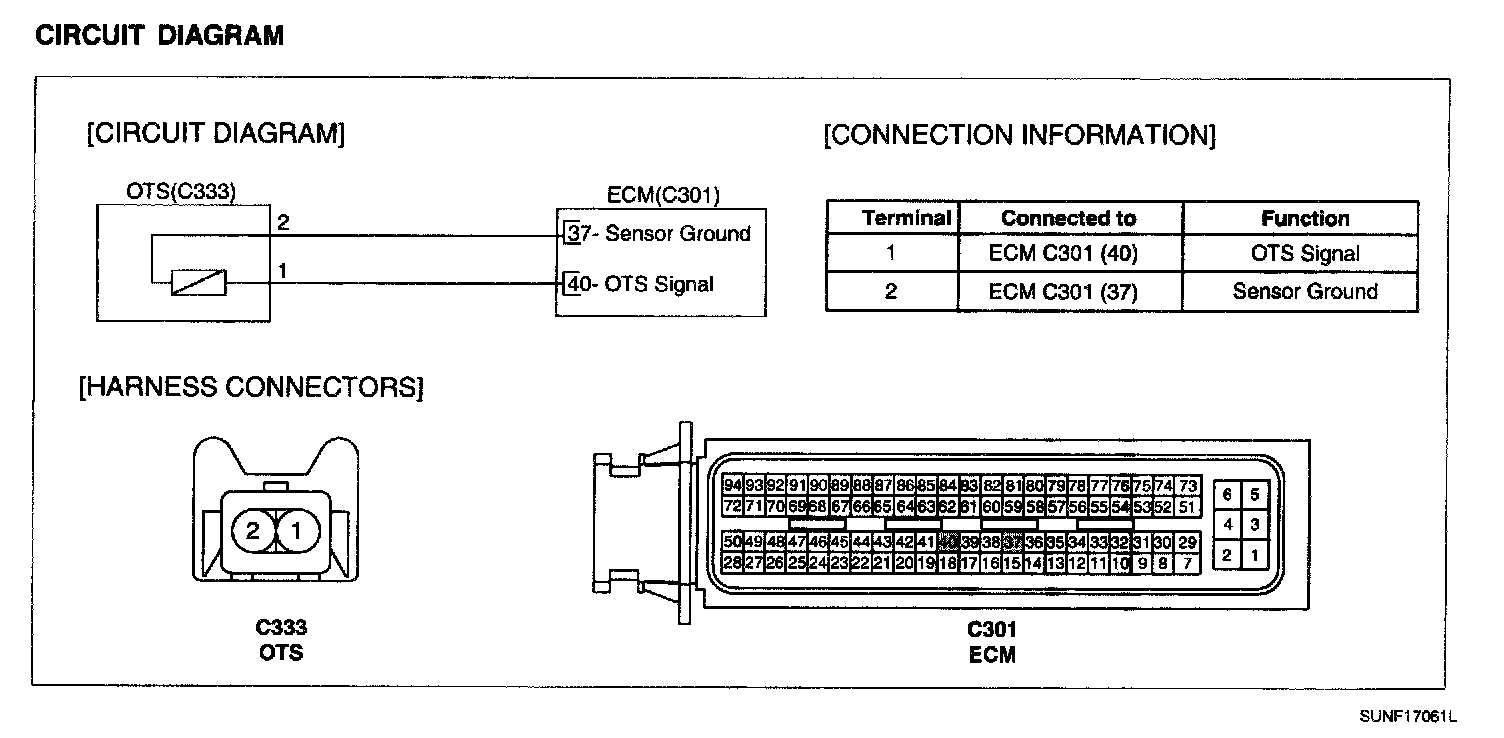

Circuit Diagram:

CIRCUIT DIAGRAM

COMPONENT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect OTS connector.

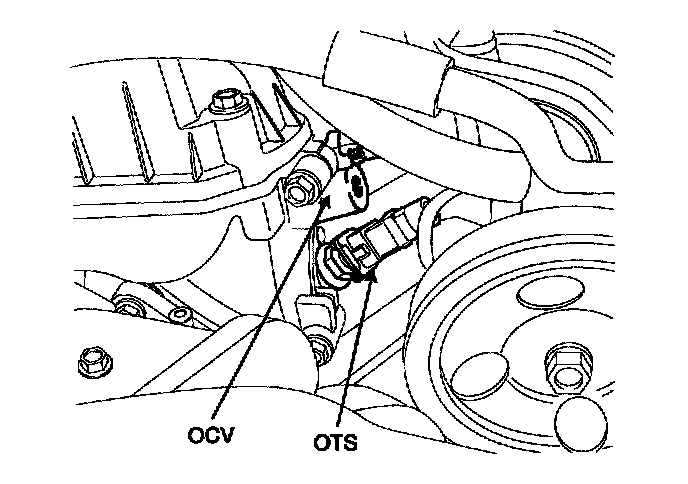

3. Remove the OTS.
4. After immersing the thermistor of the sensor into water (or engine coolant), measure resistance between OTS terminals 1 and 2.
5. Check that the resistance is within the specification.

Specification: Refer to SPECIFICATION.
