Symptom Related Diagnostic Procedures

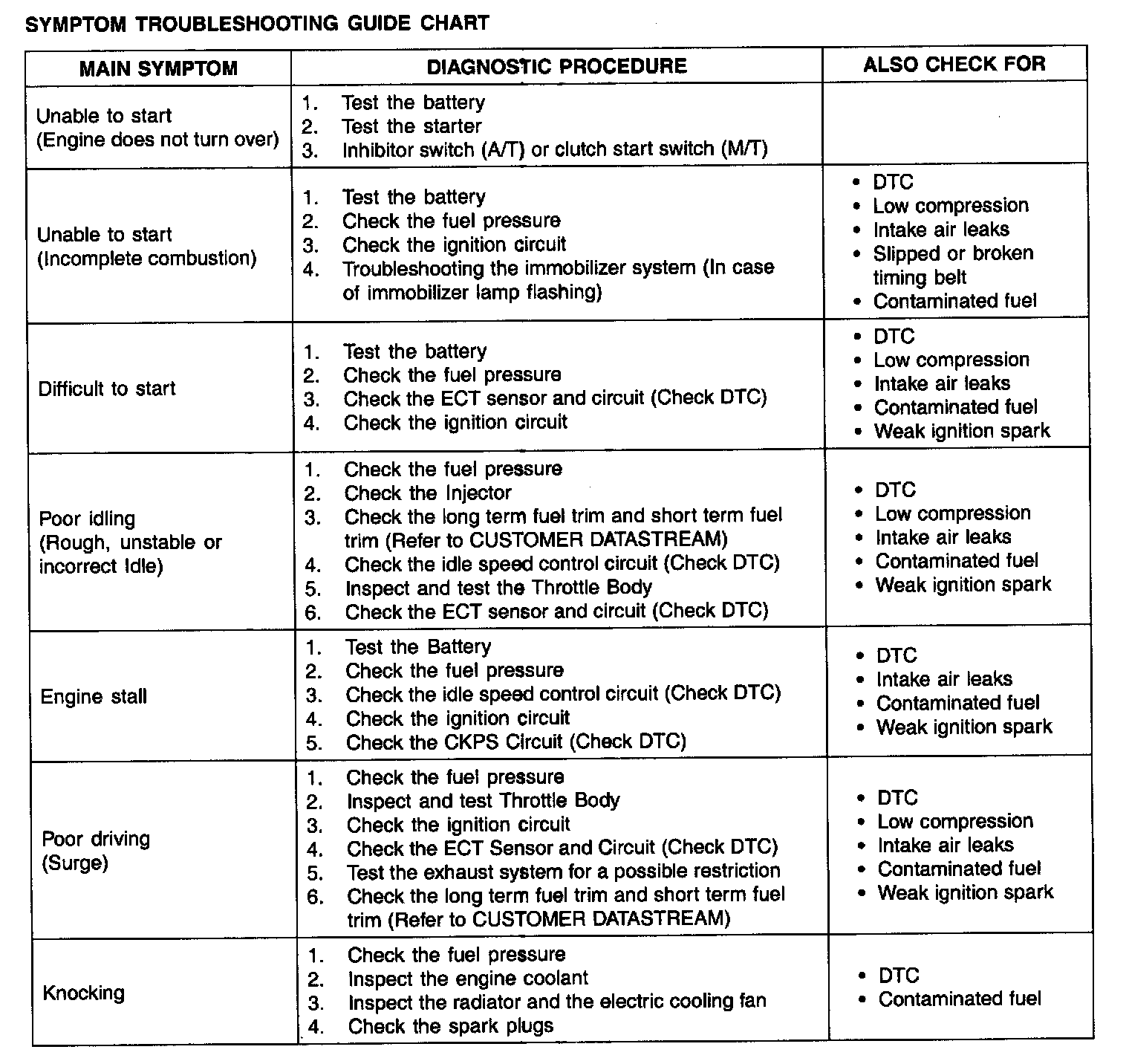

Symptom Troubleshooting Chart Part 1:

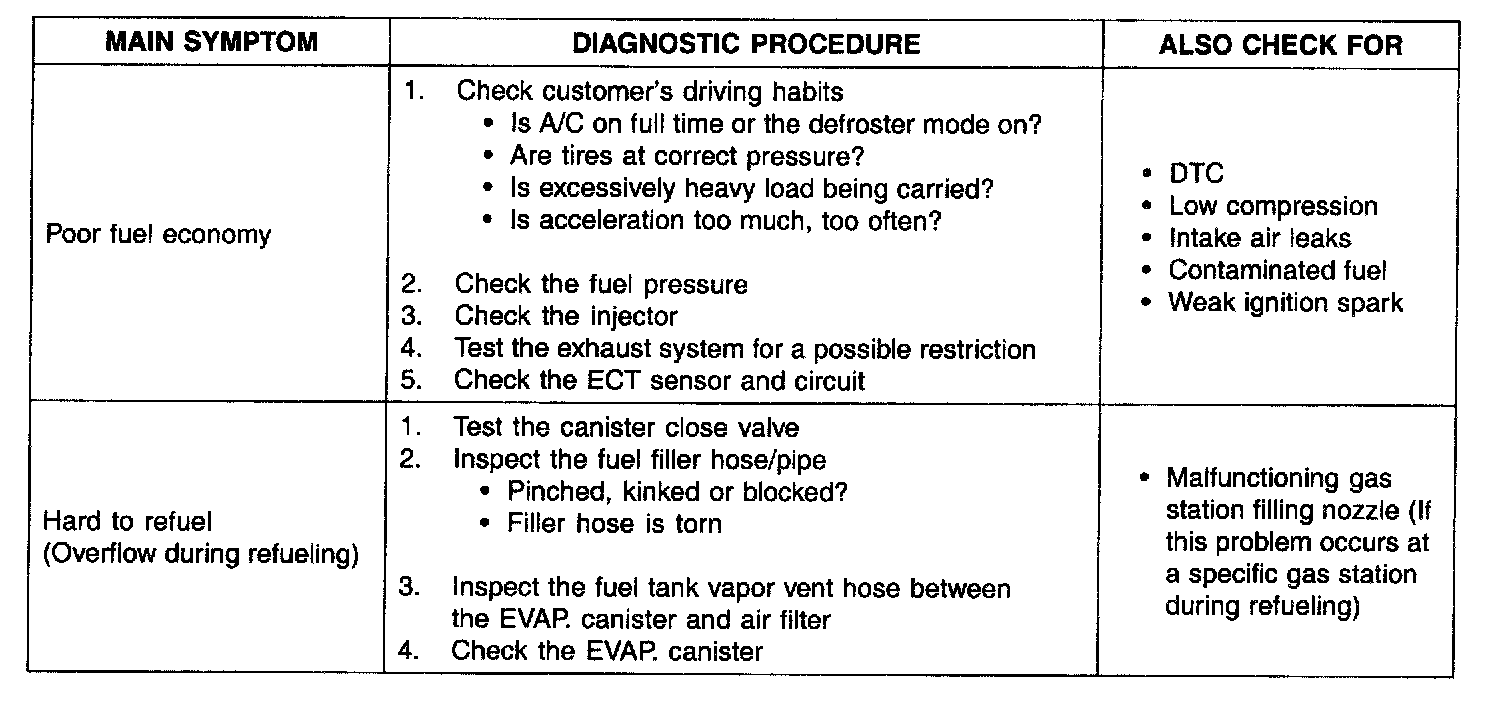

Symptom Troubleshooting Chart Part 2:
