Transmission Position Sensor/Switch: Description and Operation

TRANSAXLE RANGE (TR) SWITCH

DESCRIPTION

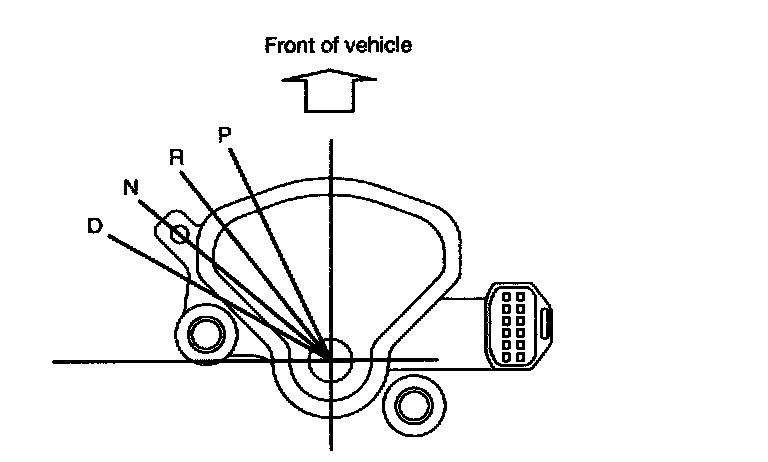

INHIBITOR SWITCH
^ Type: Rotary contact type
^ Range of temperature: -40°C - 145°C(-40°F-293°F)

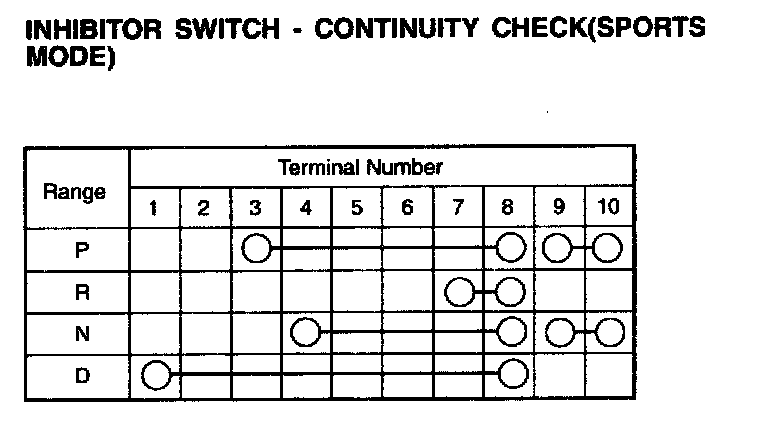

Inhibitor Switch - Continuity Check(Sports Mode):
