Engine Control Module

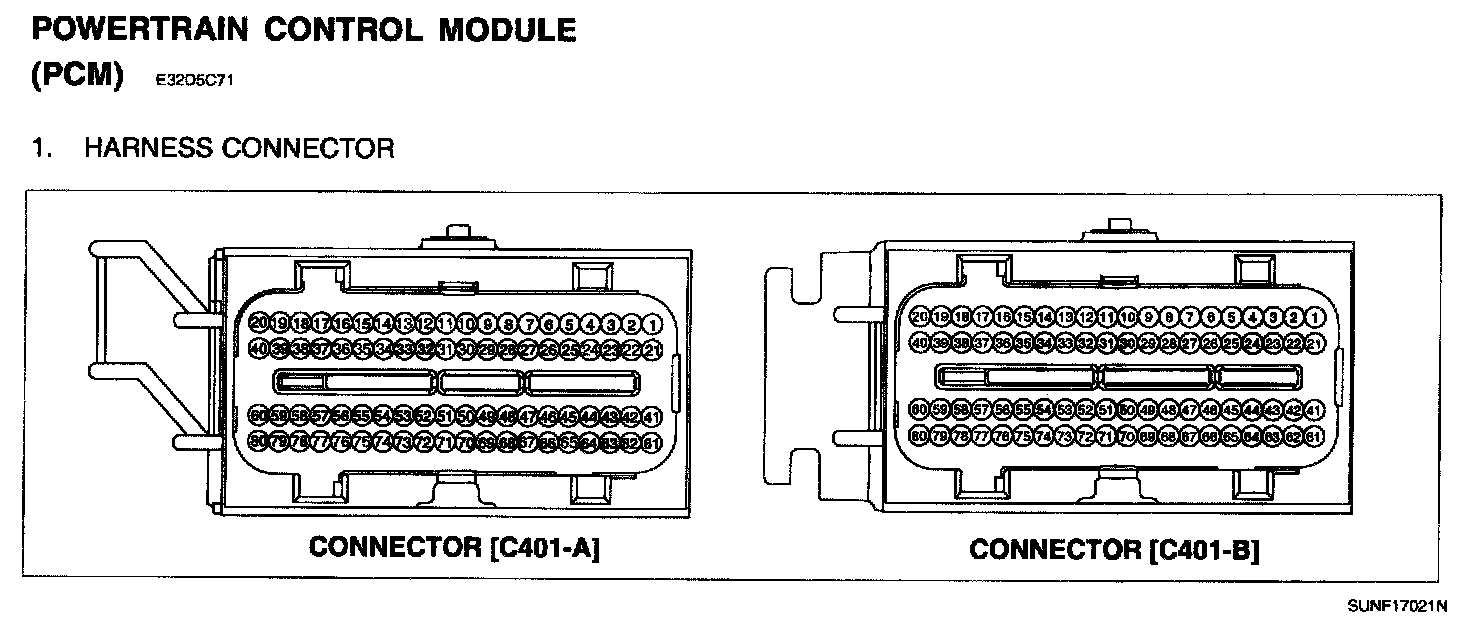

PCM Harness Connector:
PCM HARNESS CONNECTOR

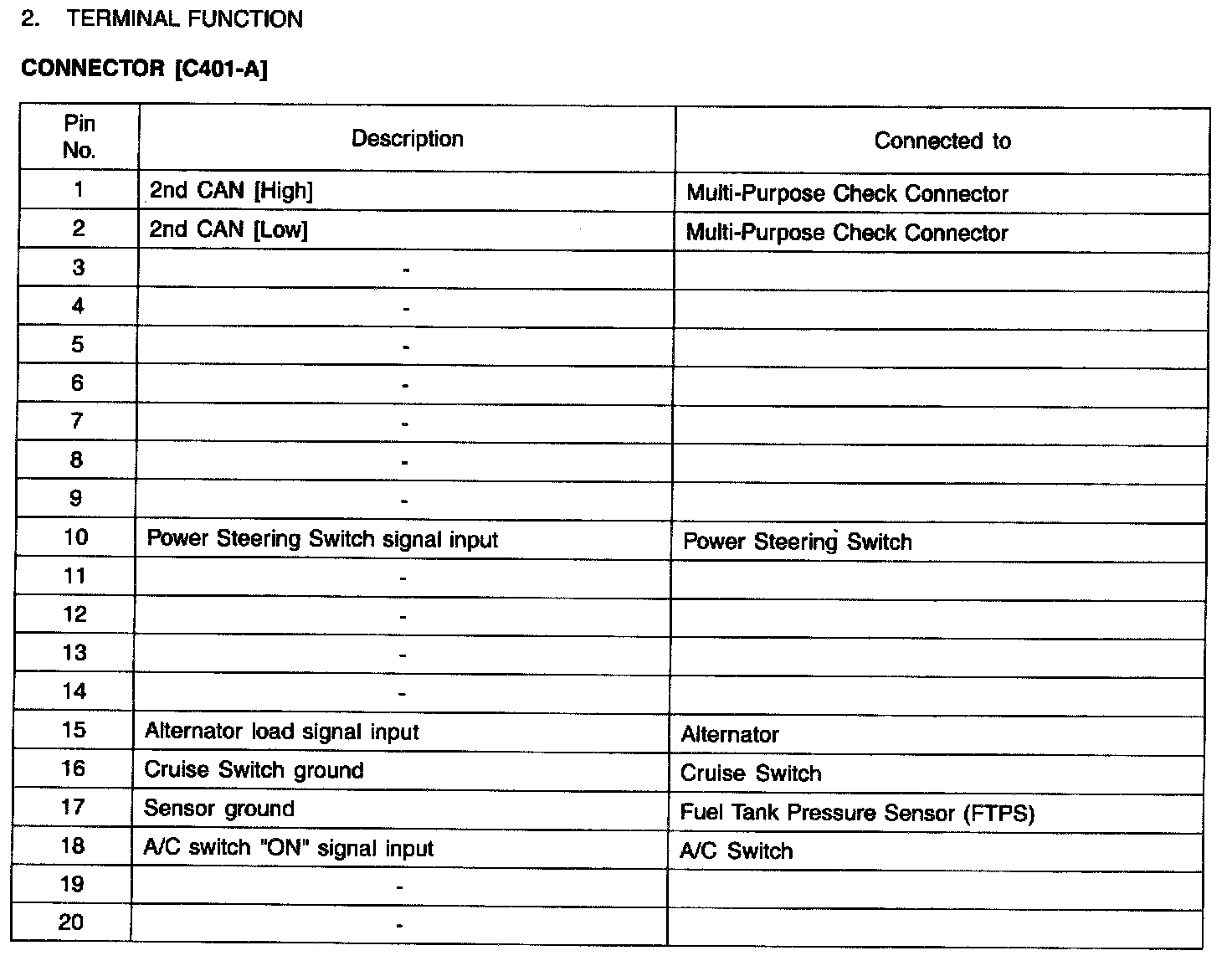

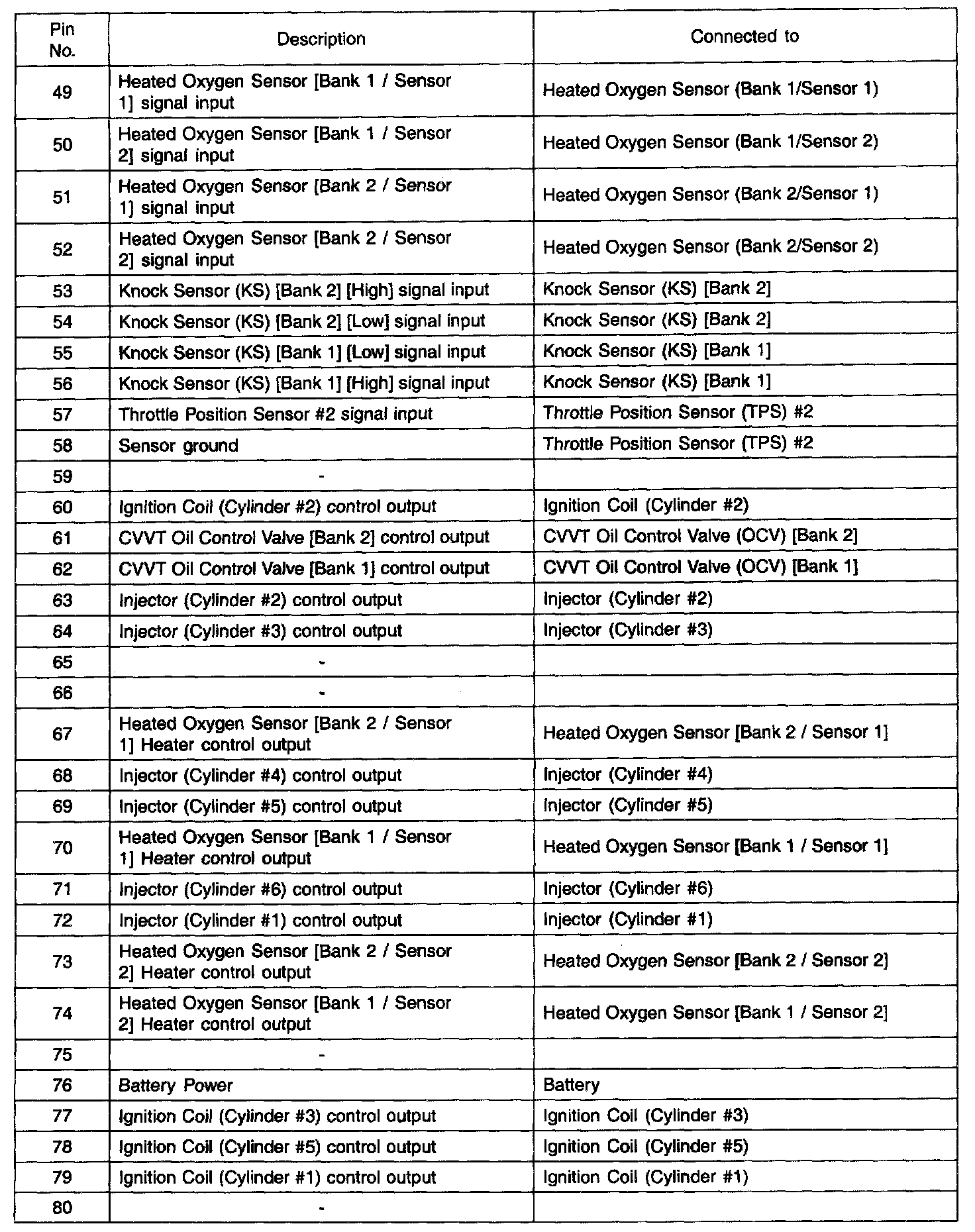

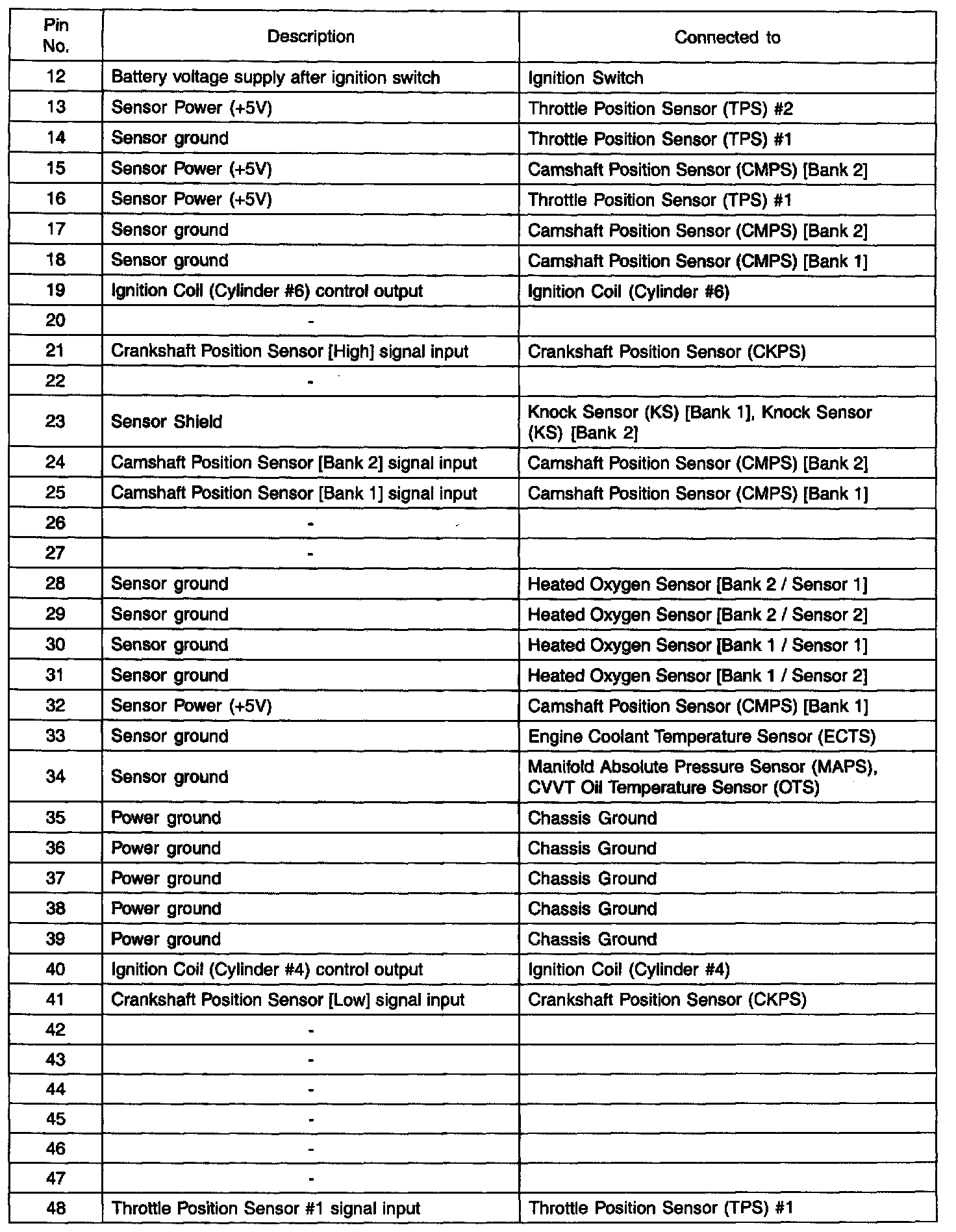

PCM Terminal Function - C401-A (Part 1):

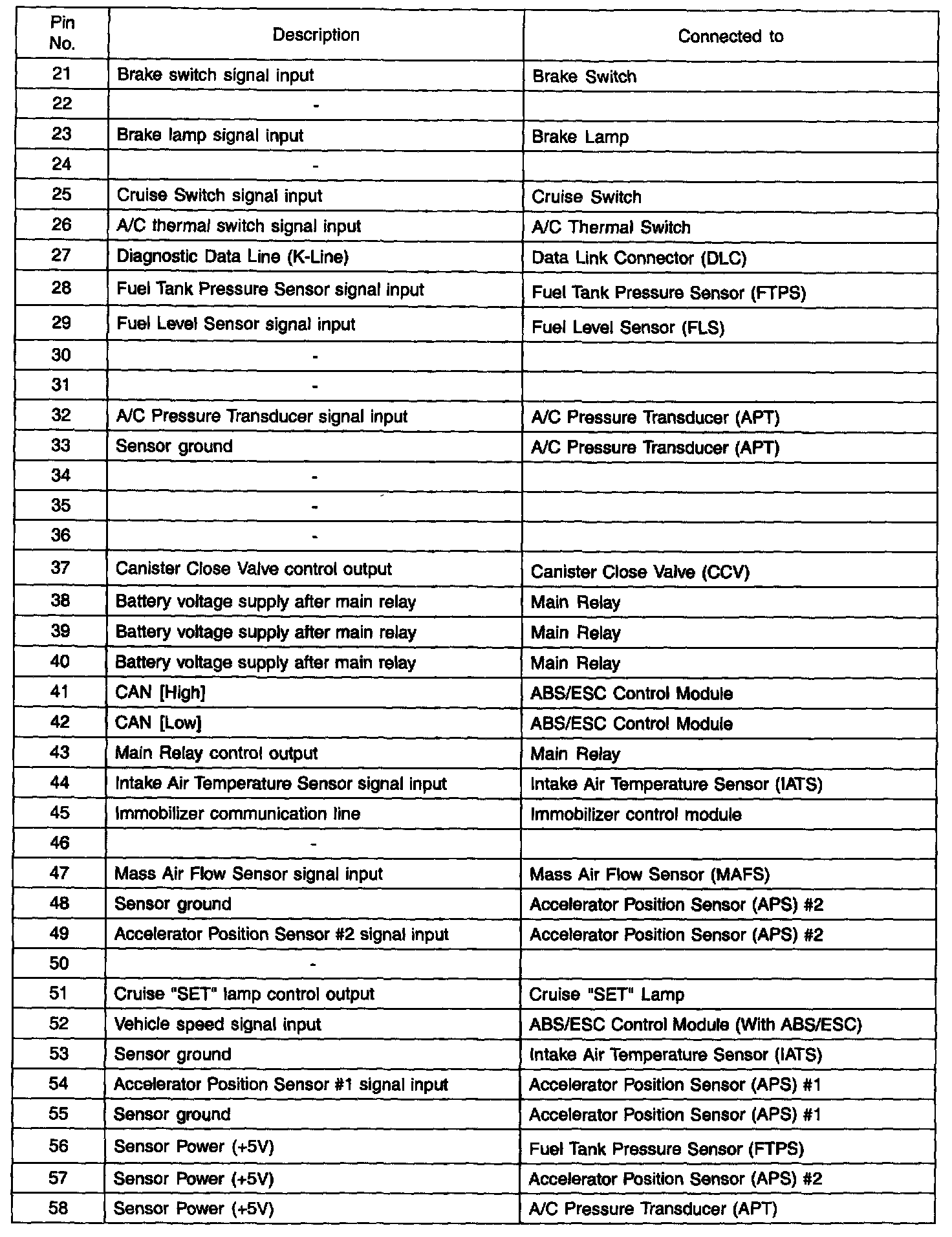

PCM Terminal Function - C401-A (Part 2):
PCM Terminal Function - C401-A (Part 3):
PCM TERMINAL FUNCTION - CONNECTOR [C401-A]

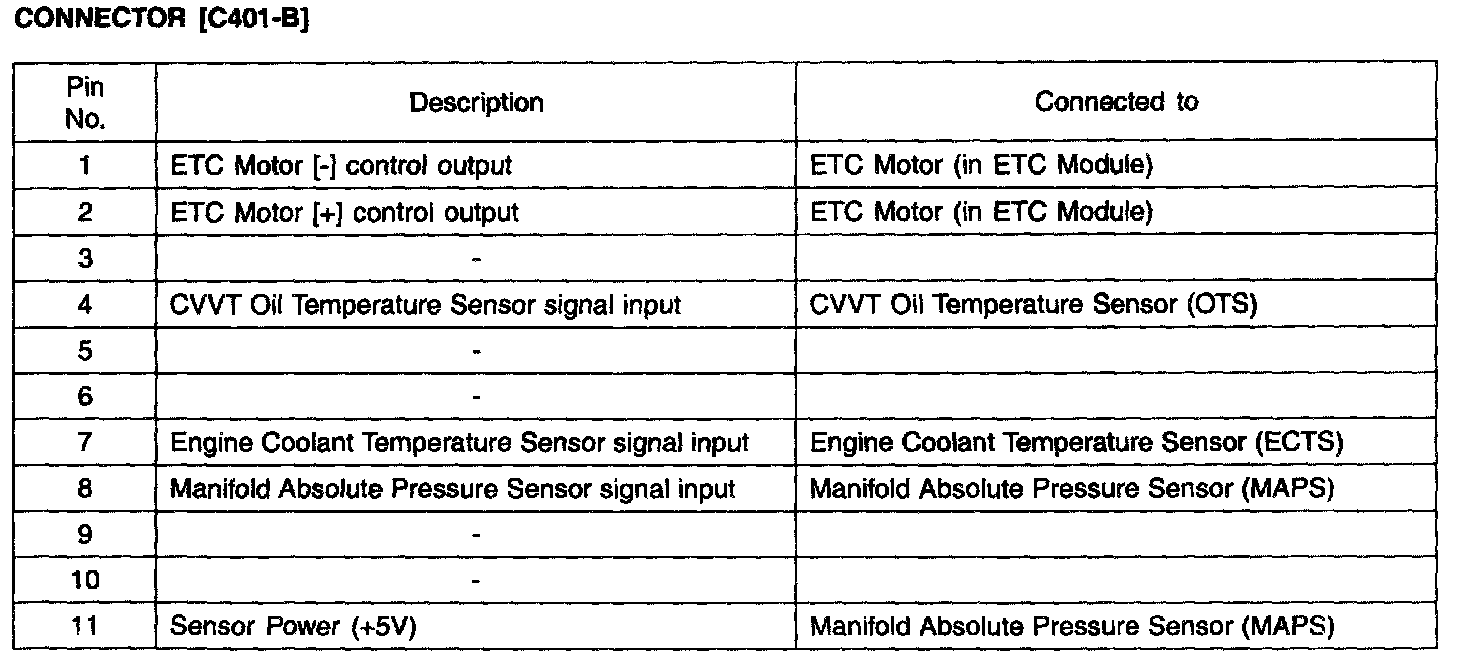

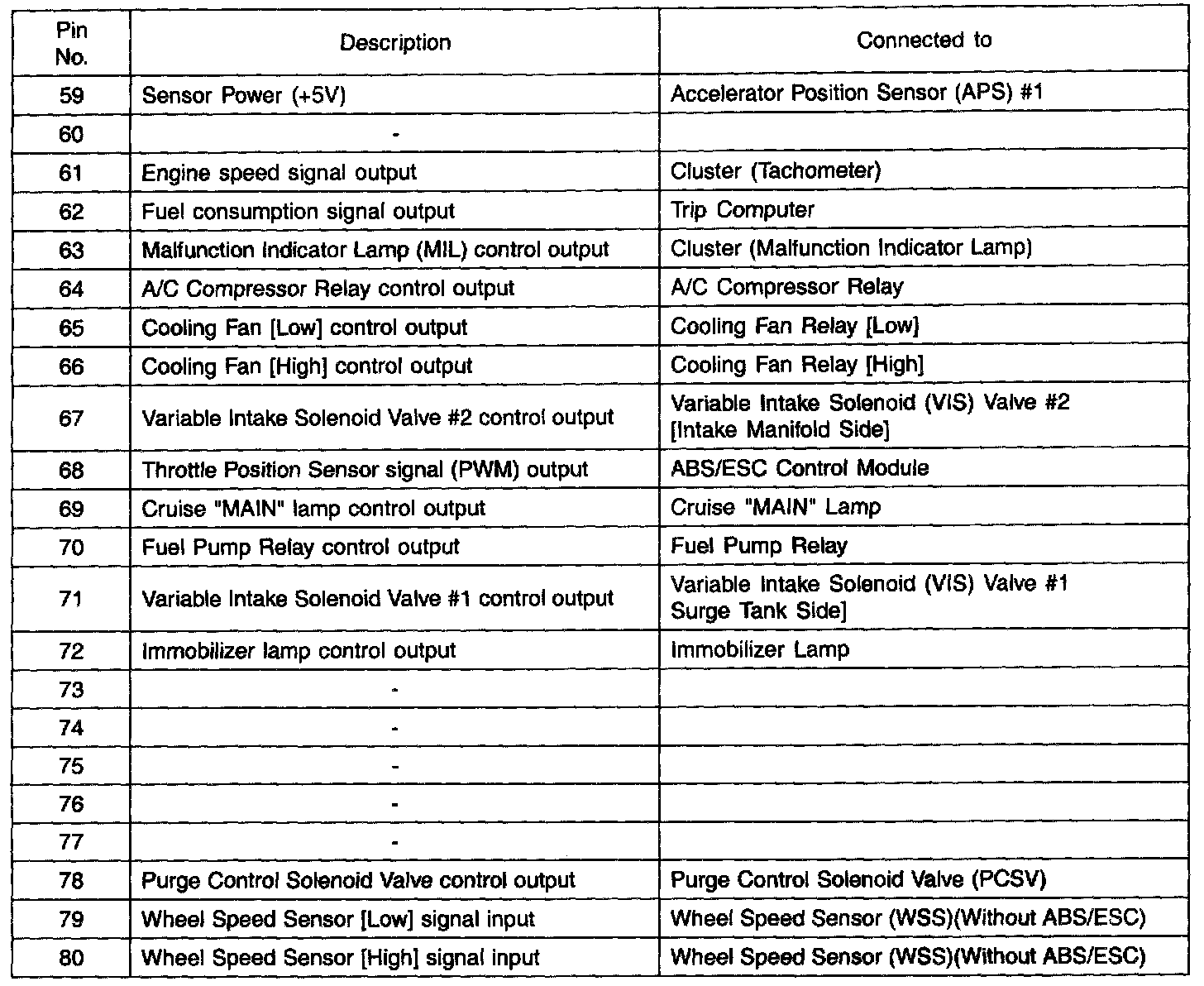

PCM Terminal Function - C401-B (Part 1):
PCM Terminal Function - C401-B (Part 2):
PCM Terminal Function - C401-B (Part 3):
PCM TERMINAL FUNCTION - CONNECTOR [C401-B]

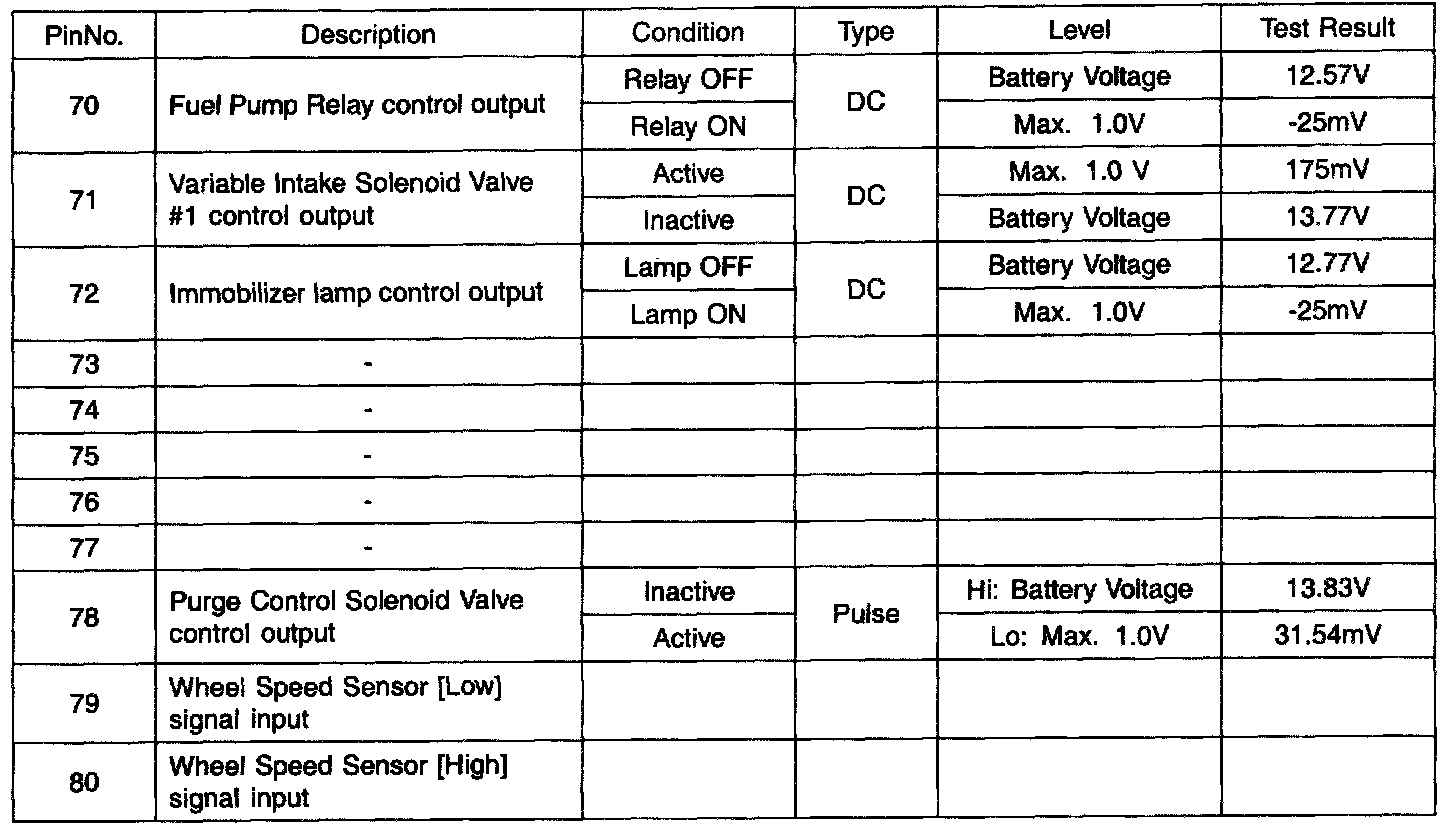

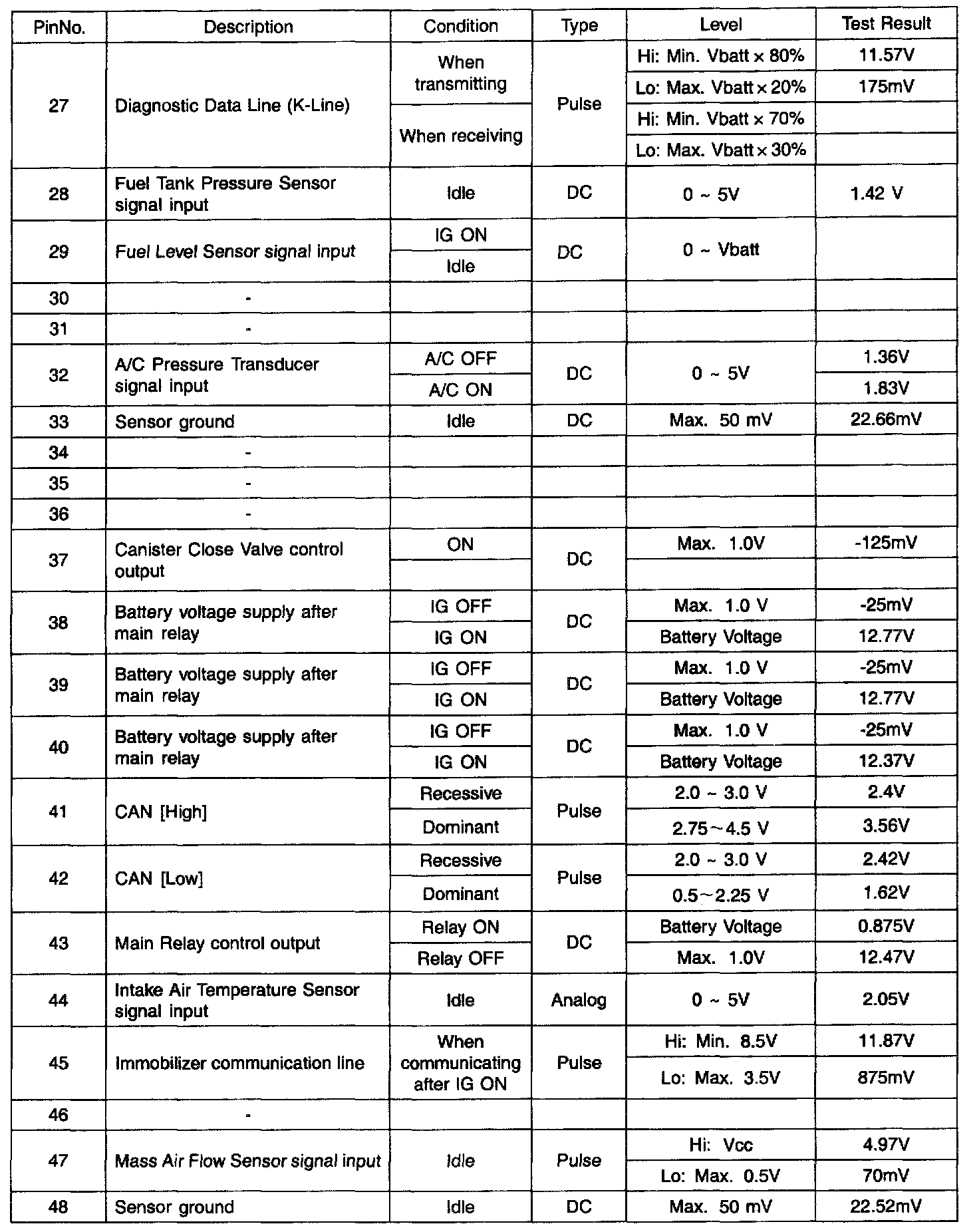

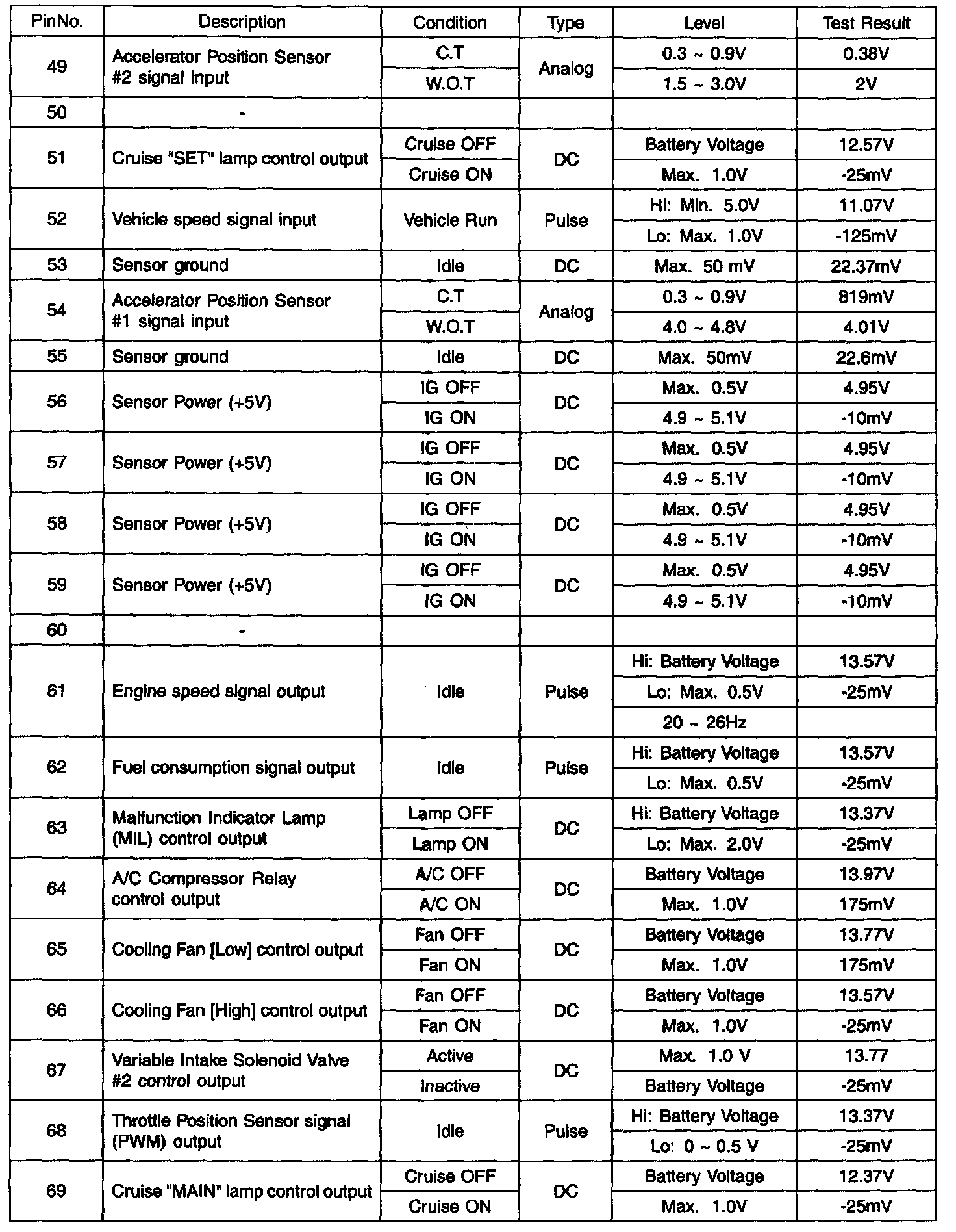

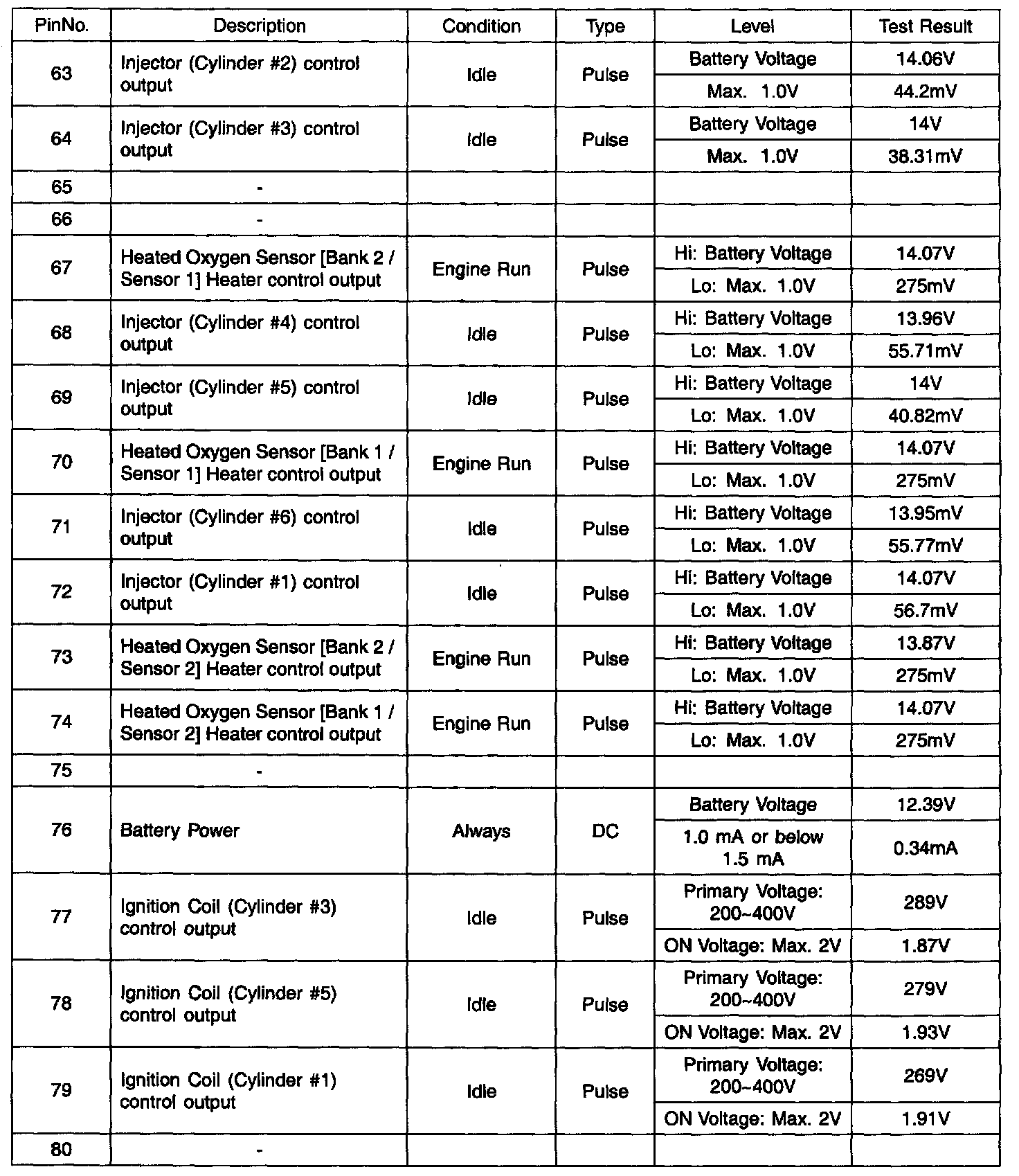

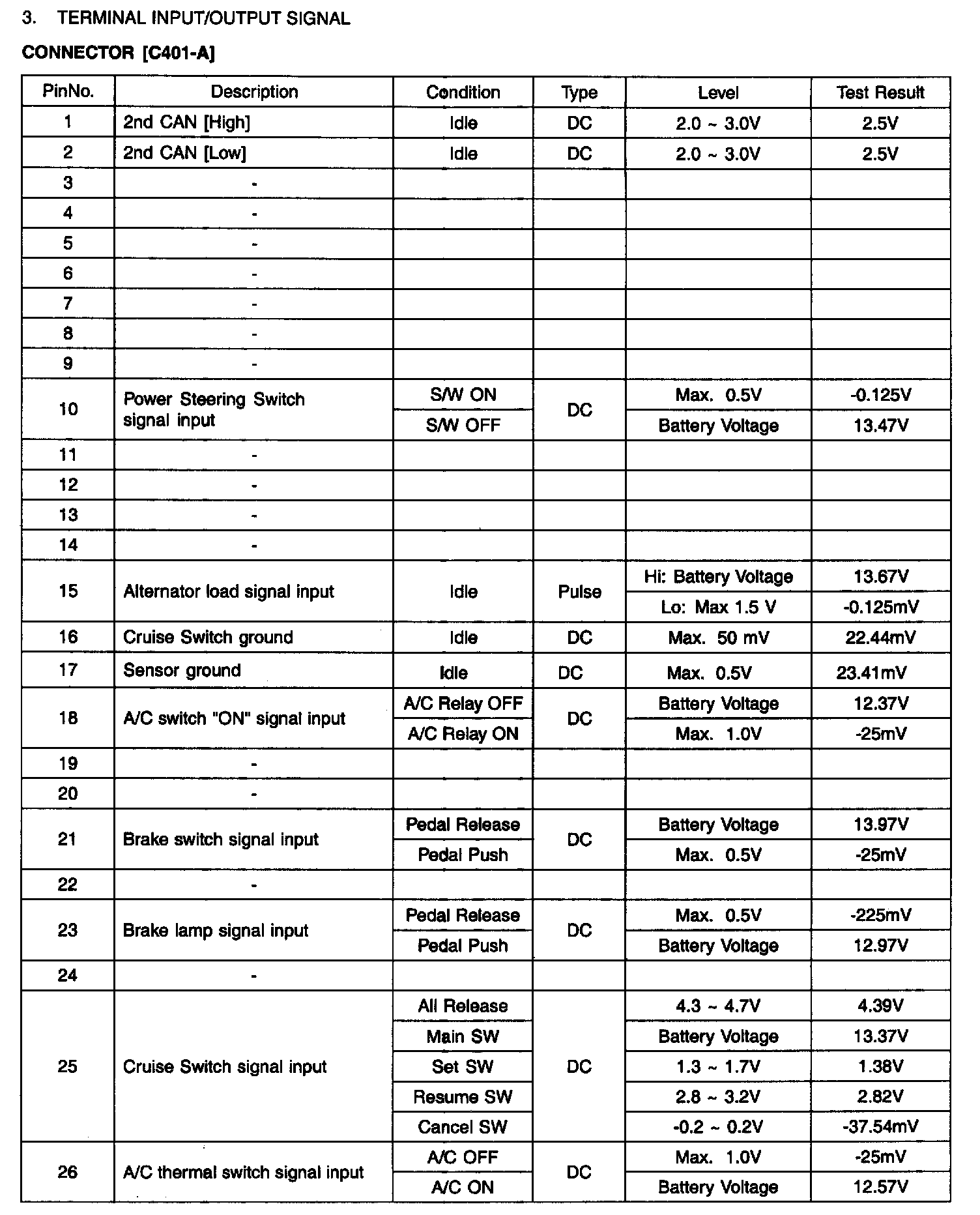

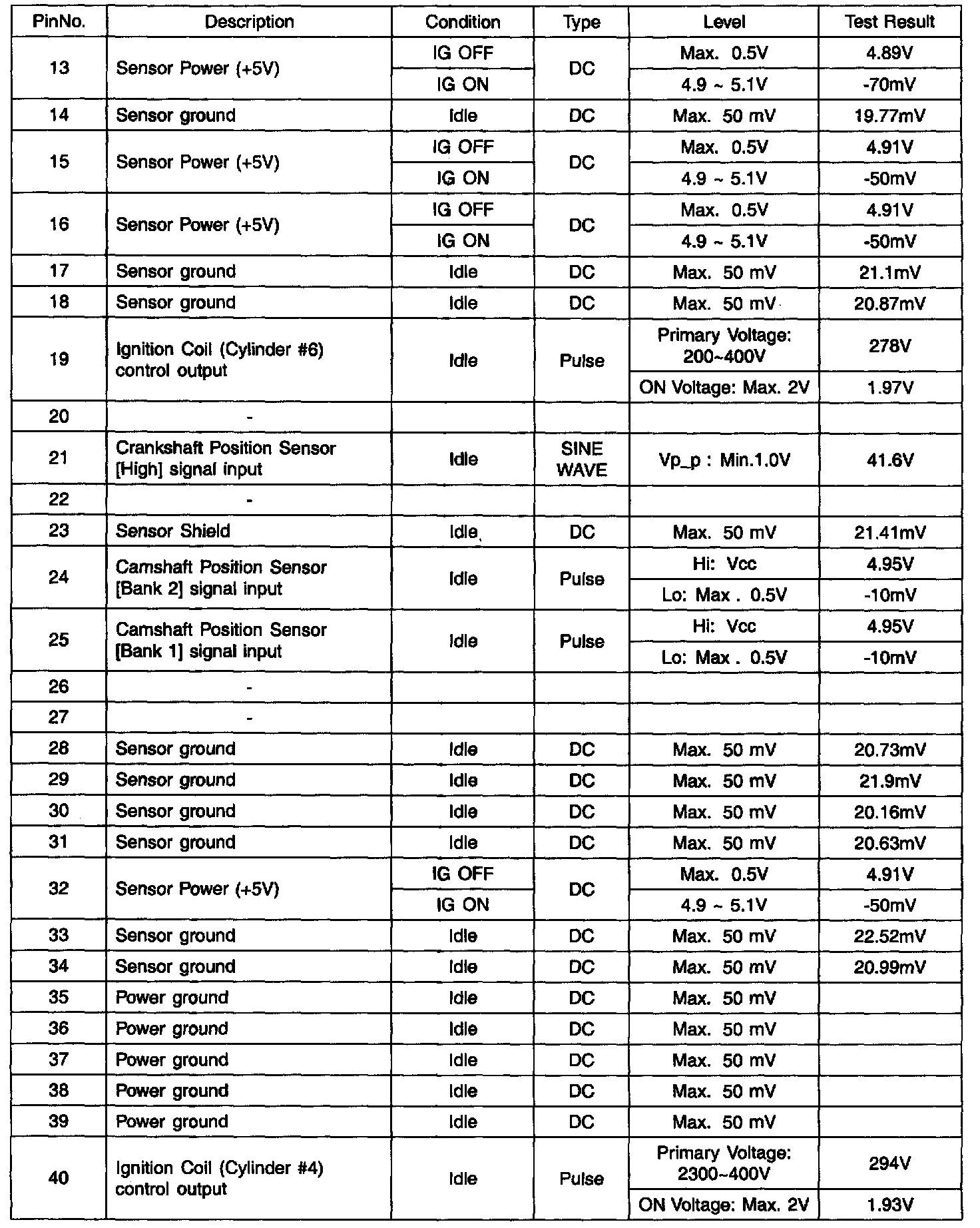

PCM Terminal Input/Output Signal - C401-A (Part 1):
PCM Terminal Input/Output Signal - C401-A (Part 2):
PCM Terminal Input/Output Signal - C401-A (Part 3):
PCM Terminal Input/Output Signal - C401-A (Part 4):
PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C401-A]

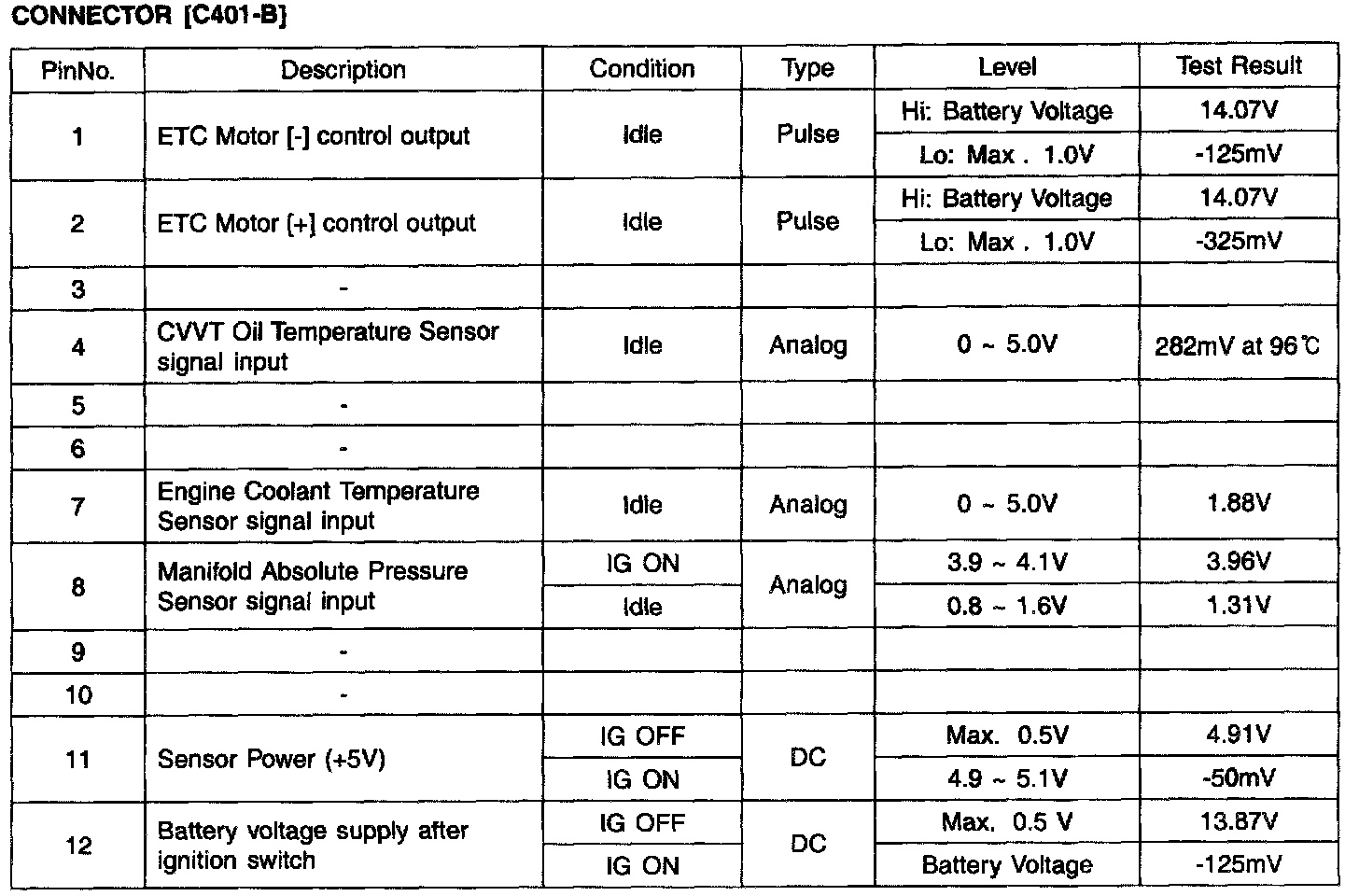

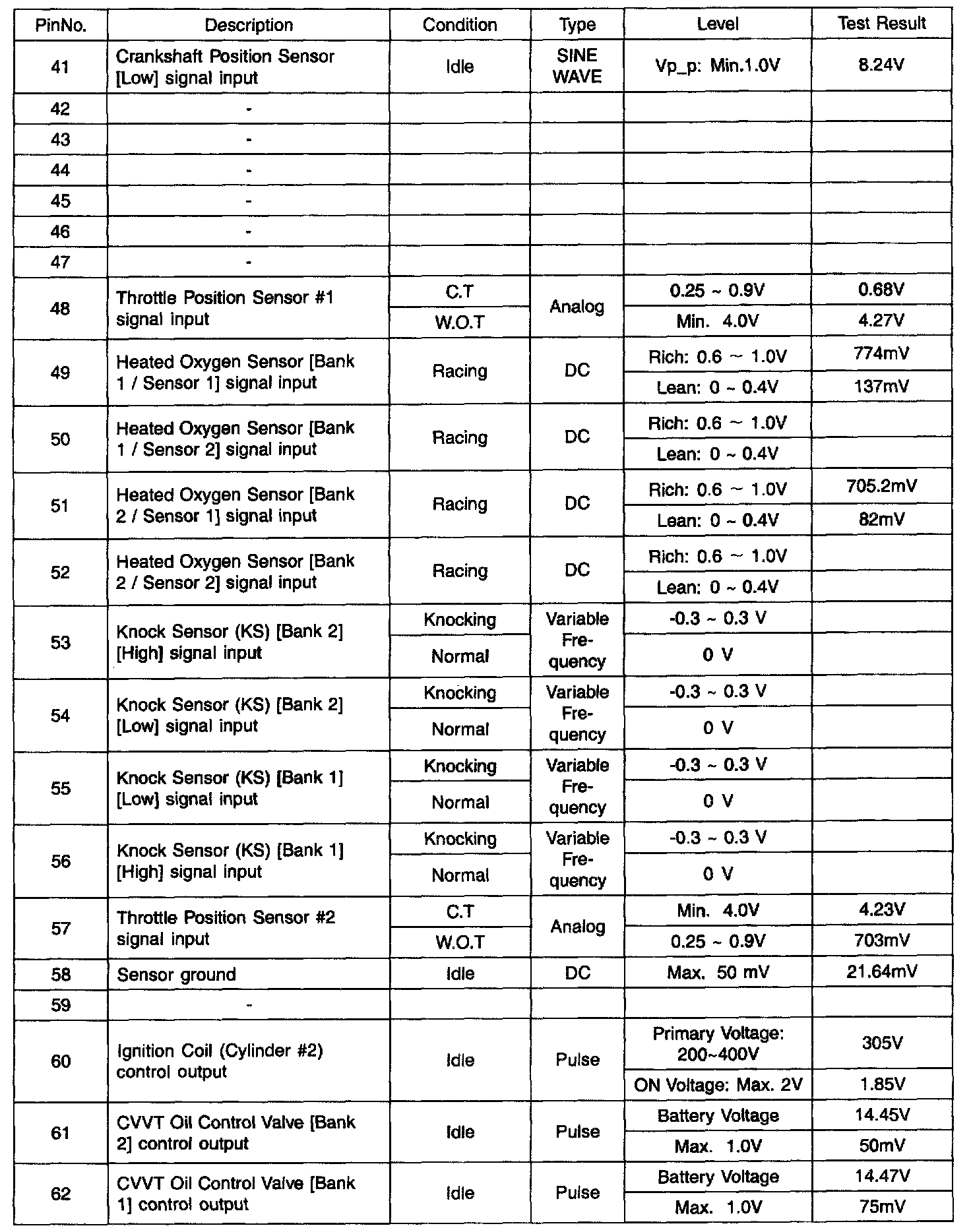

PCM Terminal Input/Output Signal - C401-B (Part 1):
PCM Terminal Input/Output Signal - C401-B (Part 2):
PCM Terminal Input/Output Signal - C401-B (Part 3):
PCM Terminal Input/Output Signal - C401-B (Part 4):
PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C401-B]
