Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE

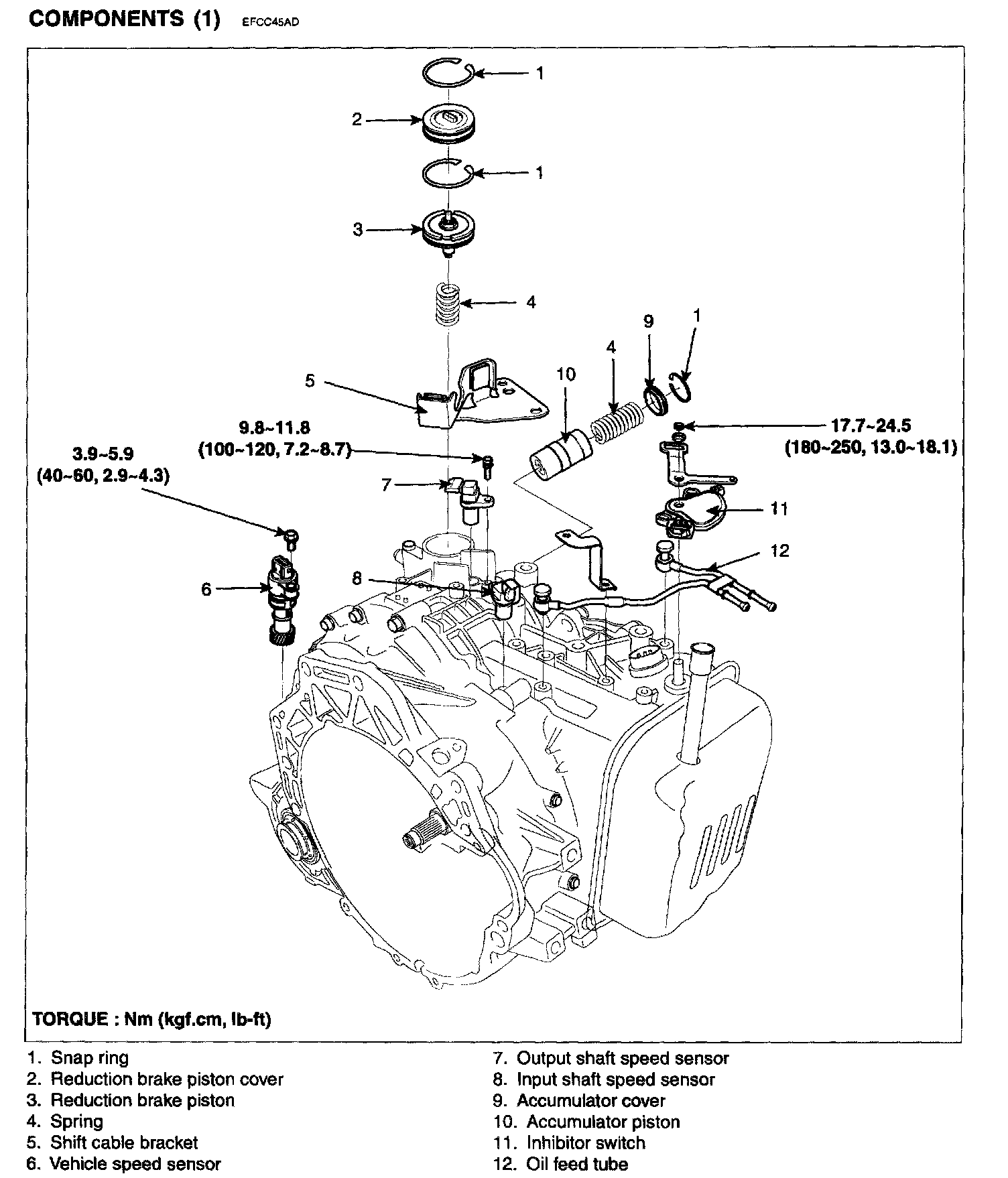

Components (1):

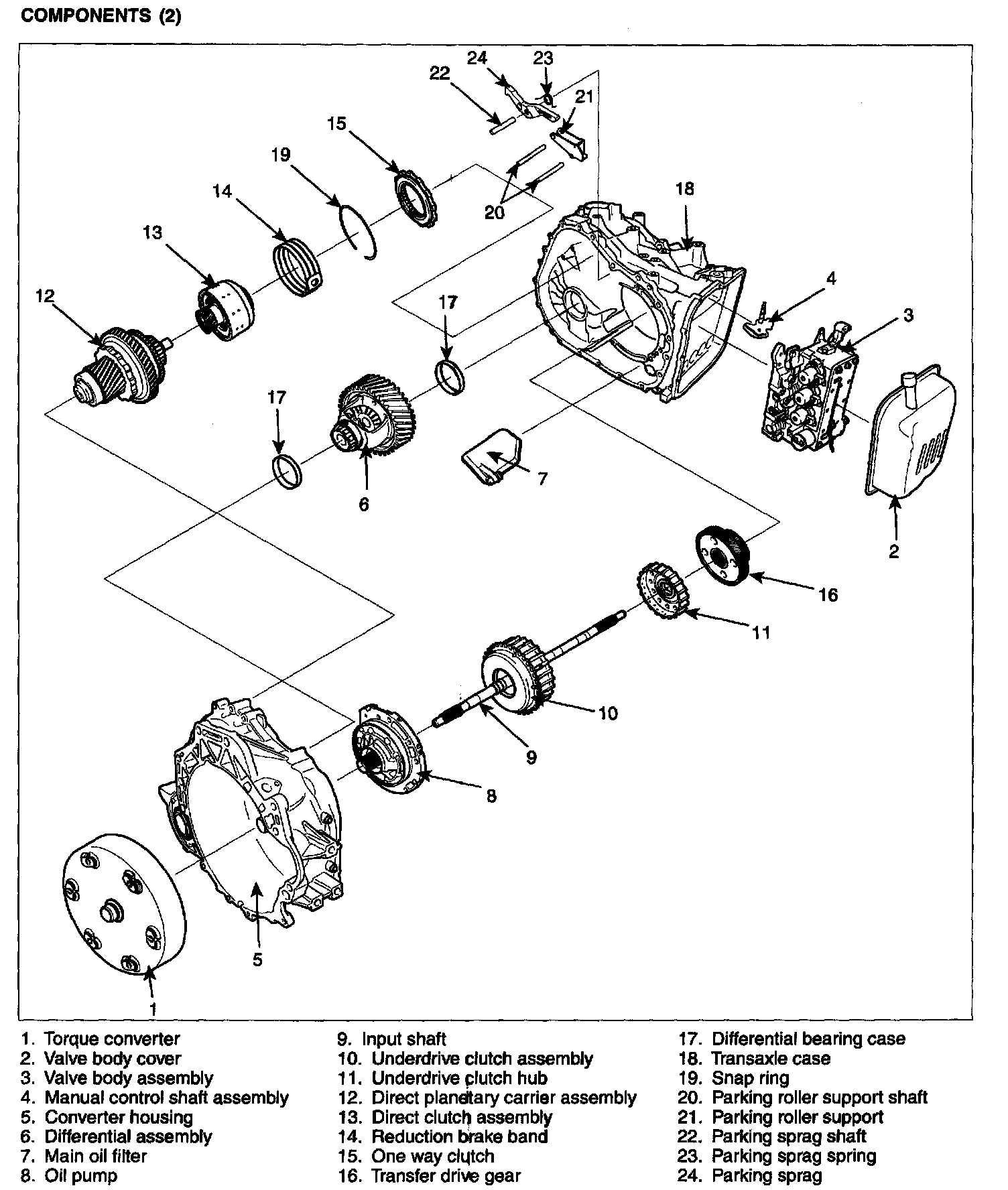

Components (2):

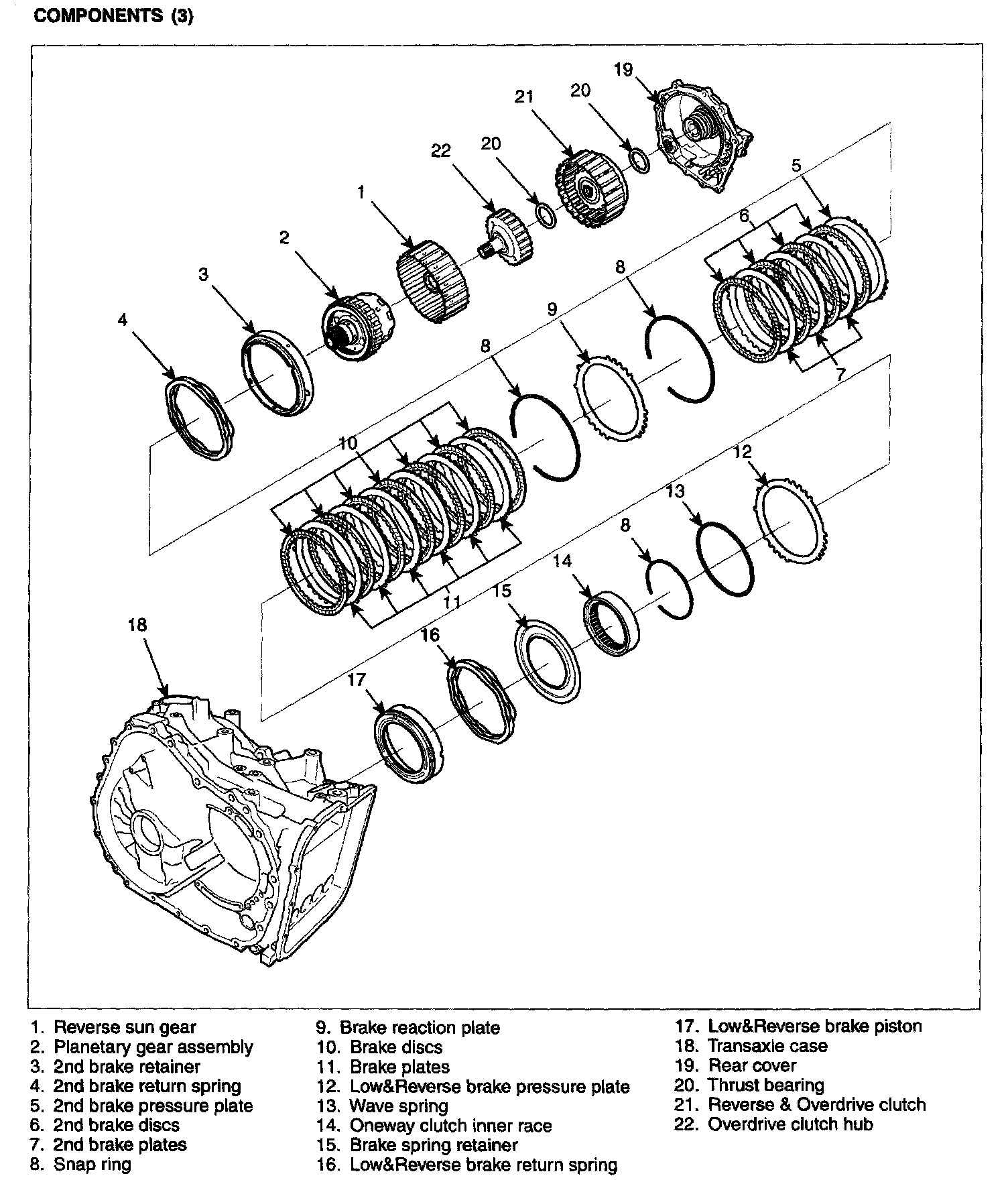

Components (3):
