Driver/Assist Door Module (DDM/ADM)

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim panel. (Refer to FRONT DOOR )
  3. Disconnect the door module mounting screws (5EA) after disconnecting the module connectors (3EA) from the motor.

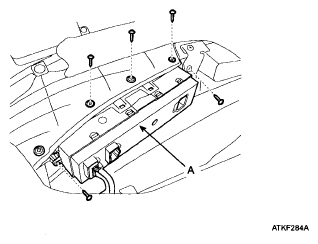

    Fig 1: Identifying Door Module And Mounting Screws
    G04884951Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the door module (DDM/ADM) (A) from the front door trim panel.

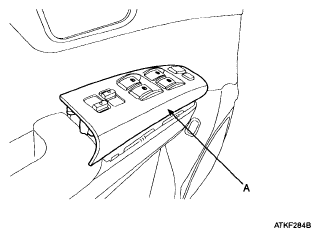

    Fig 2: Identifying Front Door Modules
    G04884952Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
