Charging Systems: Alternator: Component

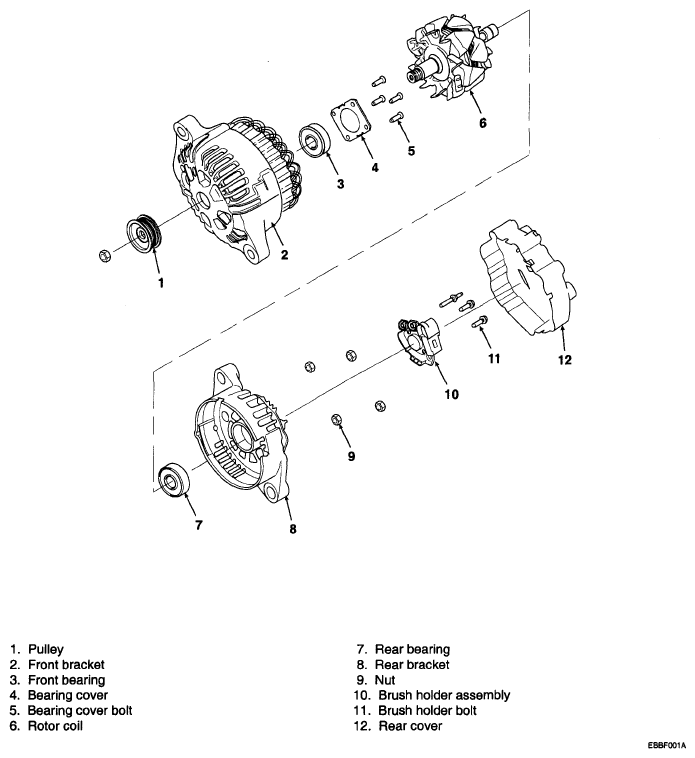

Fig 1: Exploded View Of Alternator

G04882078

Courtesy of KIA MOTORS AMERICA, INC.
