Camshaft Position Sensor (CMPS): Description: Notes

Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of each cylinder which the CKPS can't detect.

The two CMPS are installed on engine head cover of bank 1 and 2 and uses a target wheel installed on the camshaft. This sensor has a hall-effect IC which output voltage changes when magnetic field is made on the IC with current flow.

Fig 1: Identifying Camshaft Position Sensor (CMPS)

Courtesy of KIA MOTORS AMERICA, INC.

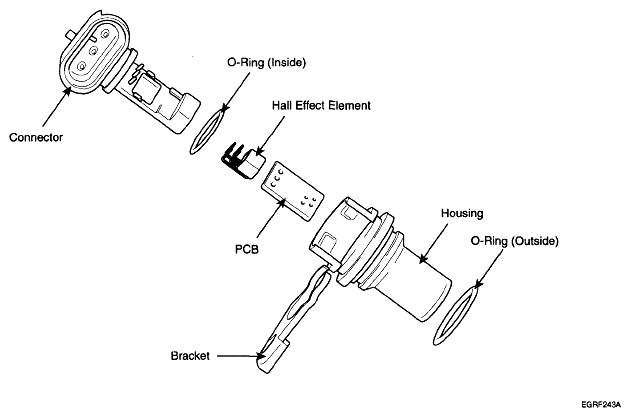

Fig 2: Exploded View Of Camshaft Position Sensor (CMPS)

Courtesy of KIA MOTORS AMERICA, INC.
