Variable Intake Solenoid (VIS) Valve: Description: Notes

Variable Intake Solenoid (VIS) Valve is installed on the intake manifold and changes the effective length of the intake passages to improve intake efficiency under varying engine conditions.

1. Low/Middle Speed: VIS Valve Close → Resonation Effect → Improving Intake Efficiency
2. High Speed: VIS Valve Open → Improving Intake Inertia Effect → Improving Intake Efficiency

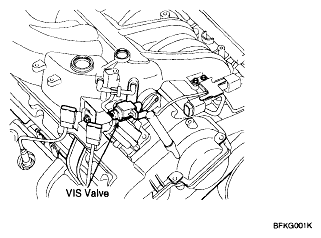

   Fig 1: Identifying Variable Intake Solenoid (VIS) Valve

   Courtesy of KIA MOTORS AMERICA, INC.

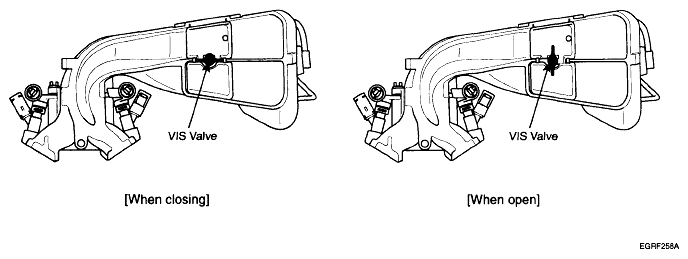

   Fig 2: Identifying (VIS) Valve Opening And Closing Location

   Courtesy of KIA MOTORS AMERICA, INC.
