Spark Test

Remove the ignition coil connector (A).

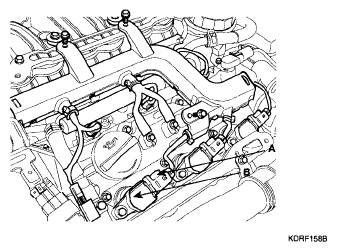

Fig 1: Locating Ignition Coil Connectors And Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 2: Identifying Ignition Coil Connector Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove bolt holding down the ignition coil.
Remove ignition coil from engine.
Using a spark plug socket, remove the spark plug.
Attach the spark plug to the ignition coil.
Reconnect ignition coil harness connector to ignition coil.
Ground the spark plug to the engine.

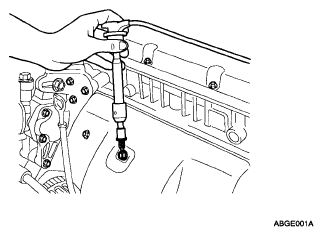

Fig 3: Grounding Spark Plug To Engine
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay (A) from the fuse box.
Crank the engine for no more than 5-10 seconds.

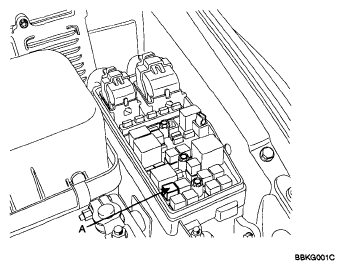

Fig 4: Identifying Fuel Pump Relay
Courtesy of KIA MOTORS AMERICA, INC.
Continue to inspect other cylinders of suspected `no spark' concerns.
Install in the reverse order of testing and removal.

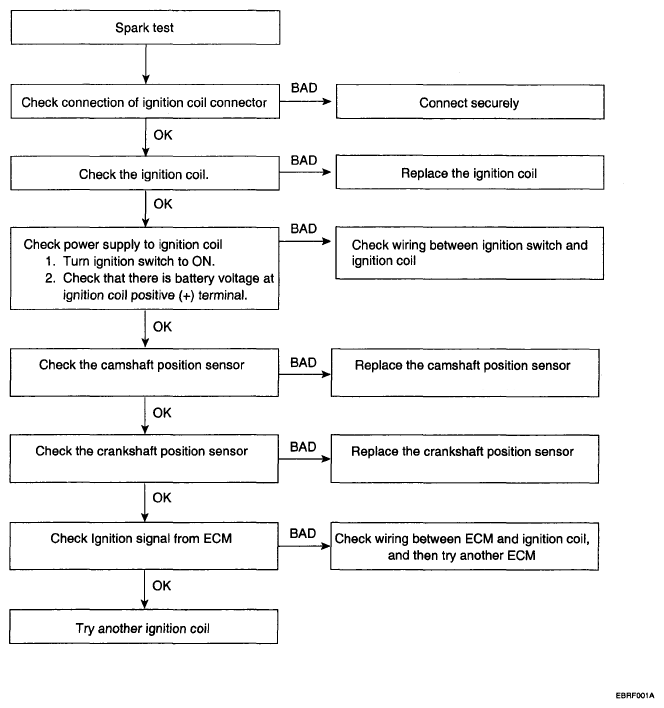

Fig 5: Spark Plug Test Flow Chart
