Restraints - General: Components: Notes

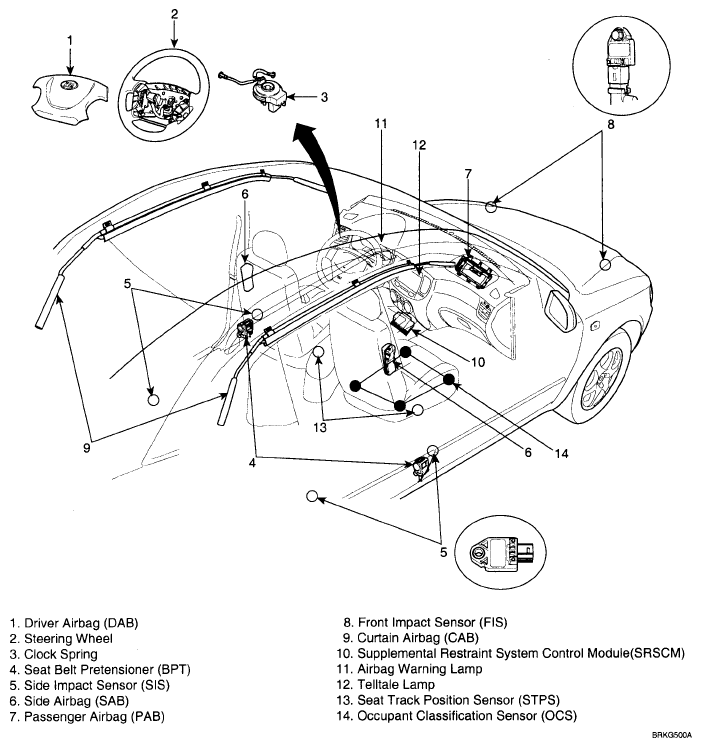

Fig 1: Identifying Restraints System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
