Front Impact Sensor (FIS): Removal
CAUTION:
- Removal of the airbag must be performed according to the precautions/ procedures described previously.
- Before disconnecting the front impact sensor connector, disconnect the front airbag connectors).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

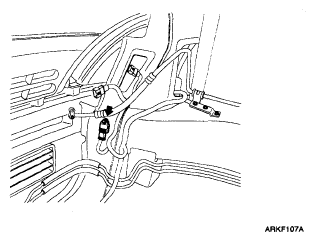

- Disconnect Front Impact Sensor connector.
- Remove the FIS mounting bolt then remove the Front Impact Sensor.
