Front Side Impact Sensor
CAUTION:
- Ensure that the harness is installed and routed properly to prevent damage to the wiring.
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.

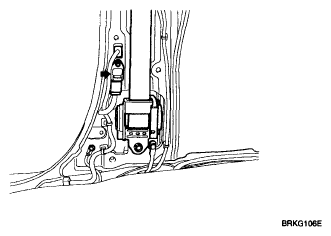

- Install the new Side Impact Sensor with the bolt then connect the SRS harness connector to the Side Impact Sensor.
Tightening torque
: 1.0 - 1.4 kgf.m (9.5-13.6 N.m, 7.0 - 10.0 lb.ft)
- Install the center pillar trim. (Refer to INTERIOR TRIM )
- Install the door scuff trim. (Refer to INTERIOR TRIM )
- Reconnect the battery negative cable.
- After installing the Side Impact Sensor, confirm proper system operation: Turn the ignition switch ON, the SRS indicator light should be turned on for about six seconds and then go off.
