Rear Side Impact Sensor
- Be sure that the battery negative cable is disconnected.

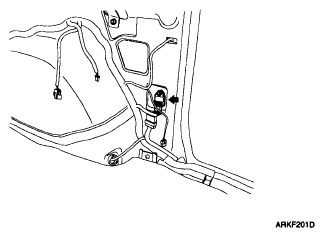

- Install the new Side Impact Sensor with the bolt then connect the SRS harness connector to the Side Impact Sensor.
Tightening torque
: 1.0-1.4 kgf.m (9.5-13.6 N.m, 7.0-10.0 lb.ft)
- Install the rear pillar trim. (Refer to INTERIOR TRIM )
- Reconnect the battery negative cable.
- After installing the Side Impact Sensor, confirm proper system operation: Turn the ignition switch ON, the SRS indicator light should be turned on for about six seconds and then go off.
