Shift Lever: Disassembly

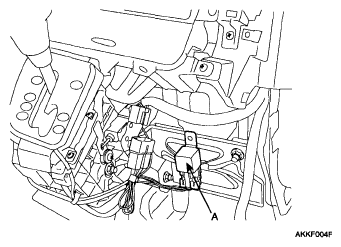

Remove the adjusting pedal relay (A) from the bracket.

Fig 1: Identifying Adjusting Pedal Relay
Courtesy of KIA MOTORS AMERICA, INC.
Remove both sides of the brackets.

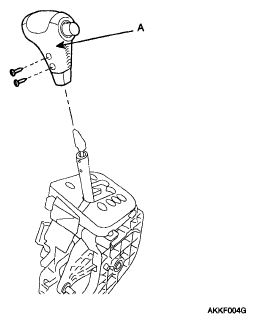

Remove the shift lever knob (A) by removing the two screws.

Fig 2: Identifying Shift Lever Knob And Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid connector (A) and remove the indicator panel (B).

Fig 3: Identifying Solenoid Connector And Indicator Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the switch assembly (A) and "P" position switch assembly.

Fig 4: Identifying Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

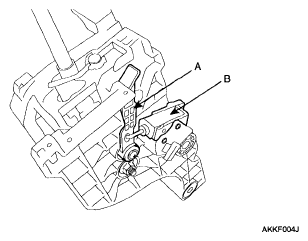

Remove the solenoid (B) and solenoid lever (A).

Fig 5: Identifying Solenoid And Solenoid Lever
Courtesy of KIA MOTORS AMERICA, INC.

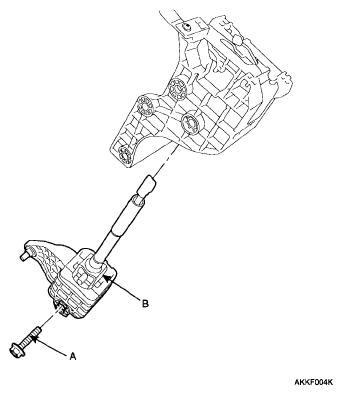

Remove the lever assembly (B) by the mounting bolt (A).

Fig 6: Identifying Lever Assembly And Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

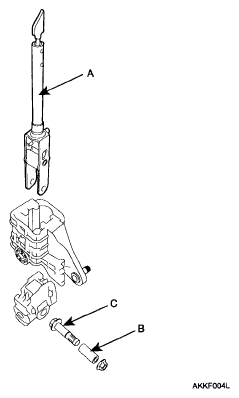

Remove the lever (A) and tube (B) by removing the bolt (C).

Fig 7: Identifying Lever, Tube And Bolt
