Shift Lever: Installation

Install the shift cable mounting nut (A) and cap (B).
TORQUE:

10-14 N.m (100-140 kgf.cm, 7.3-10.2 lb-ft)

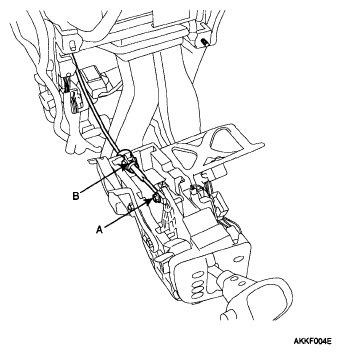

Fig 1: Identifying Shift Cable Mounting Nut And Cap
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever assembly mounting nuts (A).
TORQUE:

19-24 N.m (190-240 kgf.cm, 13.8-17.5 lb-ft)

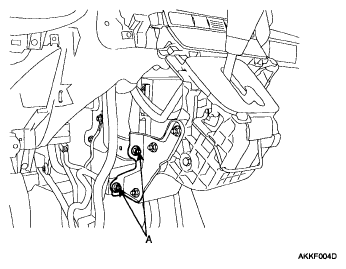

Fig 2: Identifying Shift Lever Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the connector (A).

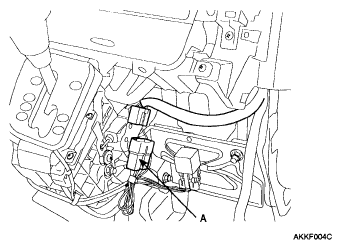

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the front console cover (A), (see INTERIOR )

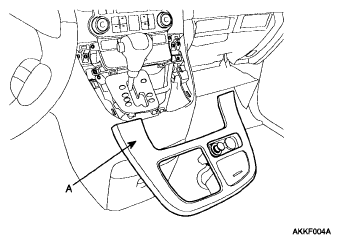

Fig 4: Identifying Front Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install the console upper cover (A). (see INTERIOR ).

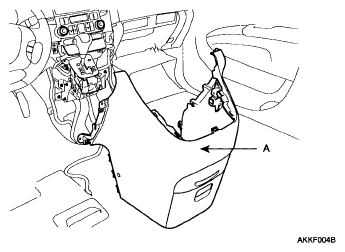

Fig 5: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
