Automatic Transaxle: Installation

Installation is in the reverse order of removal.

Perform the following :

• Adjust the shift cable.
• Refill the transaxle with fluid.
• Refill the radiator with engine coolant.
• Bleed air from the cooling system with the heater valve open.
• Clean the battery posts and cable terminals with sandpaper, assemble them, and apply grease to prevent corrosion.

1. Lowering the vehicle or lifting up a jack, install the transaxle assembly.
2. Tighten the transaxle under mounting bolts.

   TORQUE:

   65~85 Nm (650~850 kgf.cm, 47.0~61.5 lb-ft)

3. Install the starter motor, (see STARTING SYSTEM ).

   TORQUE:

   65~85 Nm (650~850 kgf.cm, 47.0~61.5 lb-ft)

4. Tighten the transaxle under mounting bolts (A, B).

   TORQUE:46~53 Nm (460~530 kgf.cm, 33.3~38.3 lb-ft)

   Fig 1: Identifying Mounting Bolts (A) And Drive Plate Bolts (B)

   Courtesy of KIA MOTORS AMERICA, INC.
5. After removing a jack, insert the drive shafts, (see DRIVESHAFT )
6. Install the sub frame, (see FRONT SUSPENSION SYSTEM ).
7. Tighten the roll stopper mounting bolts (A, B)

   TORQUE:

   90~110 Nm (900~1100 kgf.cm, 65.1~79.5 lb-ft)

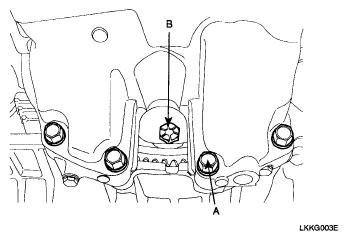

   Fig 2: Identifying Roll Stopper Mounting Bolts (A)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Identifying Roll Stopper Mounting Bolts (B)

   Courtesy of KIA MOTORS AMERICA, INC.
8. Connect the return tube with a clamp, (see MECHANICAL POWER STEERING SYSTEM )
9. Connect the lower arm, the tie rod end ball joint, the stabilizer bar link to the front knuckle, (see FRONT SUSPENSION SYSTEM )
10. Connect the power steering pressure tube (A) to the power steering oil pump.

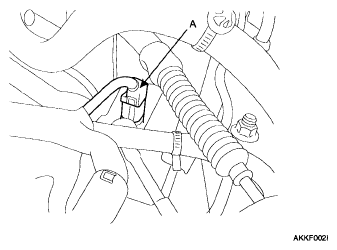

    Fig 4: Identifying Power Steering Pressure Tube (A)

    Courtesy of KIA MOTORS AMERICA, INC.
11. Install the under cover (A).

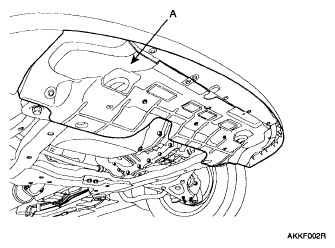

    Fig 5: Identifying Under Cover (A)

    Courtesy of KIA MOTORS AMERICA, INC.
12. Install the steering column joint bolt, (see MECHANICAL POWER STEERING SYSTEM ).
13. Install the front wheels and tires.

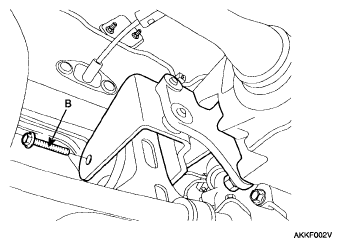

14. Tighten the transaxle insulator mounting bolt (A).

    TORQUE:

    90~110 Nm (900~1100 kgf.cm, 65.1~79.5 lb-ft)

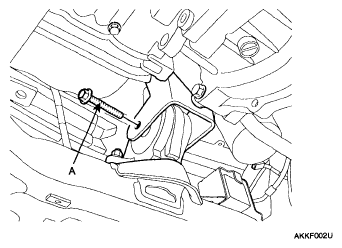

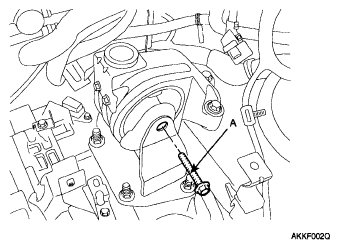

    Fig 6: Identifying Insulator Mounting Bolt (A)

    Courtesy of KIA MOTORS AMERICA, INC.

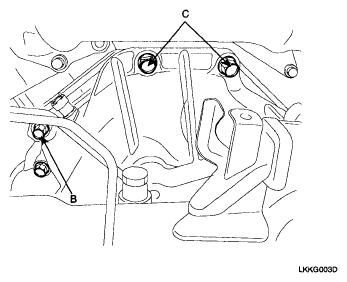

15. Tighten the transaxle mounting bolts (B, C).

    TORQUE:

    65~85 Nm (650~850 kgf.cm, 47.0~61.5 lb-ft)

    Fig 7: Identifying Mounting Bolts (B, C)

    Courtesy of KIA MOTORS AMERICA, INC.
16. Remove the SST (09200-38001) holding the engine and transaxle assembly.

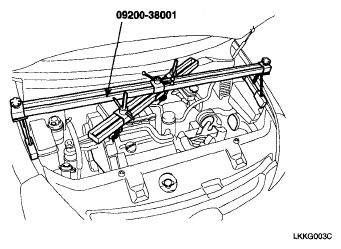

    Fig 8: Identifying Special Tool SST (09200-38001)

    Courtesy of KIA MOTORS AMERICA, INC.

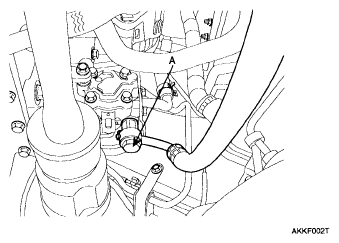

17. Connect the transaxle oil cooler hoses (A) to the tubes (C) by fastening the clamps (B).

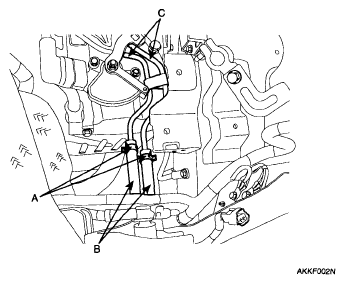

    Fig 9: Identifying Oil Cooler Hoses (A) Tubes (C) And Clamps (B)

    Courtesy of KIA MOTORS AMERICA, INC.

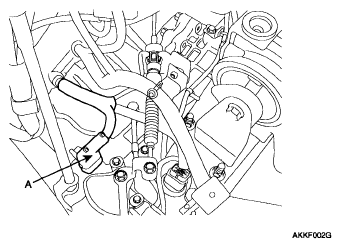

18. Install the shift cable by tightening the bolt (A) and clip (B).

    TORQUE:

    10~14 Nm (100~140 kgf.cm, 7.2~10.1 lb-ft)

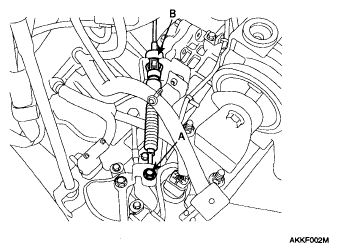

    Fig 10: Identifying Shift Cable, Bolt (A) And Clip (B)

    Courtesy of KIA MOTORS AMERICA, INC.
19. Connect the transaxle wire harness connectors.

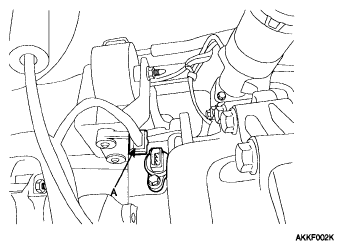

    1. Install the inhibitor switch connector (A).

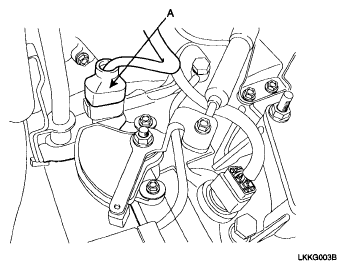

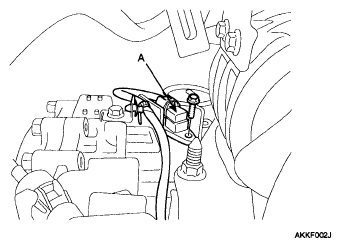

       Fig 11: Identifying Inhibitor Switch Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.
    2. Install the solenoid valve connector (A).

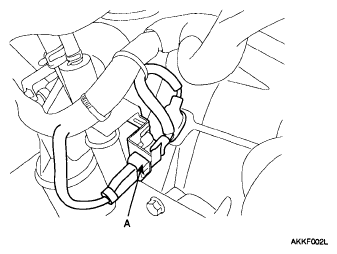

       Fig 12: Identifying Solenoid Valve Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.
    3. Install the input speed sensor connector (A).
       Fig 13: Identifying Input Speed Sensor Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.
    4. Install the output speed sensor connector (A).
       Fig 14: Identifying Output Speed Sensor Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.
    5. Install the vehicle speed sensor connector (A).
       Fig 15: Identifying Vehicle Speed Sensor Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.
    6. Install the CKP sensor connector (A).
       Fig 16: Identifying CKP Sensor Connector (A)

       Courtesy of KIA MOTORS AMERICA, INC.

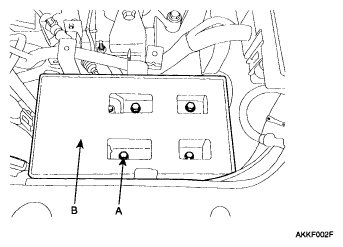

20. Install the battery tray (B) by tightening the four mounting bolts (A).
    Fig 17: Identifying Battery Tray (B) And Mounting Bolts (A)

    Courtesy of KIA MOTORS AMERICA, INC.
21. Connect the air cleaner hose (B) by fastening the clamp (A).

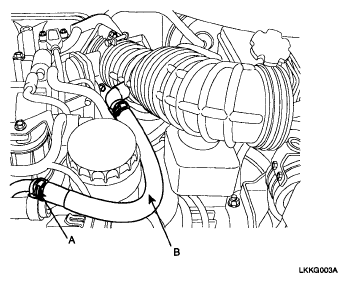

    Fig 18: Identifying Air Cleaner Hose (B) And Clamp (A)

    Courtesy of KIA MOTORS AMERICA, INC.
22. Install the air cleaner assembly (A).

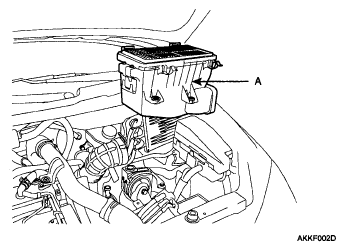

    Fig 19: Identifying Air Cleaner Assembly (A)

    Courtesy of KIA MOTORS AMERICA, INC.

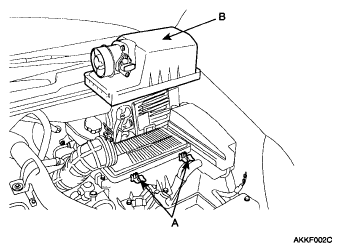

23. Install the air cleaner upper cover (B) by fastening the clips (A).
    Fig 20: Identifying Air Cleaner Upper Cover (B) And Clips (A)

    Courtesy of KIA MOTORS AMERICA, INC.

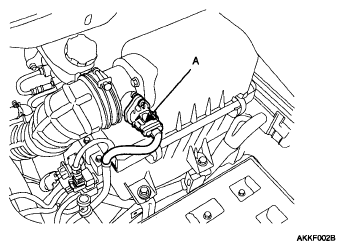

24. Connect the AFS connector (A).
    Fig 21: Identifying AFS Connector (A)

    Courtesy of KIA MOTORS AMERICA, INC.
25. Install the battery (A).

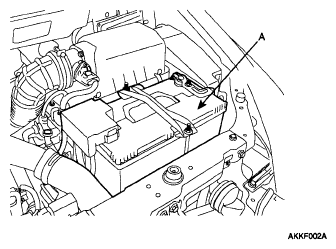

    Fig 22: Identifying Battery (A)

    Courtesy of KIA MOTORS AMERICA, INC.
