Automatic Transaxle Hydraulic Circuit: P/N

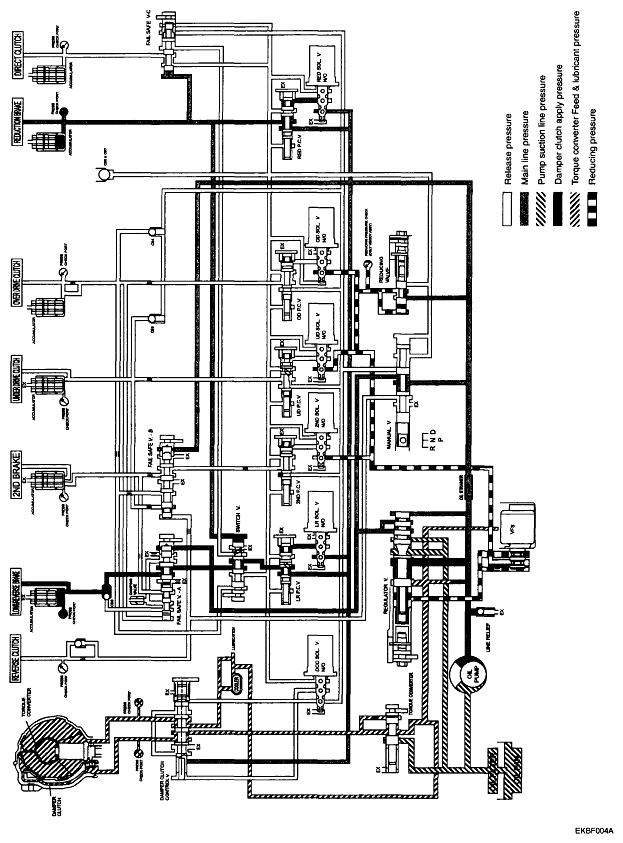

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - P/N
G04805072Courtesy of KIA MOTORS AMERICA, INC.
