System Specifications

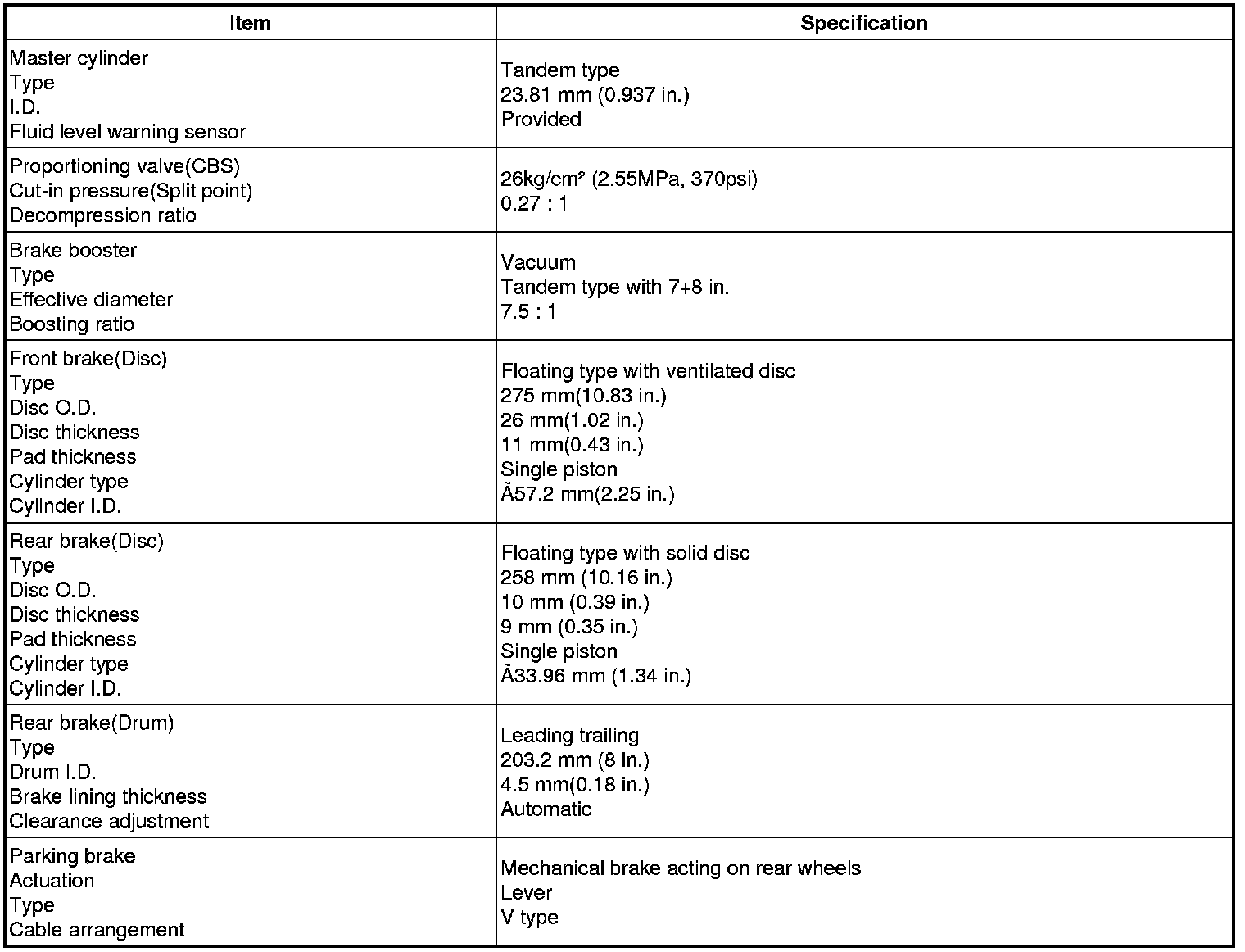

SPECIFICATIONS (Brake)





NOTE:
ABS : Anti-lock Brake System
CBS : Conventional Brake System

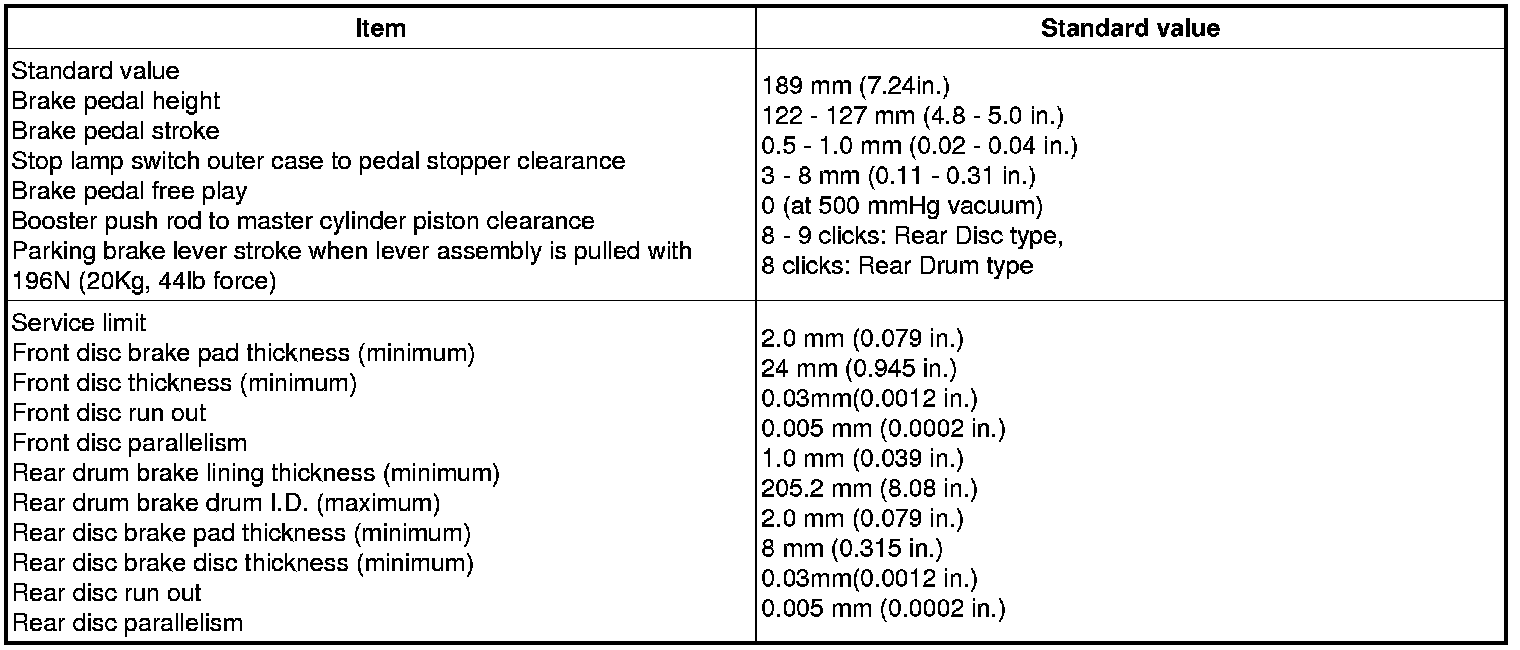

SERVICE STANDARD

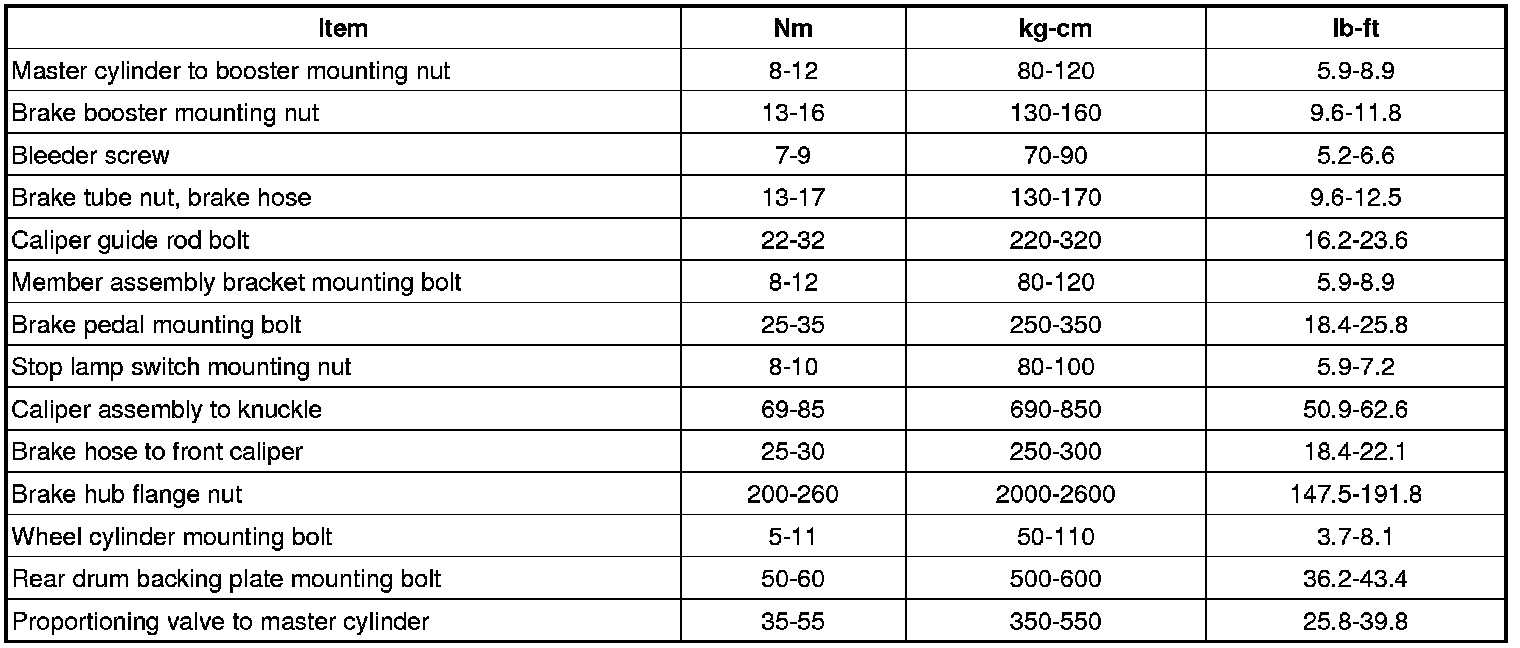

TIGHTENING TORQUE(Brake)

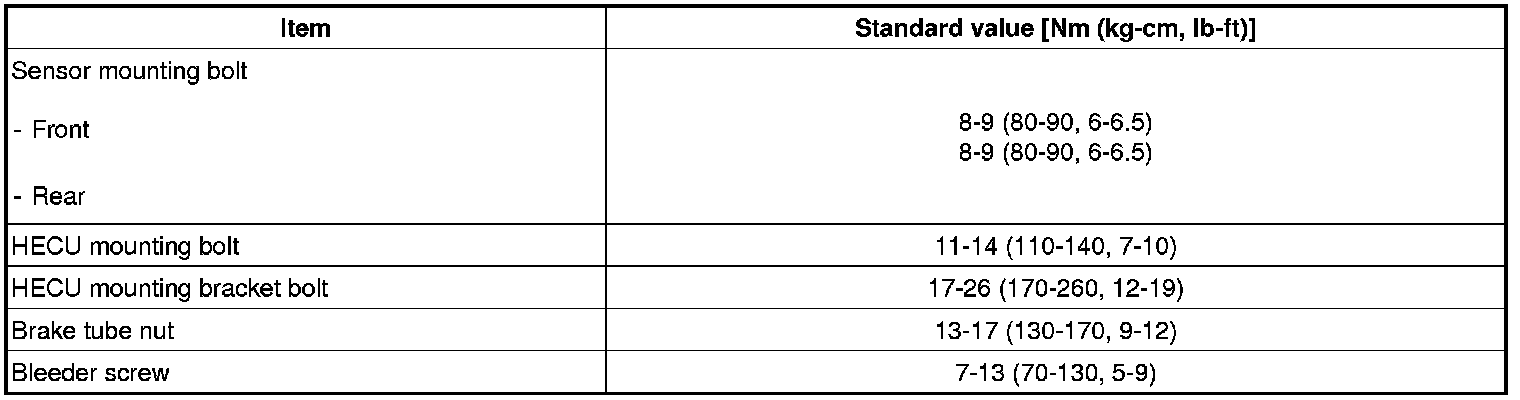

TIGHTENING TORQUE(ABS&TCS)

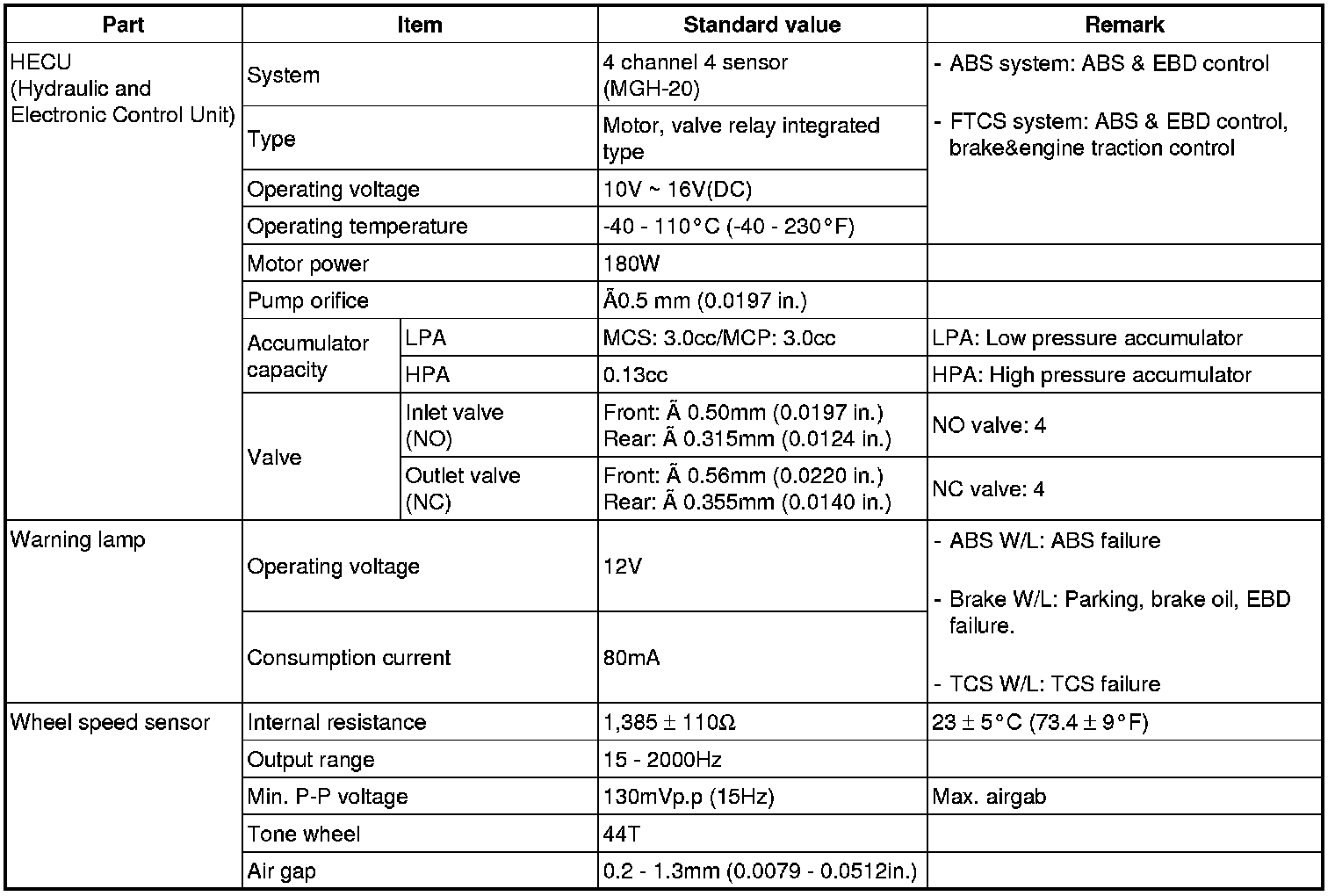

SPECIFICATION(ABS&TCS)
