Crankshaft Specifications

Crankshaft

End play
Standard: 0.06 - 0.26 mm (0.0024 - 0.0102 in)
Limit : 0.30 mm (0.0118 in)

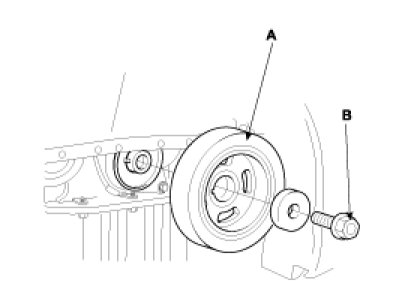

Crankshaft Pulley
Tightening torque 166.7 - 176.5 N-m (17.0 - 18.0 kg-m, 123.0 - 130.2 lb-ft)

crankshaft sprocket
Tightening torque 166.7 - 176.5 N-m (17 - 18 kg-m, 123.0 - 130.2 lb-ft)
