Main Bearing Cap

Main Bearing Cap
Install the main bearing cap bolts.

NOTE:
- The main bearing cap bolts are tightened in 2 progressive steps.
- If any of the bearing cap bolts in broken or deformed, replace it.

(1) Apply a light coat of engine oil on the threads and under the bearing cap bolts.

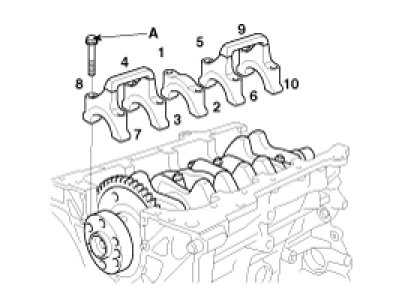

(2) Install and uniformly tighten the 10 bearing cap bolts(A), in several passes, in the sequence shown.

Tightening torque 27.5 - 31.4 N-m (2.8 - 3.2 kg-m, 20.3 - 23.1 lb-ft) + 60°~ 64°
