Specifications (M5BF2)

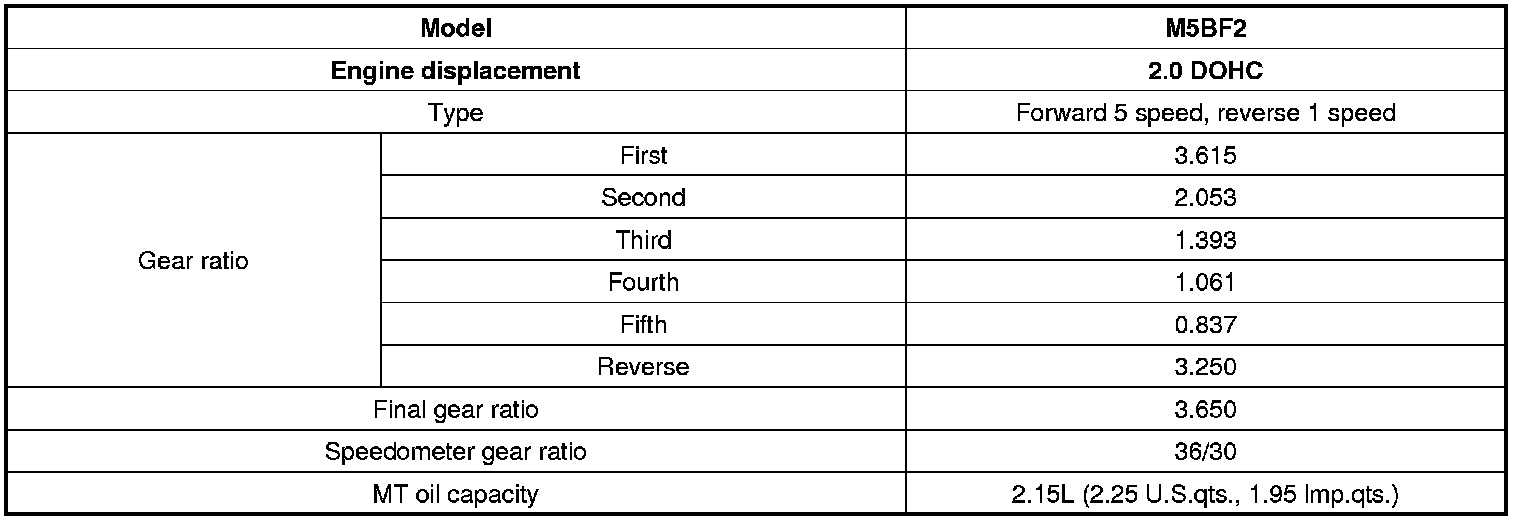

SPECIFICATION

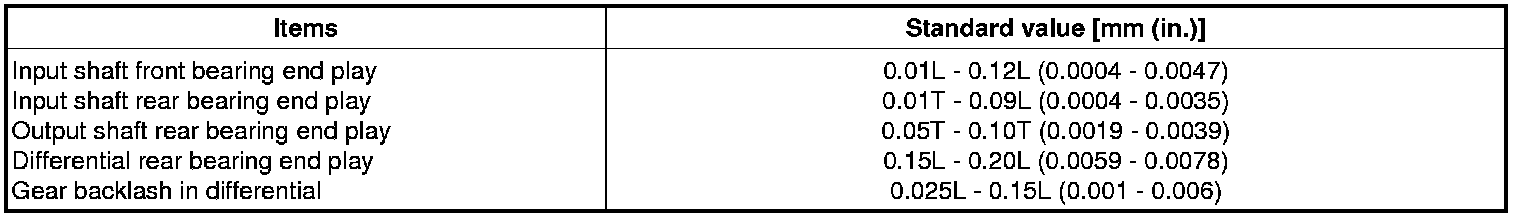

SERVICE STANDARD





T : Indicates tightening of -(minus) direction of end play
L : Indicates loosening of +(plus) direction of end play

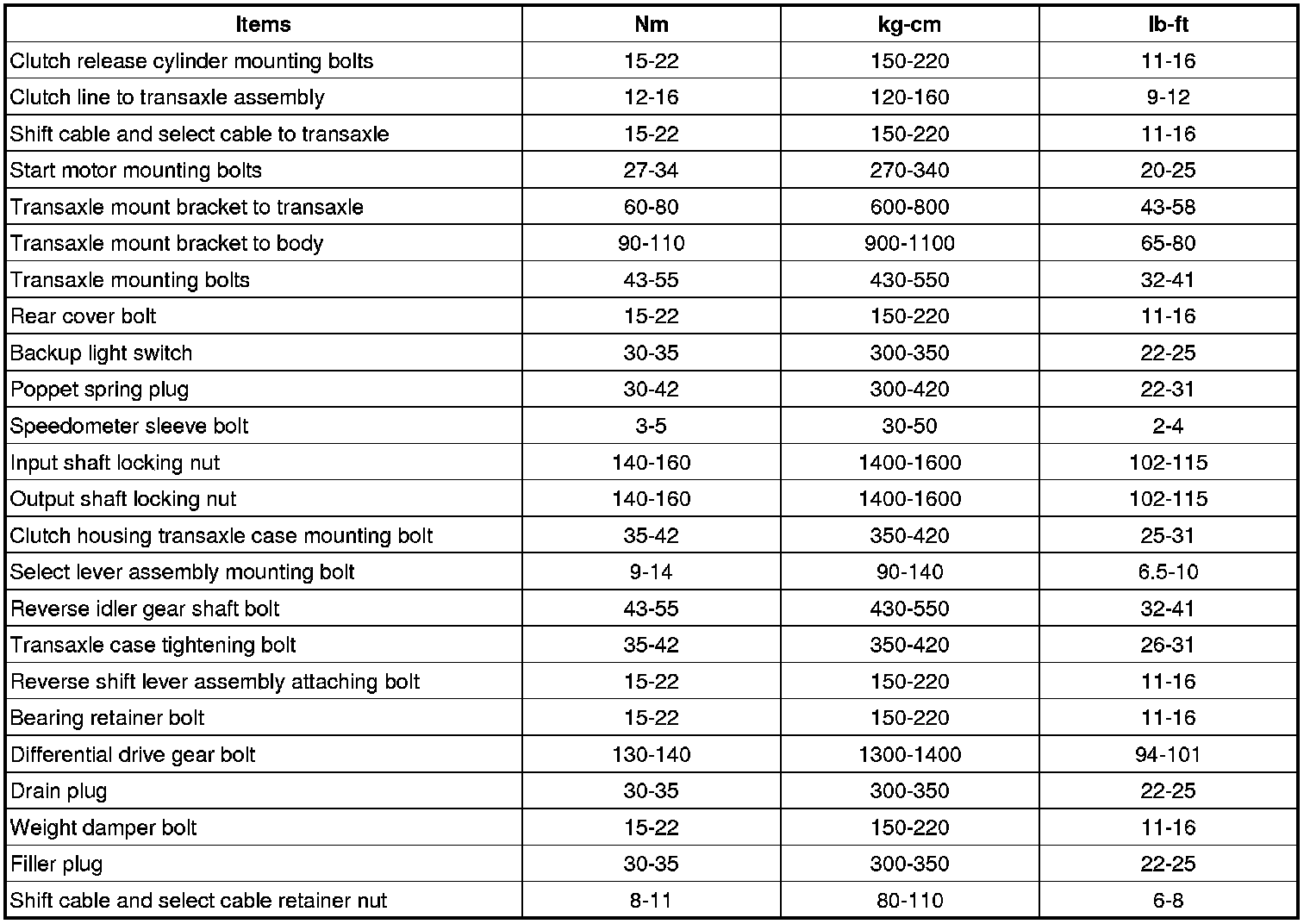

TIGHTENING TORQUE
