Power Window Switch: Testing and Inspection

INSPECTION

POWER WINDOW MAIN SWITCH
1. Remove the front door trim panel.

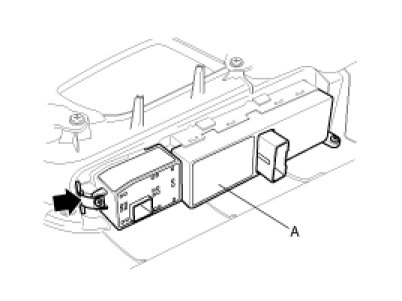

2. Remove the power window main switch (A) by pushing the mounting clip of the power window main switch.

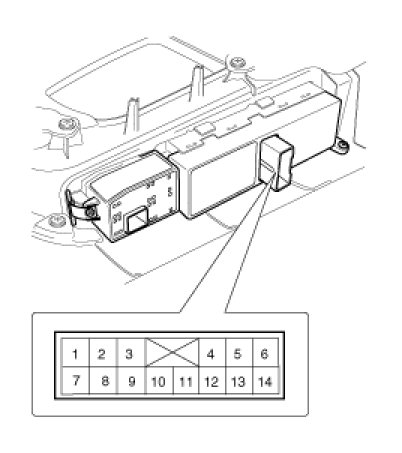

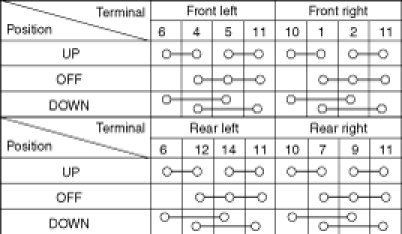

3. Check for continuity between the terminals. When the continuity does not agree, it exchanges the switch.

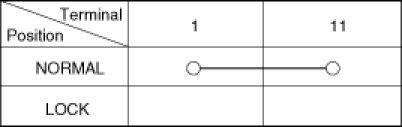

POWER WINDOW LOCK SWITCH





POWER WINDOW SUB SWITCH
1. Remove the rear door trim panel.

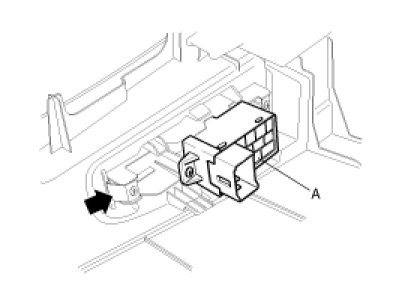

2. Remove the power window sub switch (A) by pushing the fixation clip of the power window sub switch.

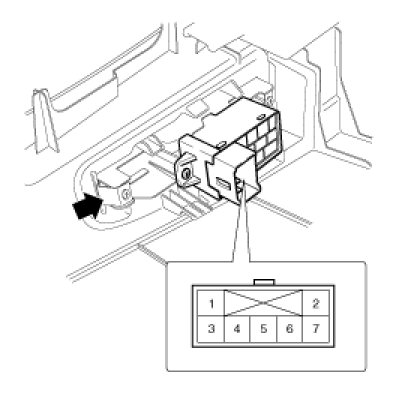

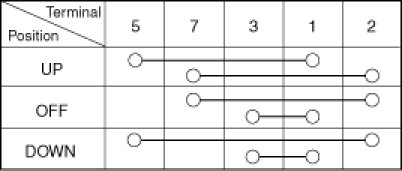

3. Check for continuity between the terminals. When the continuity does not agree, it exchanges the switch.
