Components Location

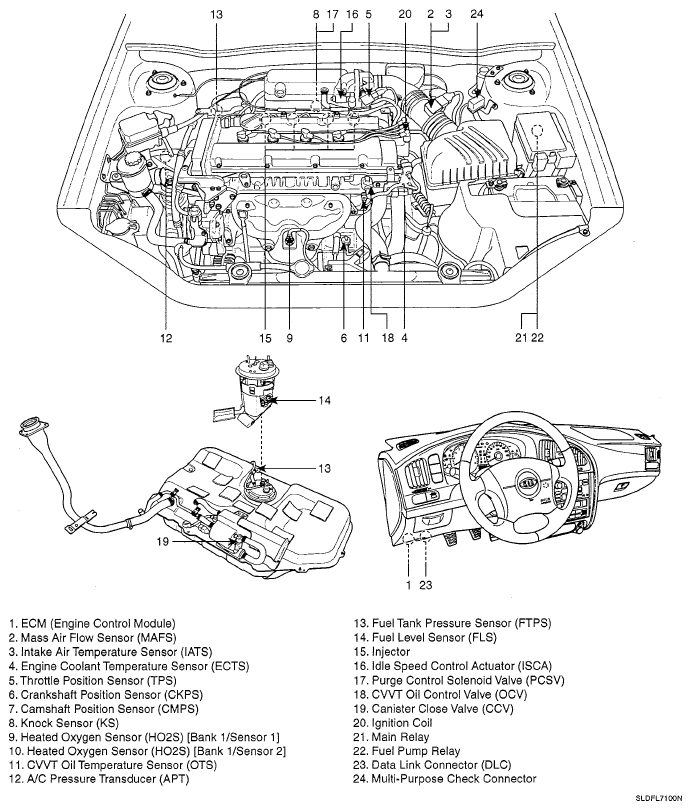

Fig 1: Identifying Fuel System Components Location (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

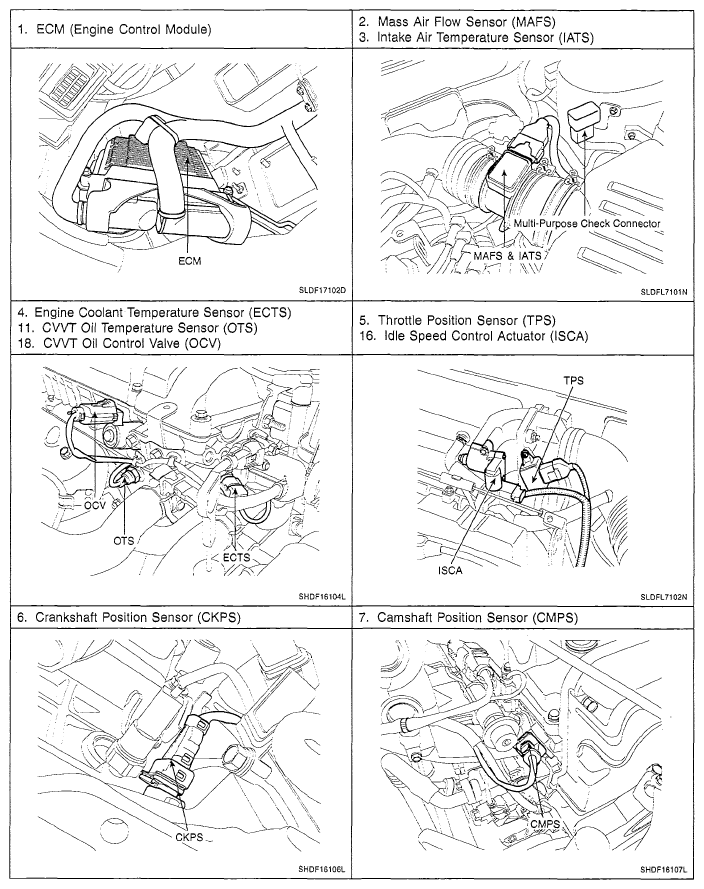

Fig 2: Identifying Fuel System Components Location (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

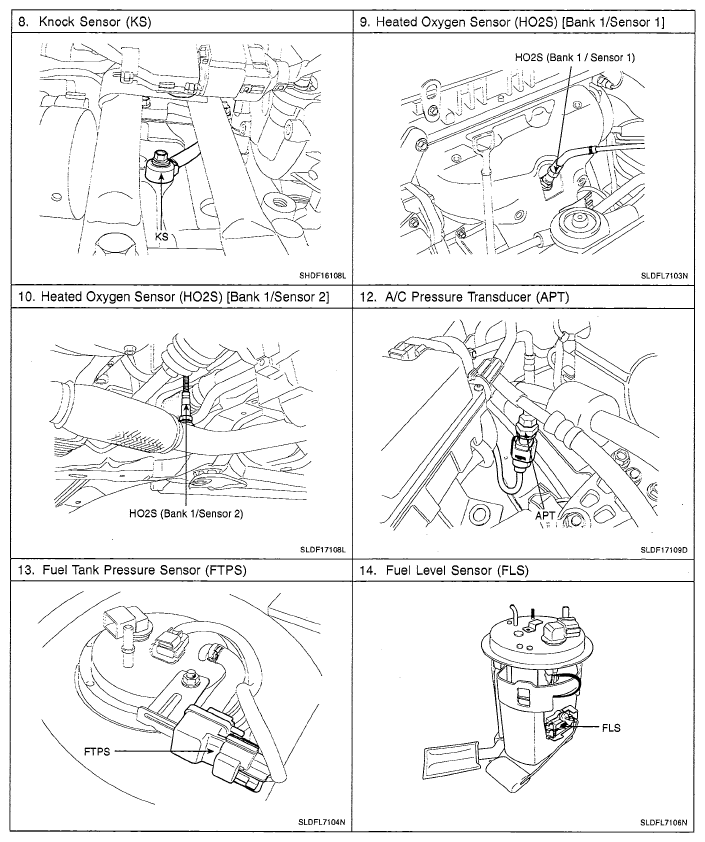

Fig 3: Identifying Fuel System Components Location (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

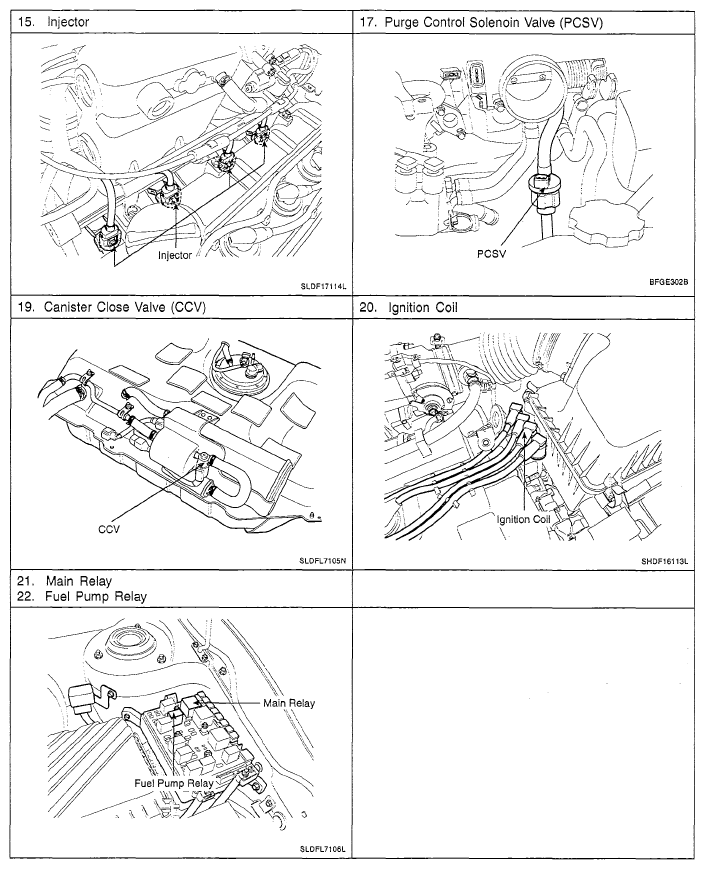

Fig 4: Identifying Fuel System Components Location (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
