ECM Problem Inspection Procedure: Replacement

1. Turn ignition switch off.
2. Disconnect the battery (-) cable from the battery.
3. Disconnect the ECM connector(s) (A).

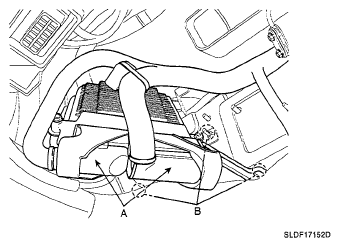

   Fig 1: Identifying ECM Connector And ECM Mounting Bolts/Nuts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Unscrew the ECM mounting bolts/nuts (B) and remove the ECM from the air cleaner assembly.
5. Install a new ECM.

ECM mounting bolts: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lbf.ft)
