Spectra5 2.0 1, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Gasoline Engine Control System
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Inspection
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

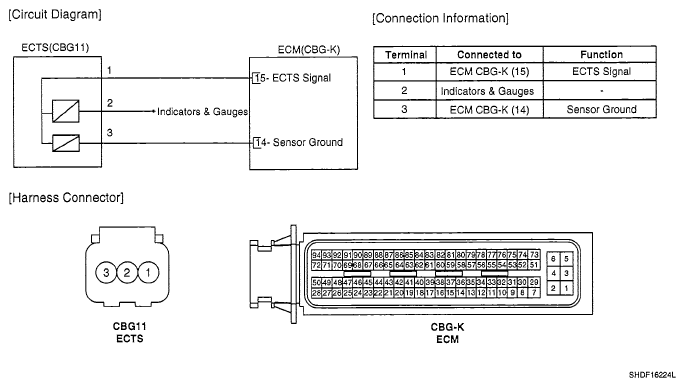

Fig 1: Engine Coolant Temperature Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
