Ignition Systems: General: Specifications

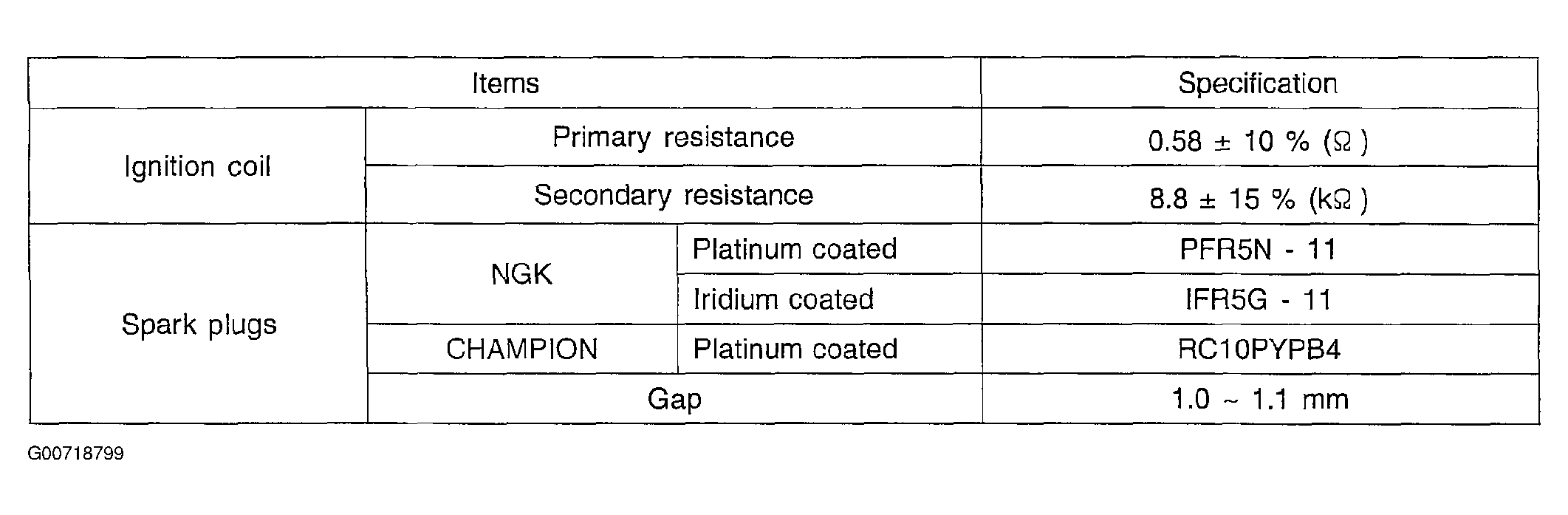

Fig 1: Ignition System Specification Chart

G00718799

Courtesy of KIA MOTORS AMERICA, INC.
