Schematic Diagram

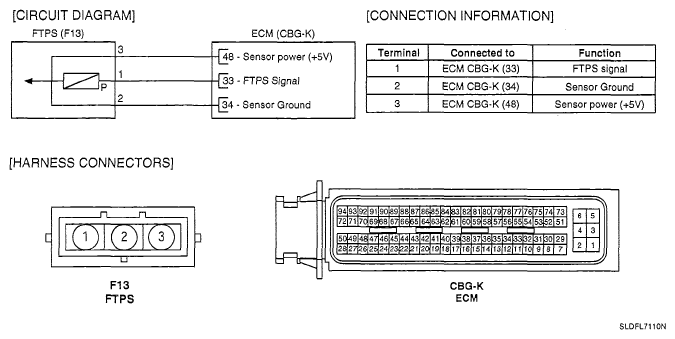

Fig 1: Fuel Tank Pressure Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
