Inspect Spark Plug Cable

  1. Carefully remove the spark plug cable by pulling on the rubber boots (A). Check the condition of the spark plug cable terminals (B). If any terminal has surface corrosion, clean it off, and if it is broken or distorted, replace the spark plug cable.

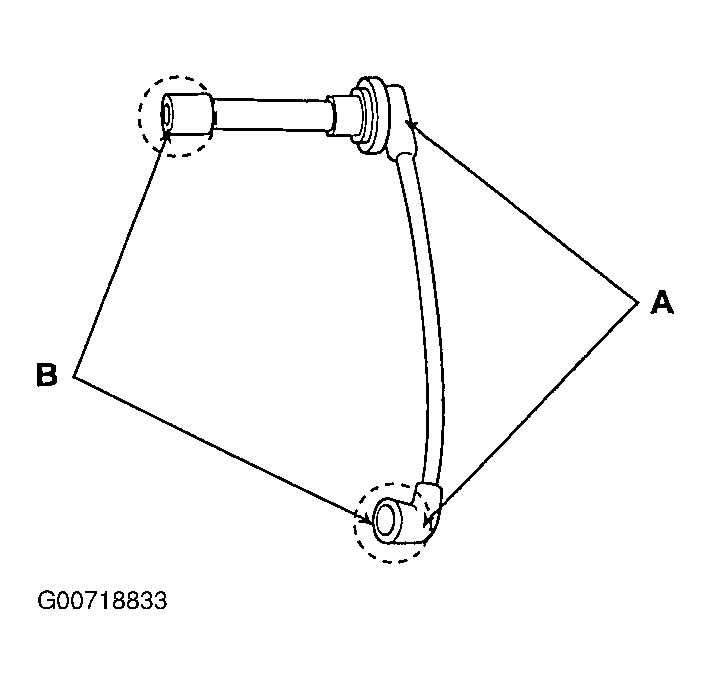

    Fig 1: Inspecting Spark Plug Cable
    G00718833Courtesy of KIA MOTORS AMERICA, INC.
  2. Connect the ohmmeter probes and measure resistance.

    RESISTANCE : 5.6 kΩ /m +/- 20%

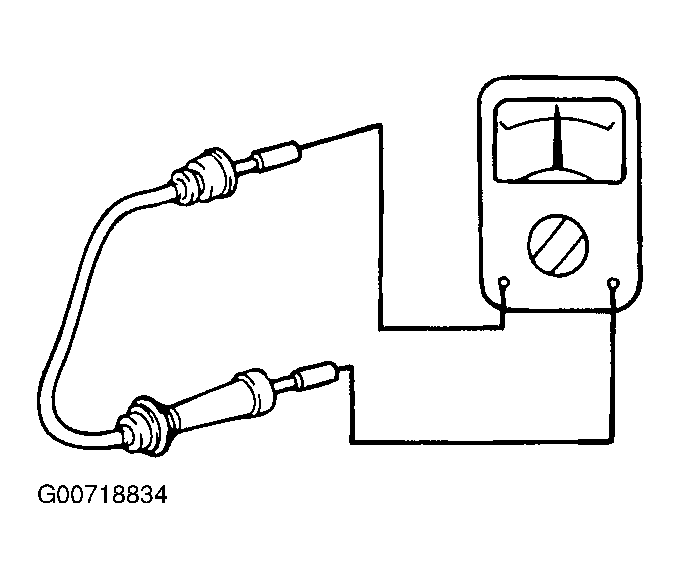

    Fig 2: Measuring Spark Plug Cable Resistance
    G00718834Courtesy of KIA MOTORS AMERICA, INC.
  3. Resistance should not be higher than 10 kΩ/m. If resistance is higher, replace the cable.
