Engine Control System - Fuel System (G6EA-GSL 2.7L)
>>
Accelerator Position Sensor (APS)
>>
Inspection
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

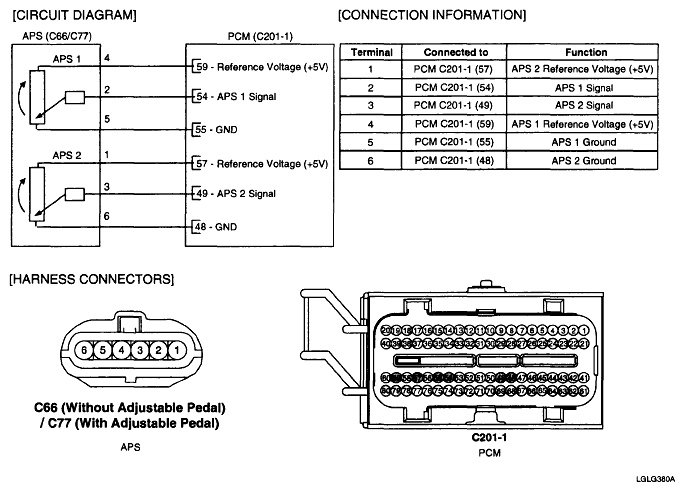

Fig 1: Accelerator Position Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
