Wave Form

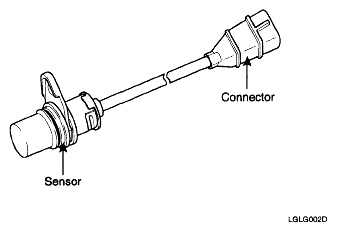

Fig 1: Identifying Crankshaft Position Sensor
G04804485Courtesy of KIA MOTORS AMERICA, INC.

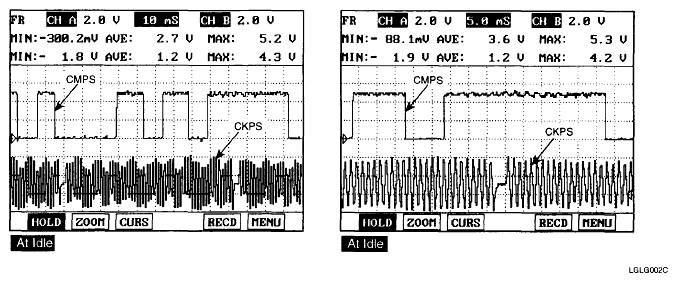

Fig 2: Wave Form Graphs
G04804483Courtesy of KIA MOTORS AMERICA, INC.
