Spark Plug: Service and Repair

INSPECT SPARK PLUG
1. Remove the ignition coil connector(A).




2. Remove the ignition coil(A).





NOTE:

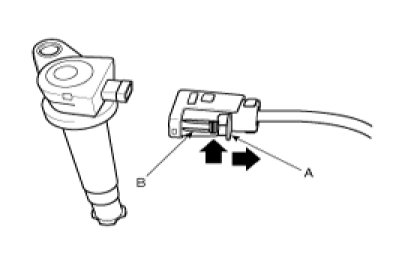

When removing the ignition coil connector, pull the lock pin(A) and push the clip(B).




3. Using a spark plug socket, remove the spark plug.

CAUTION:
Be careful that no contaminants enter through the spark plug holes.

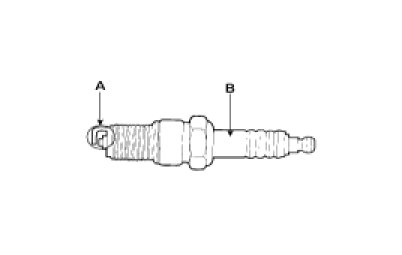

4. Inspect the electrodes (A) and ceramic insulator (B).

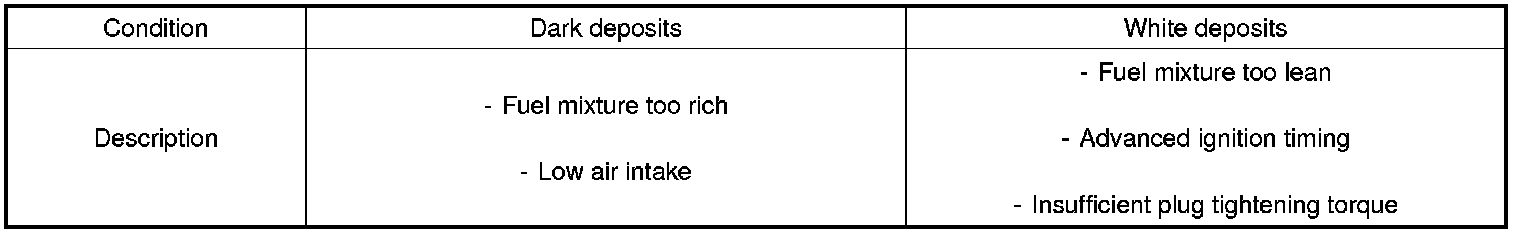

INSPECTION OF ELECTRODES

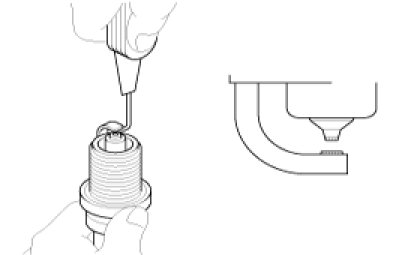

5. Check the electrode gap (A).

Standard : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
