Cylinder Head

Cylinder Head Torque and Sequence
Install cylinder head bolts.
1) Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

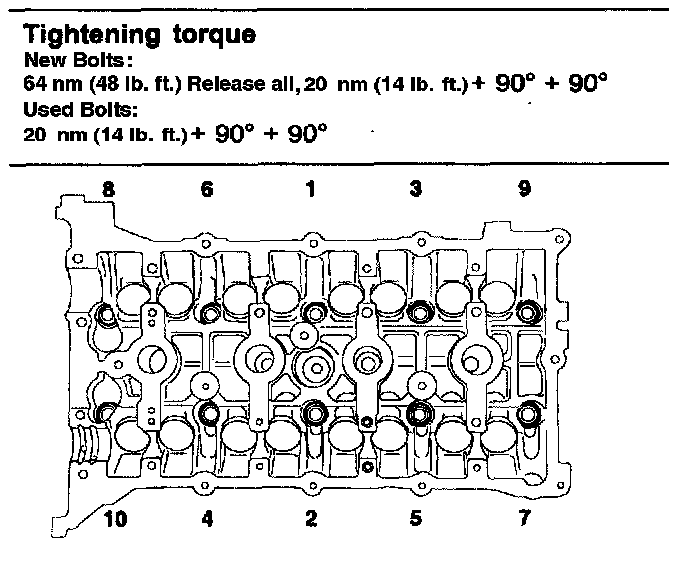

2) Using triple square hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.
