Starting and Charging: Specifications

SPECIFICATION

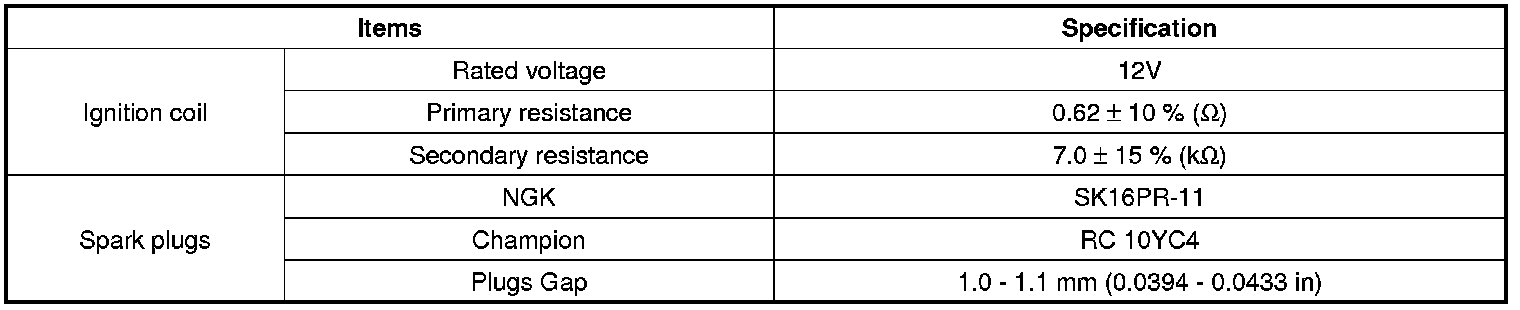

IGNITION SYSTEM

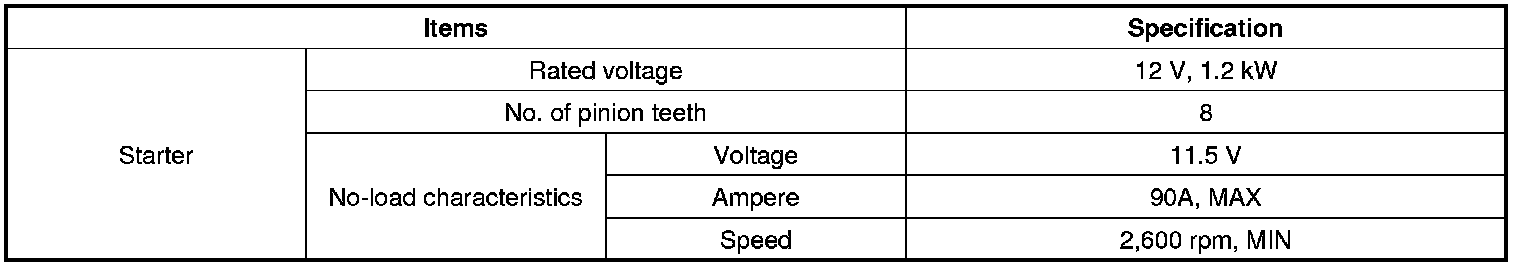

STARTING SYSTEM

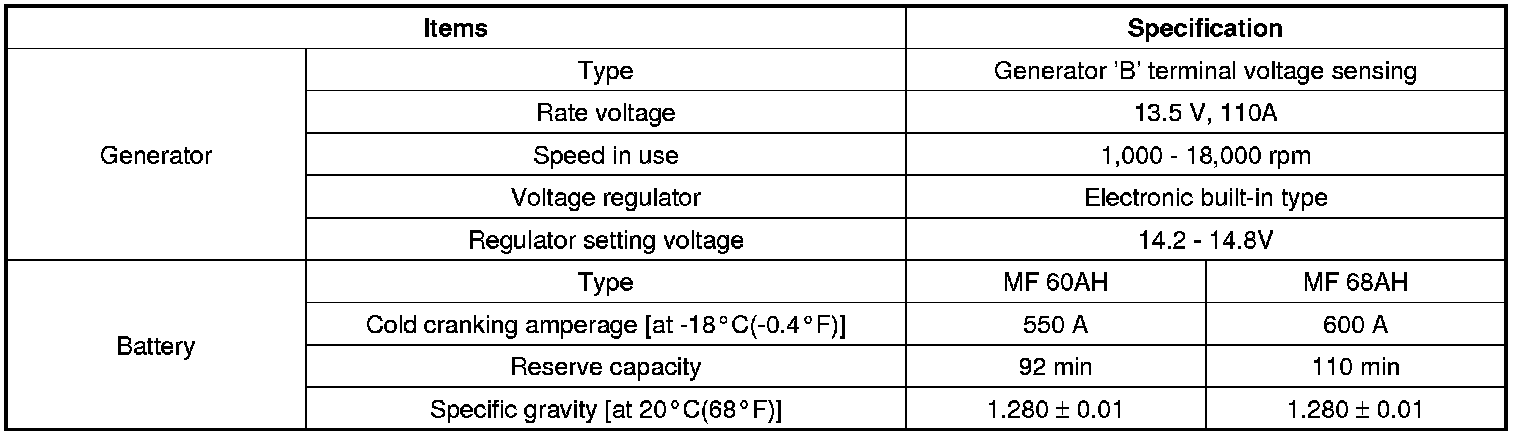

CHARGING SYSTEM






NOTE:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
