Power Window Relay: Testing and Inspection

INSPECTION

1. Disconnect the negative (-) battery terminal.

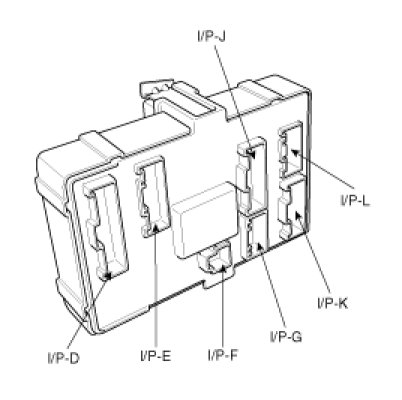

2. Remove the junction box.
3. Check for continuity between the terminals.

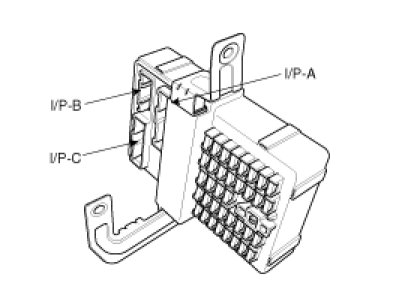

4. There should be continuity between the No.1 in the I/P-G connector and No.12 terminal in the I/P-A connector when power and ground are connected to the No.1 terminal in the I/P-G connector and No.2 terminal in the I/P-A connector.
5. There should be no continuity between the No.1 terminal in the I/P-G connector and No.12 terminal in the I/P-A connector when power is disconnected.
