Pinout Values and Diagnostic Parameters

POWERTRAIN CONTROL MODULE (PCM)

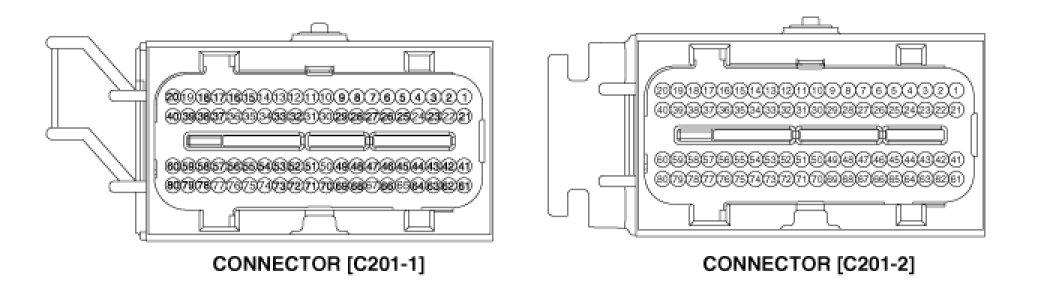

1. HARNESS CONNECTOR

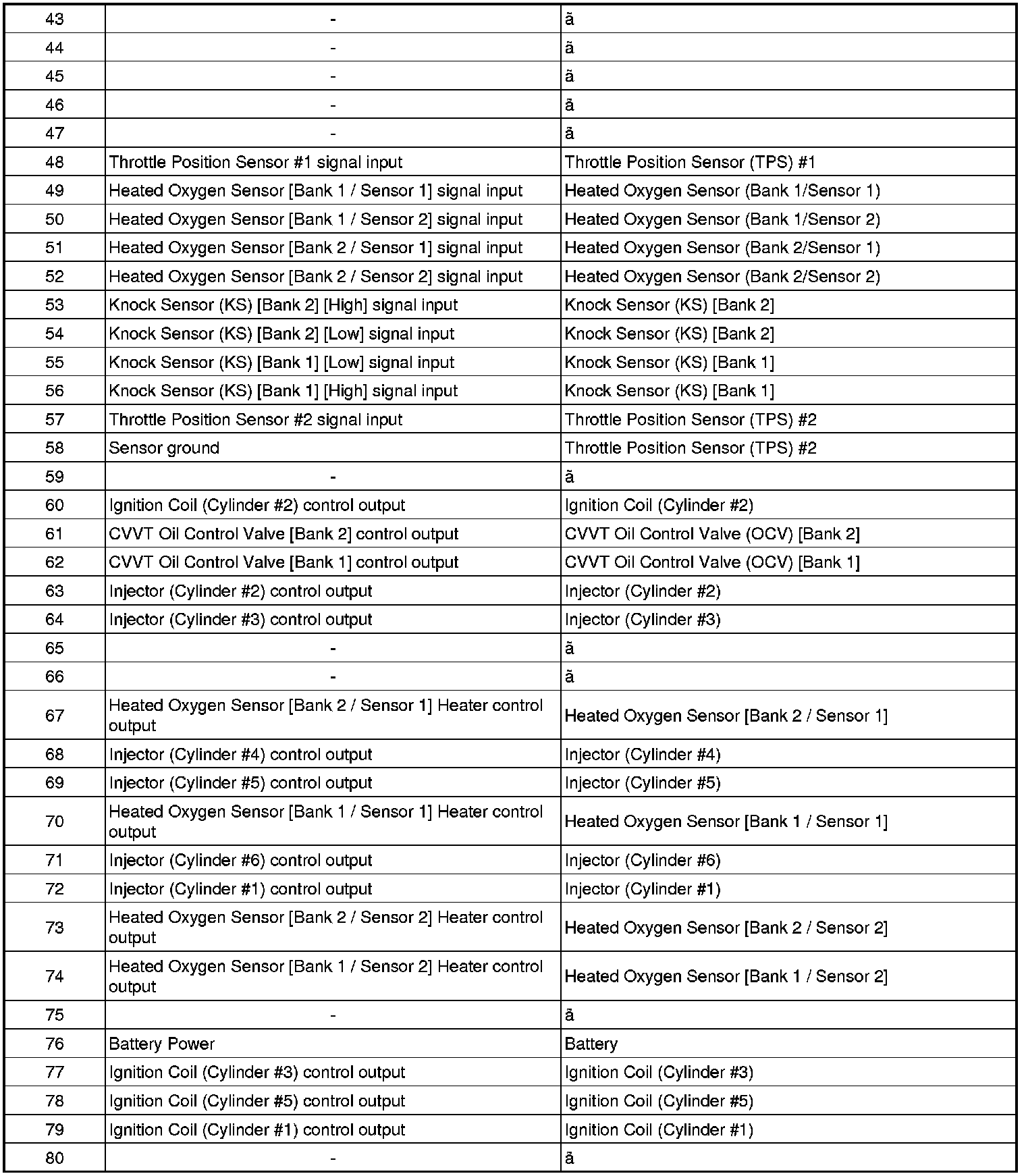

2. TERMINAL FUNCTION

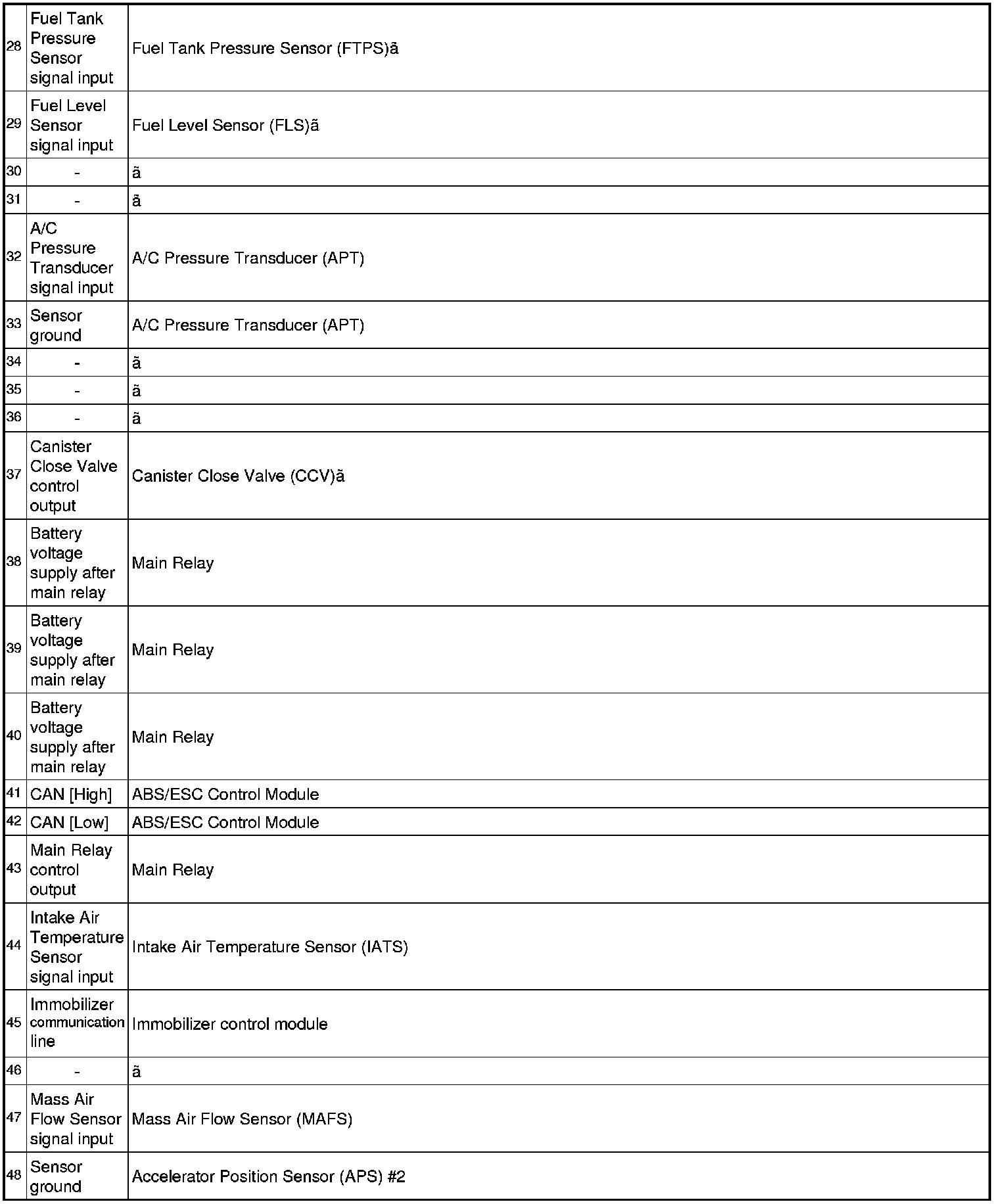

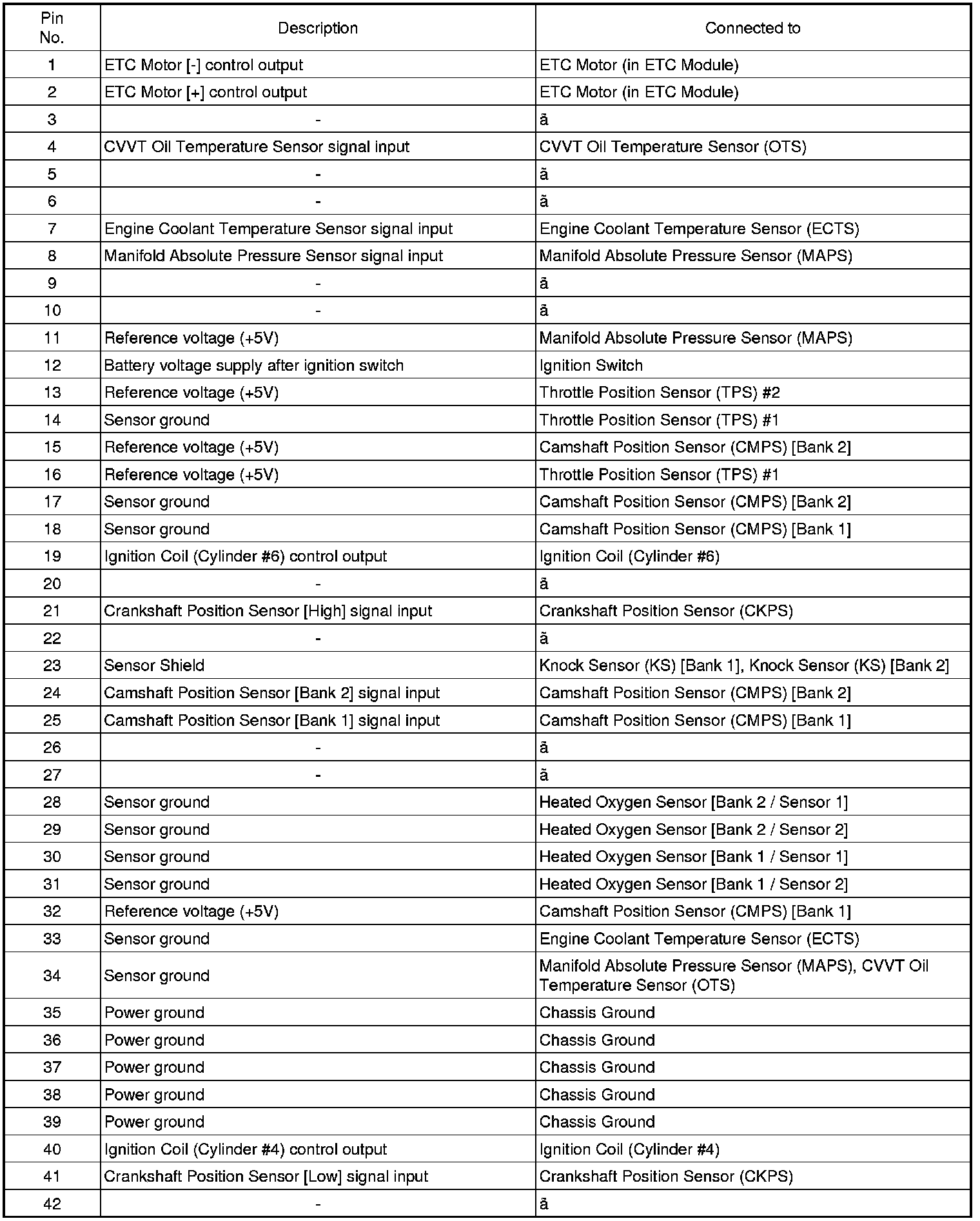

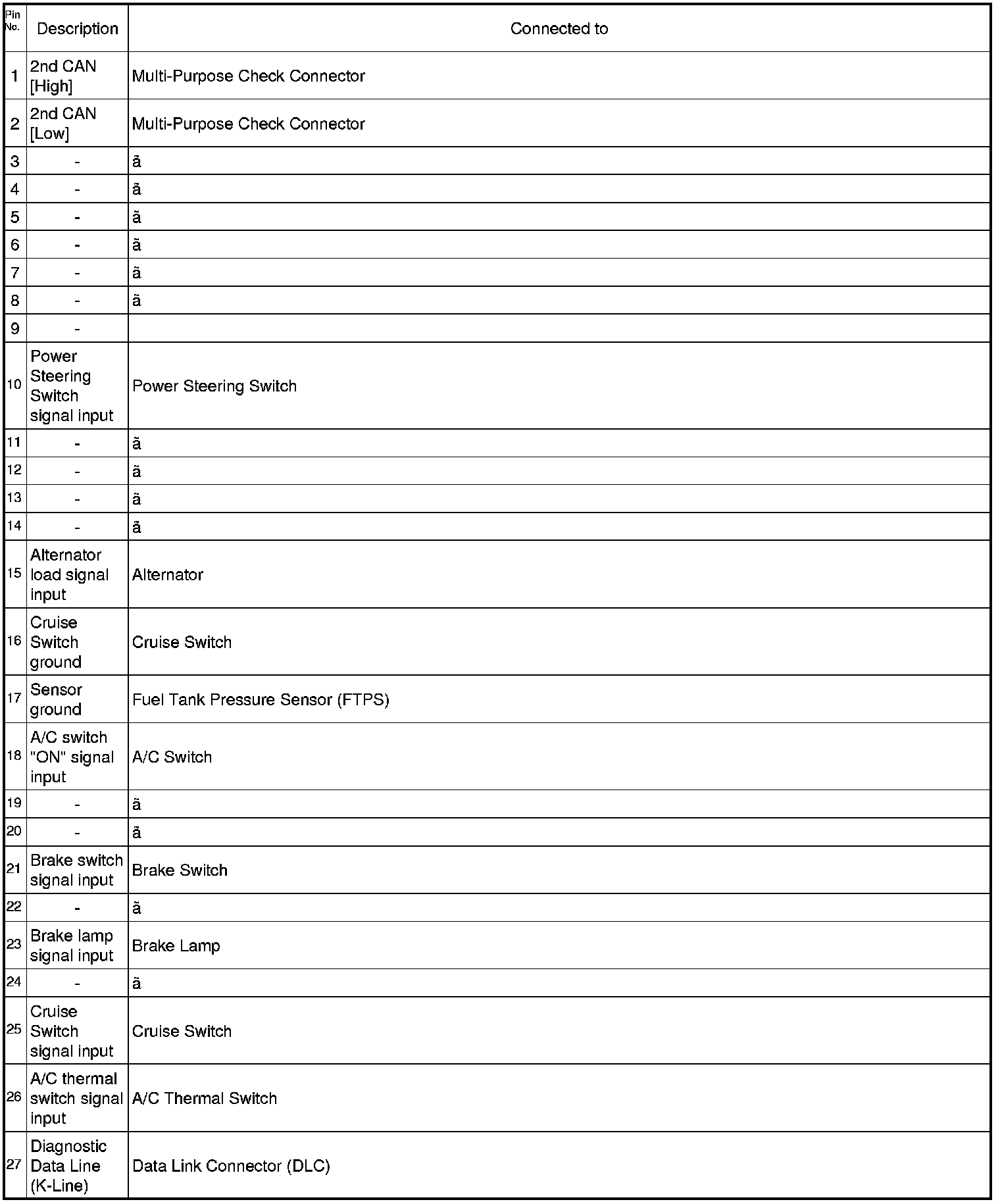

CONNECTOR [C201-1]

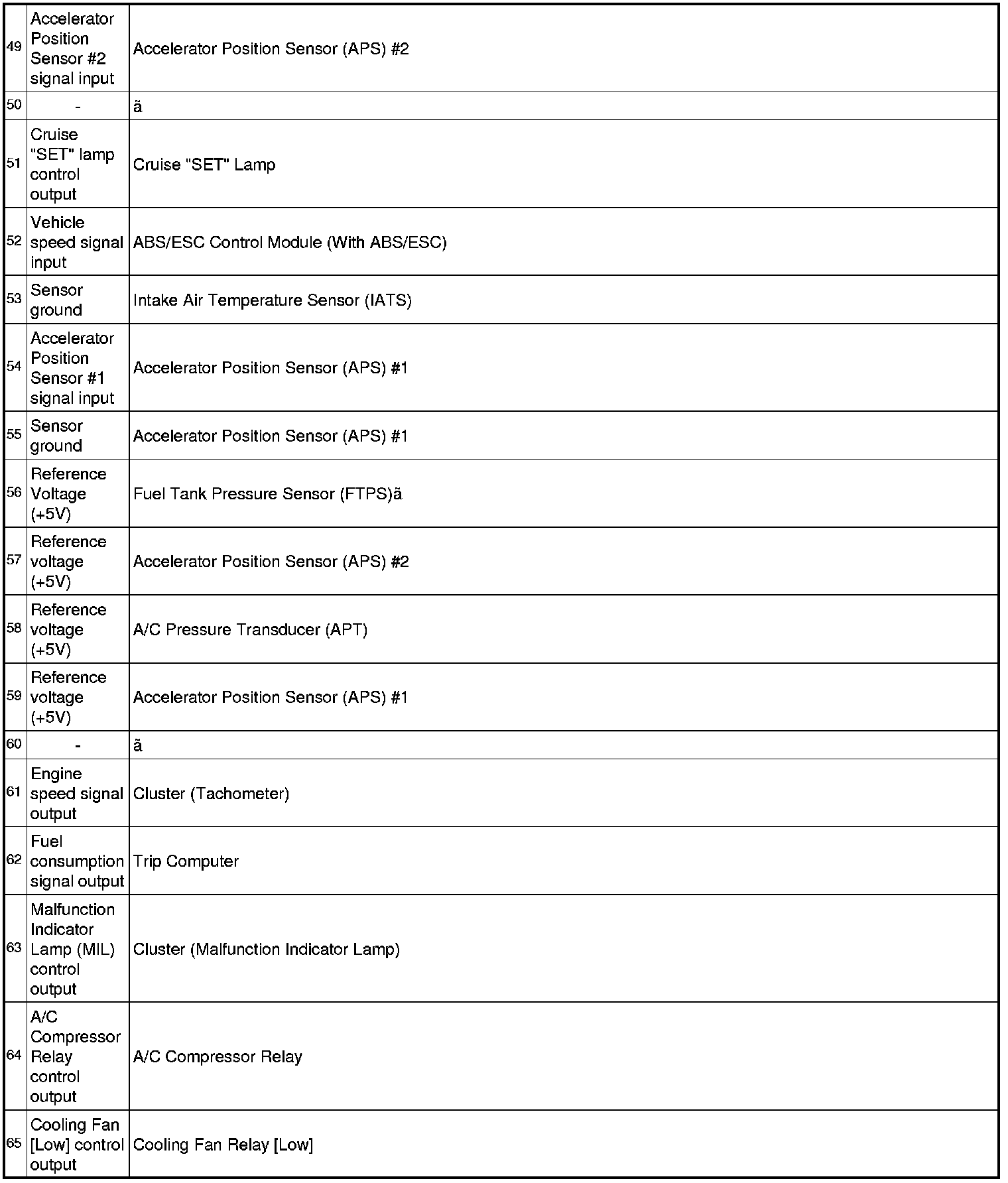

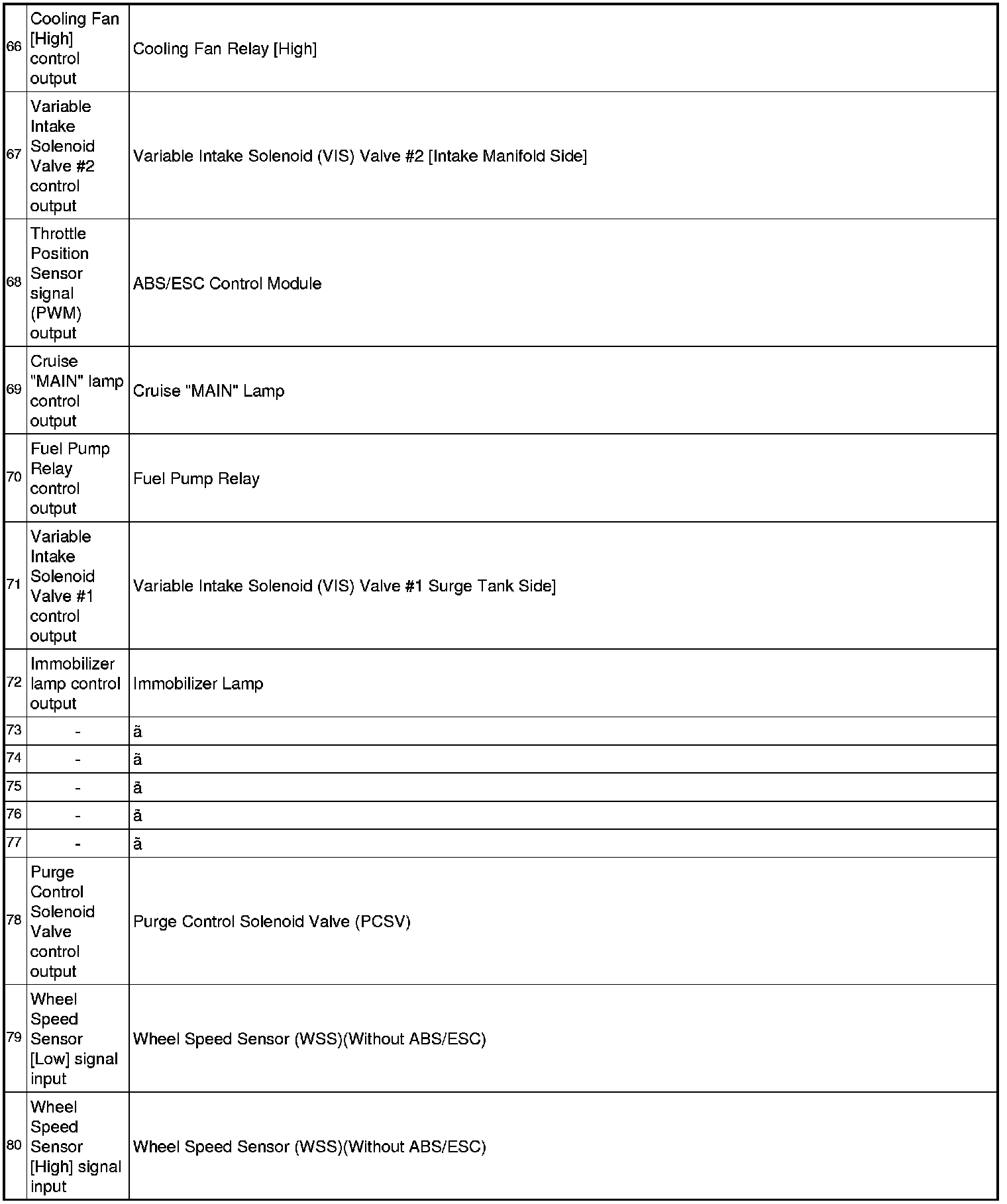

CONNECTOR [C201-2]

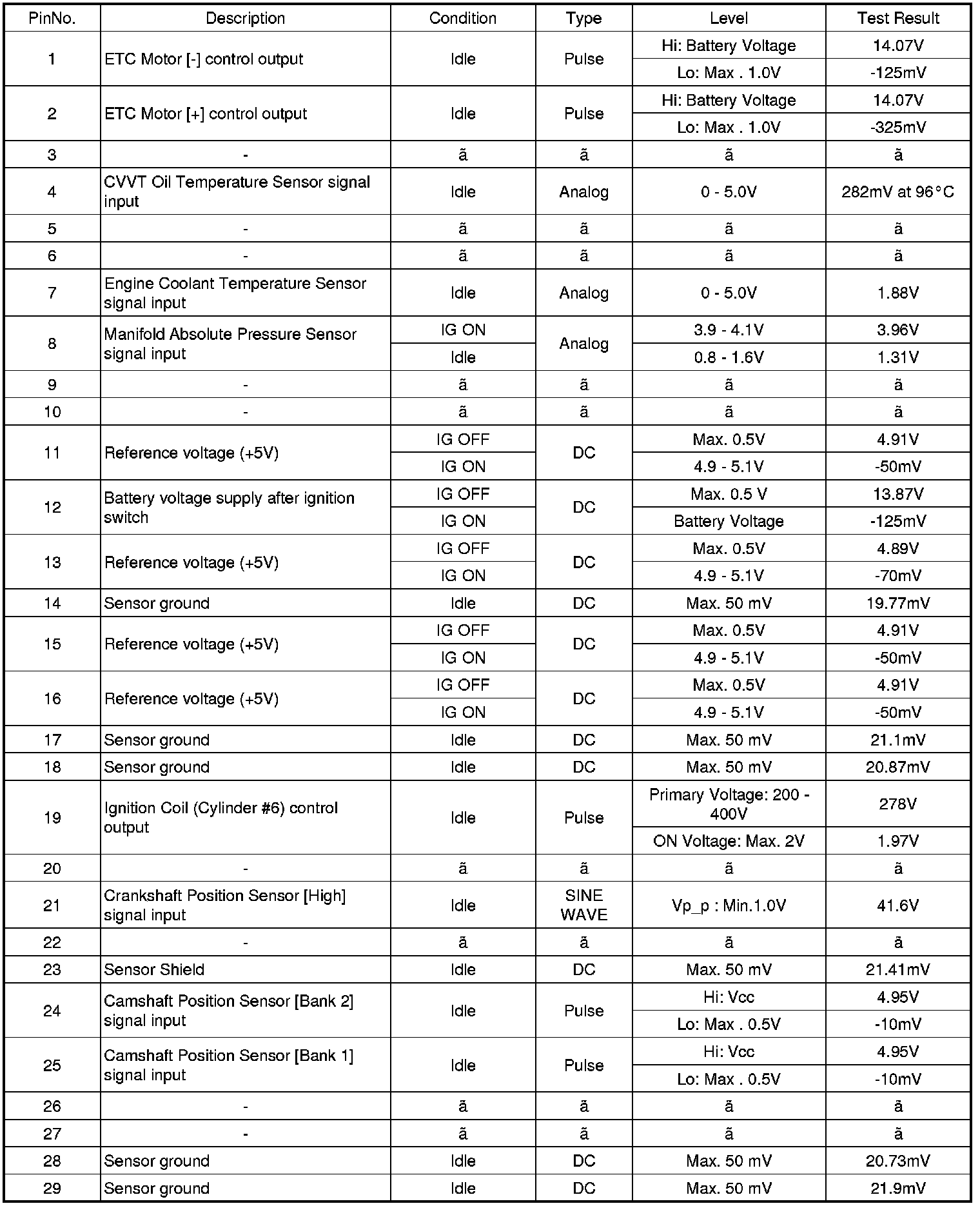

3. TERMINAL INPUT/OUTPUT SIGNAL

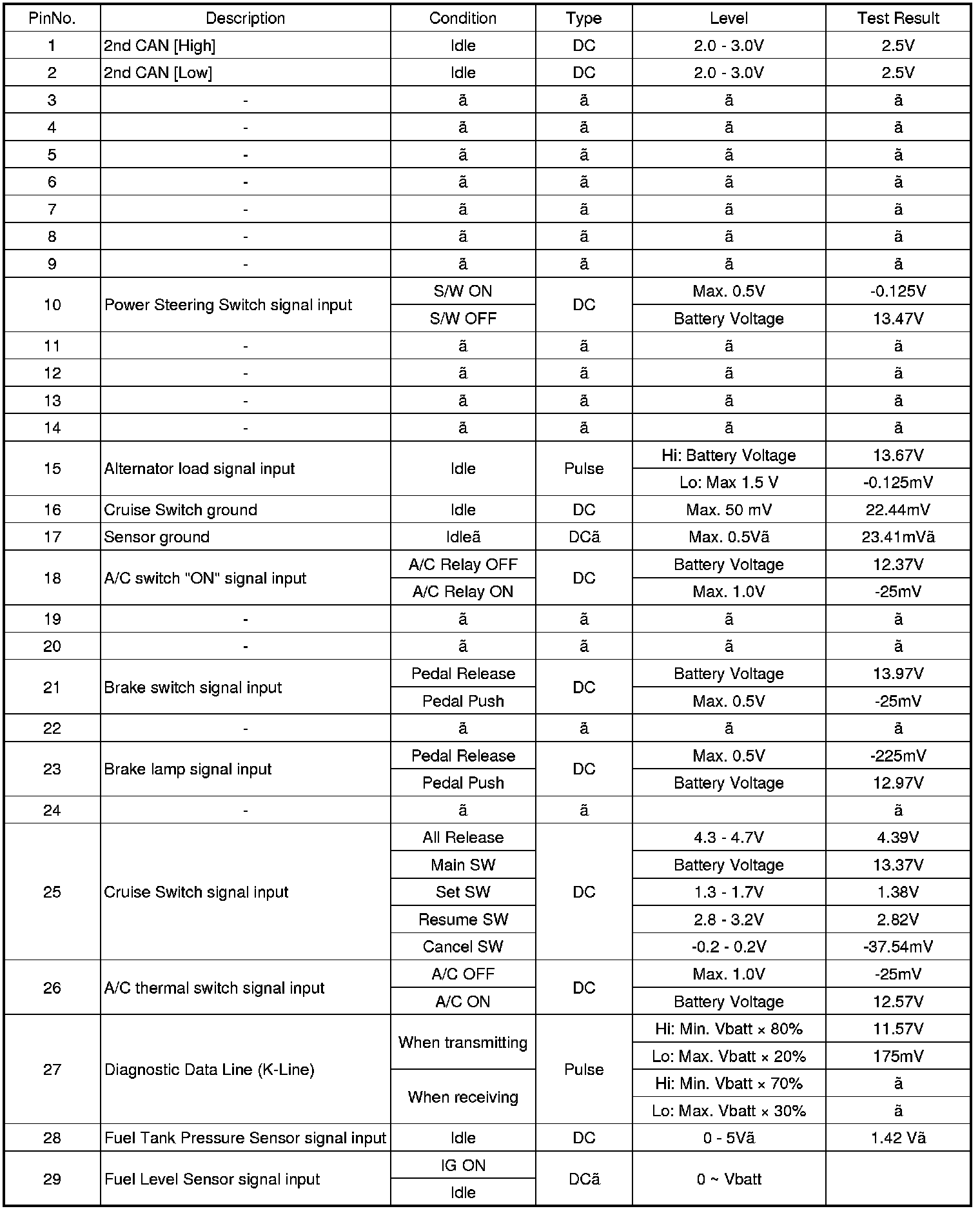

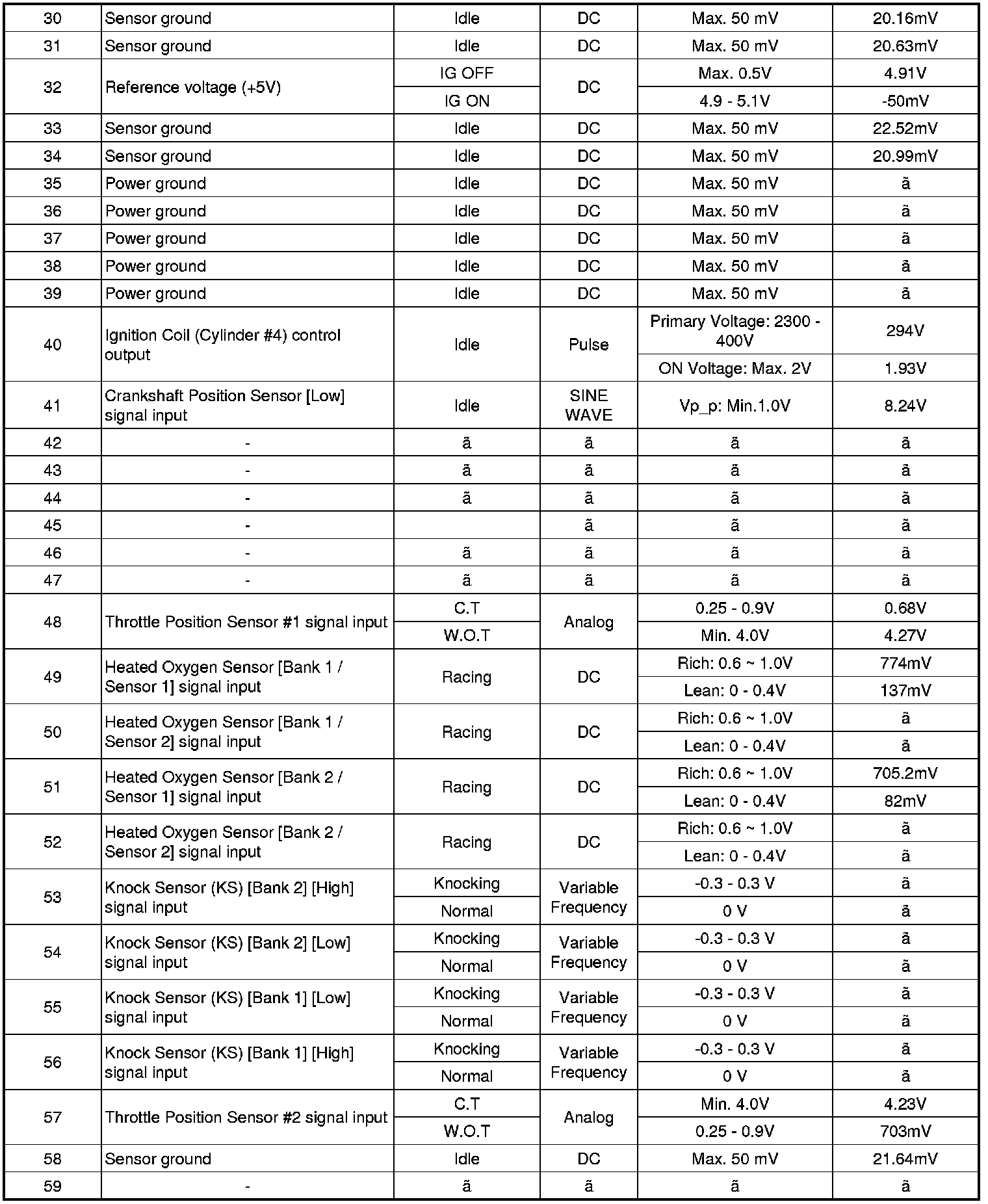

CONNECTOR [C201-1]

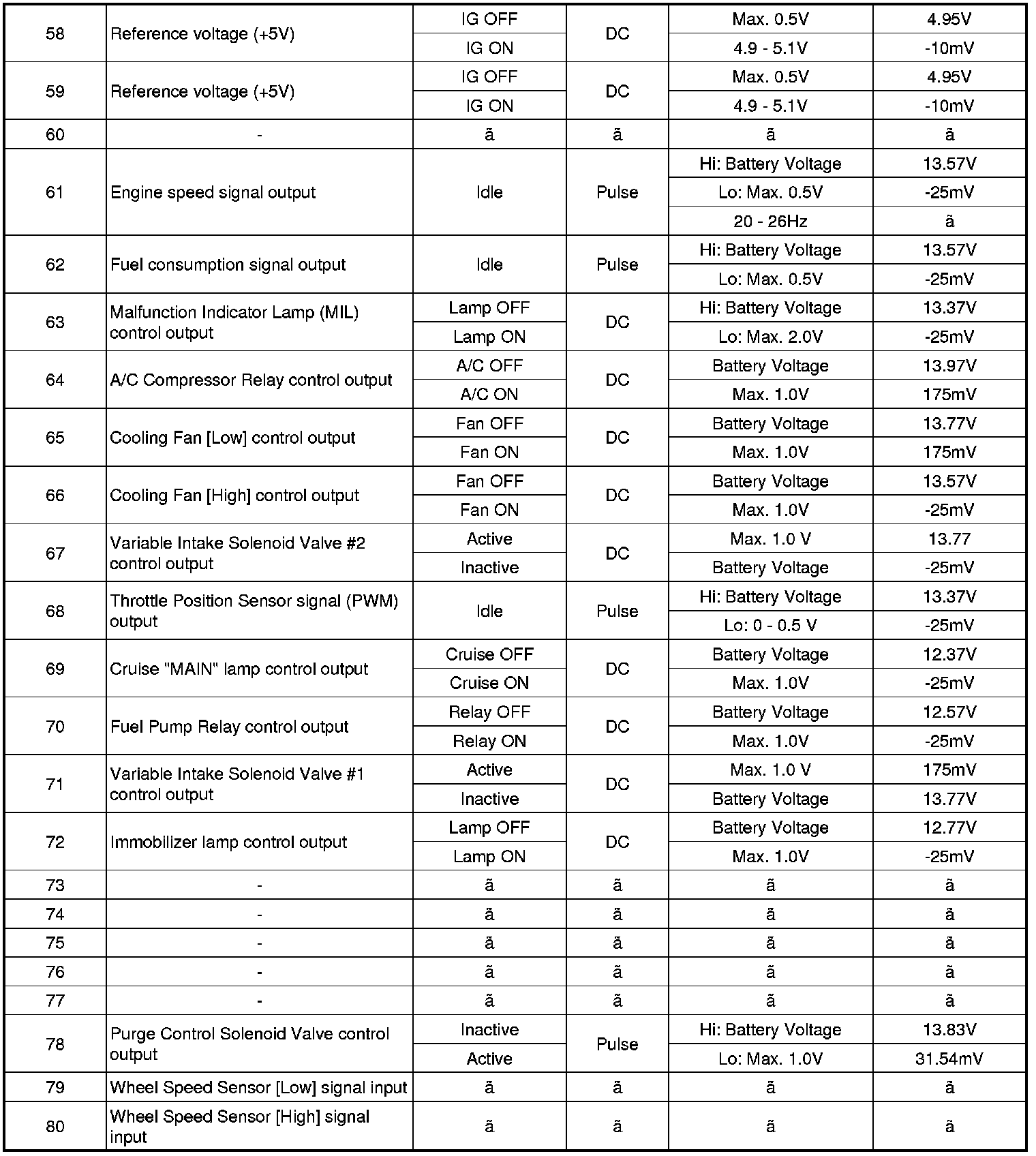

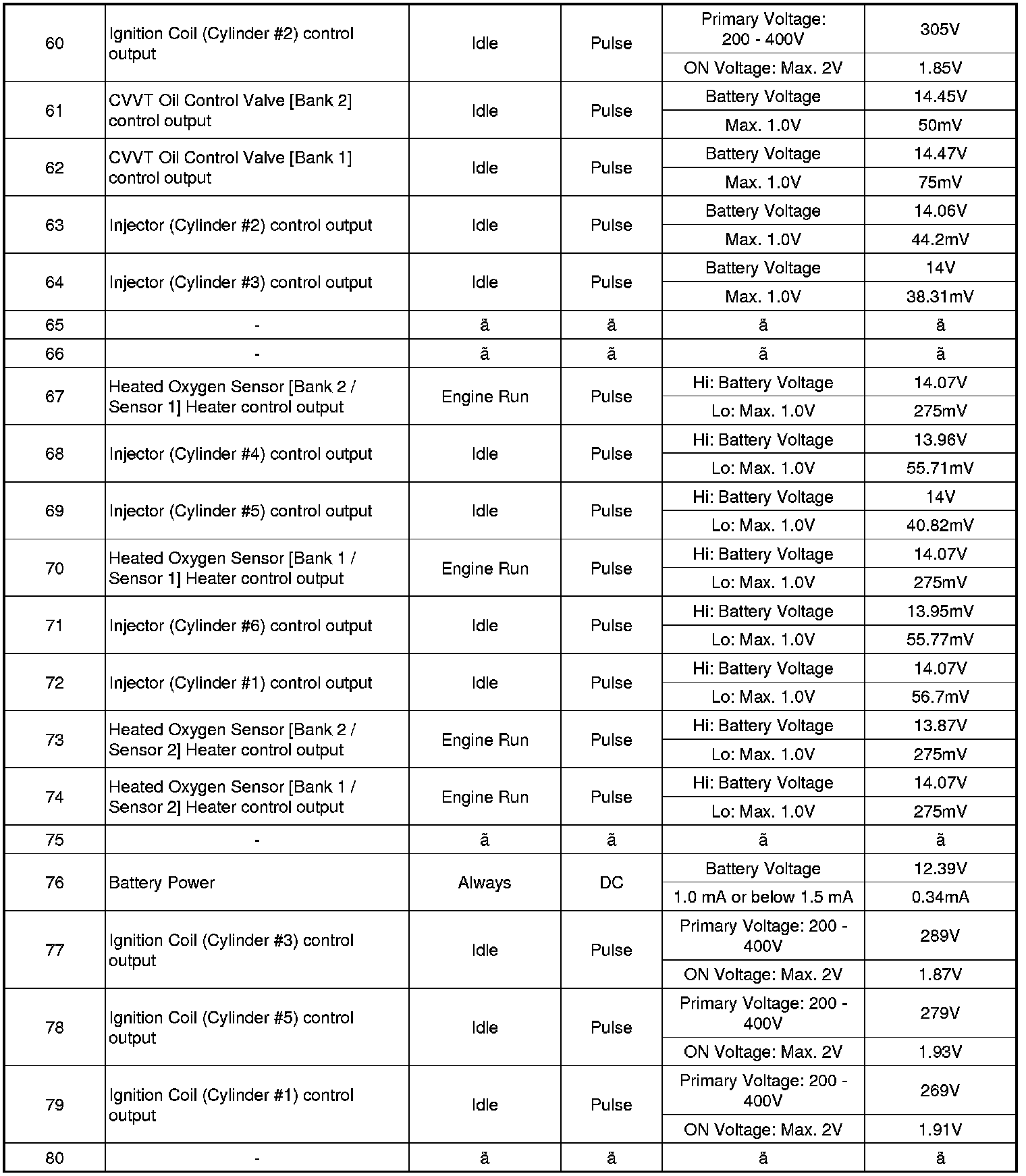

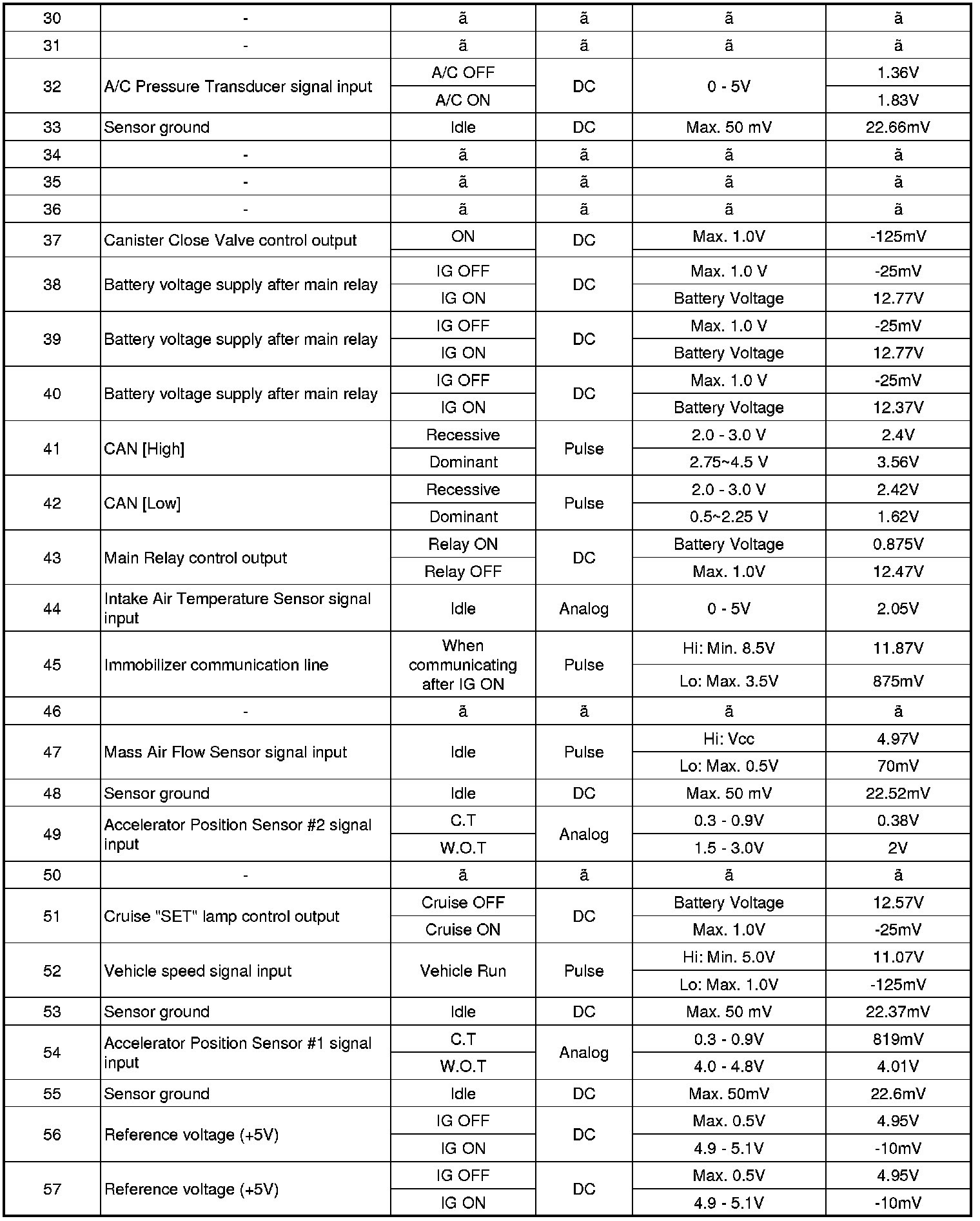

CONNECTOR [C201-2]
