Ignition Coil: Testing and Inspection

INSPECT IGNITION COIL

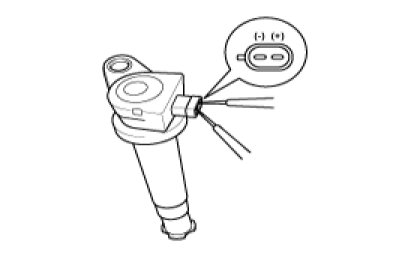

1. Measure the primary coil resistance between terminals (+) and (-).

Standard : 0.715 ± 15%Ohms





NOTE:
Measure the resistance between the terminals No.1 and No.3.
