Throttle Position Sensor

THROTTLE POSITION SENSOR (TPS)

- Type: Variable resistor type

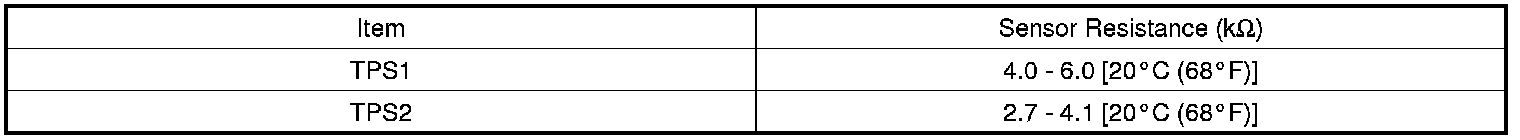

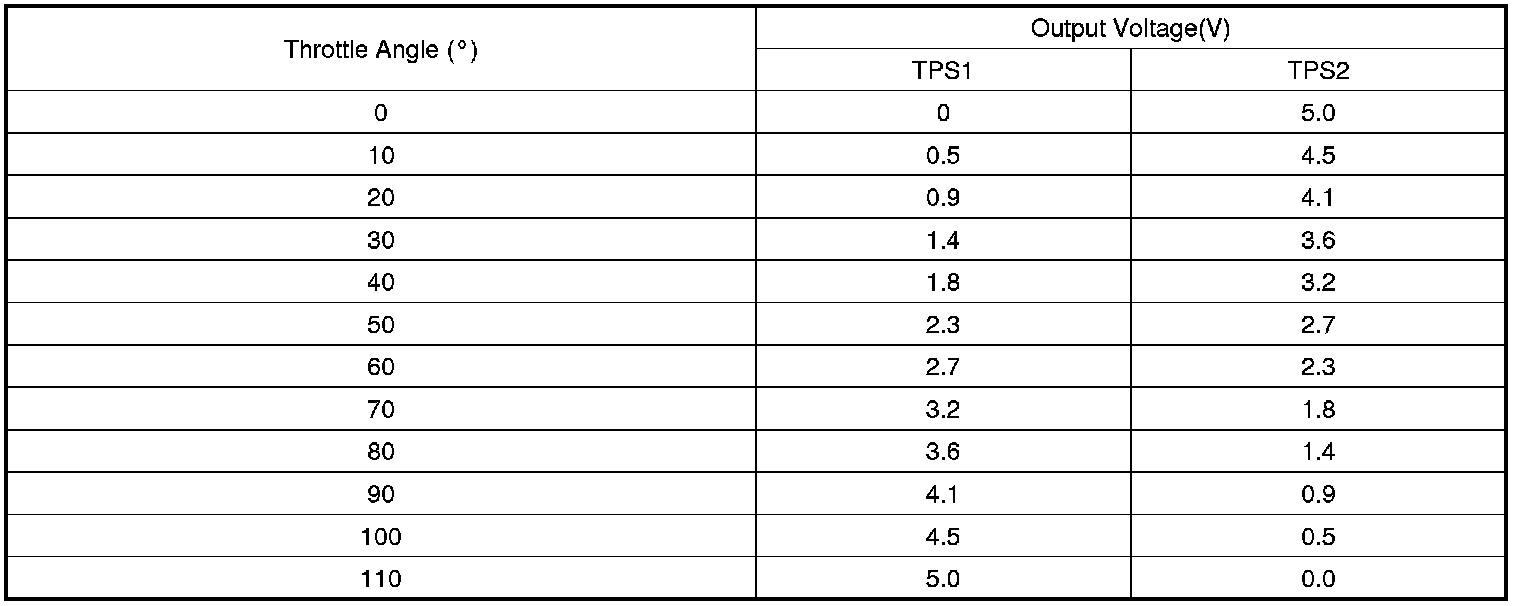

- Specification (When reference voltage = 5.0V)
