Camshaft Bearing Cap

Camshaft Bearing Cap

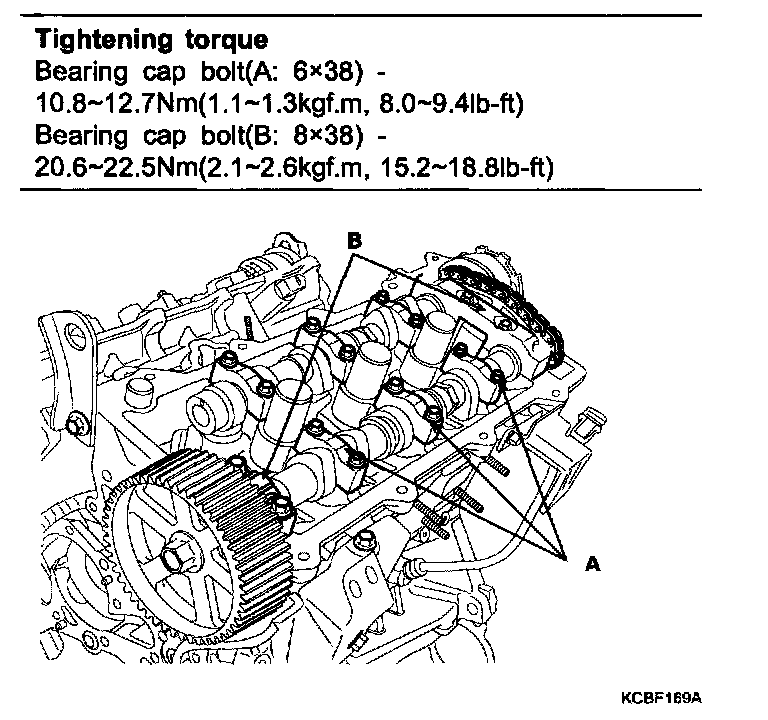

Install the camshaft bearing caps.





NOTE: When installing the bearing caps, check the marks on them as shown and install them in its proper position.

A (LH/RH HEAD): L (LH), R (RH)
B (Intake/Exhaust): I (Intake), E (Exhaust)
C (Cap no.): 1, 2, 3

CAUTION: When installing the bearing caps, turn the crankshaft to place a piston in the middle of the block because interference between valves and pistons can occur.
